Wheel Studs: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

C-Frame and Screw Assembly
211-023 (T74P-3044-A1)

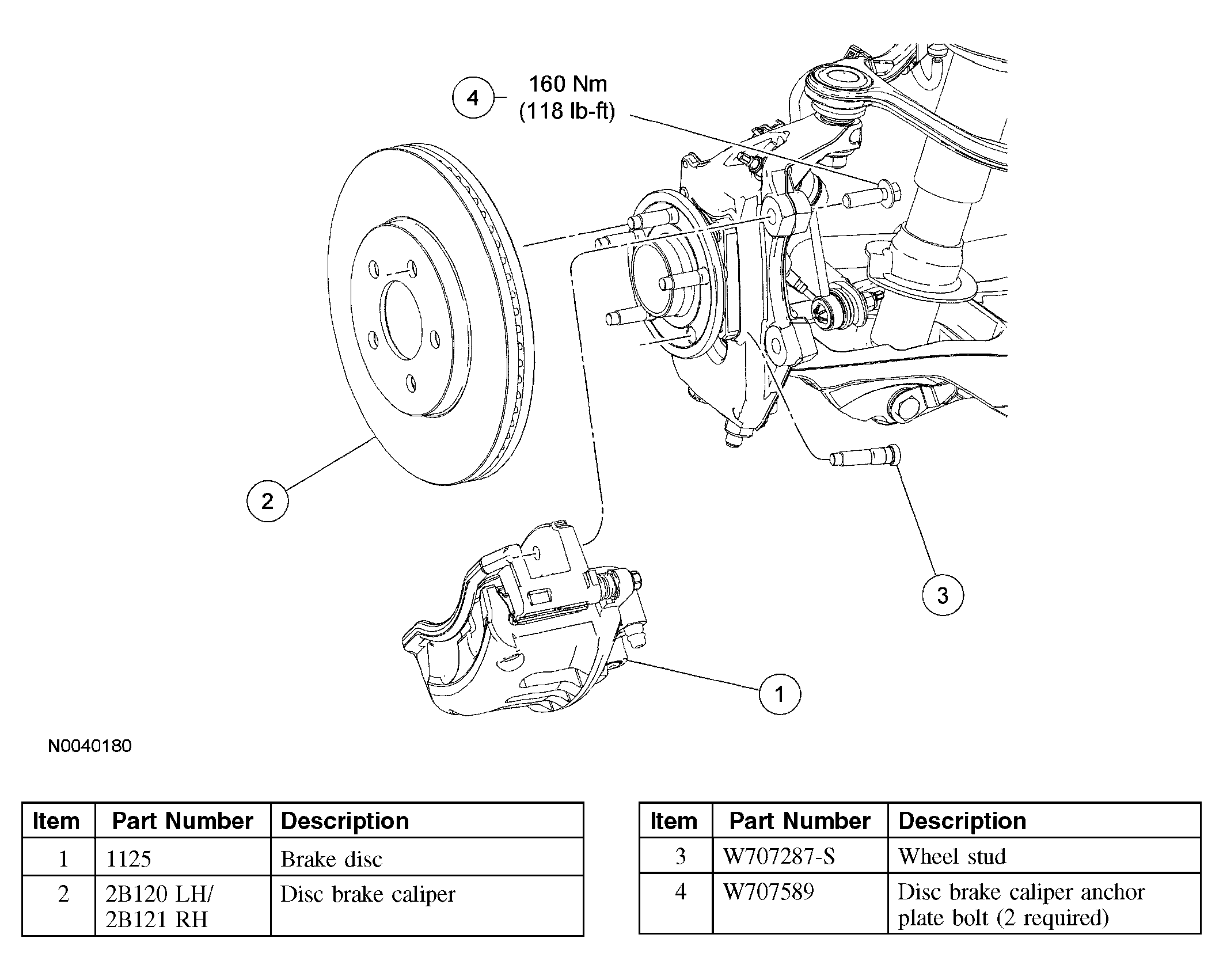

Fig 1: Removing/Installing Disc Brake Components

Courtesy of FORD MOTOR CO.
