Pinpoint Test L: Traction Control Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

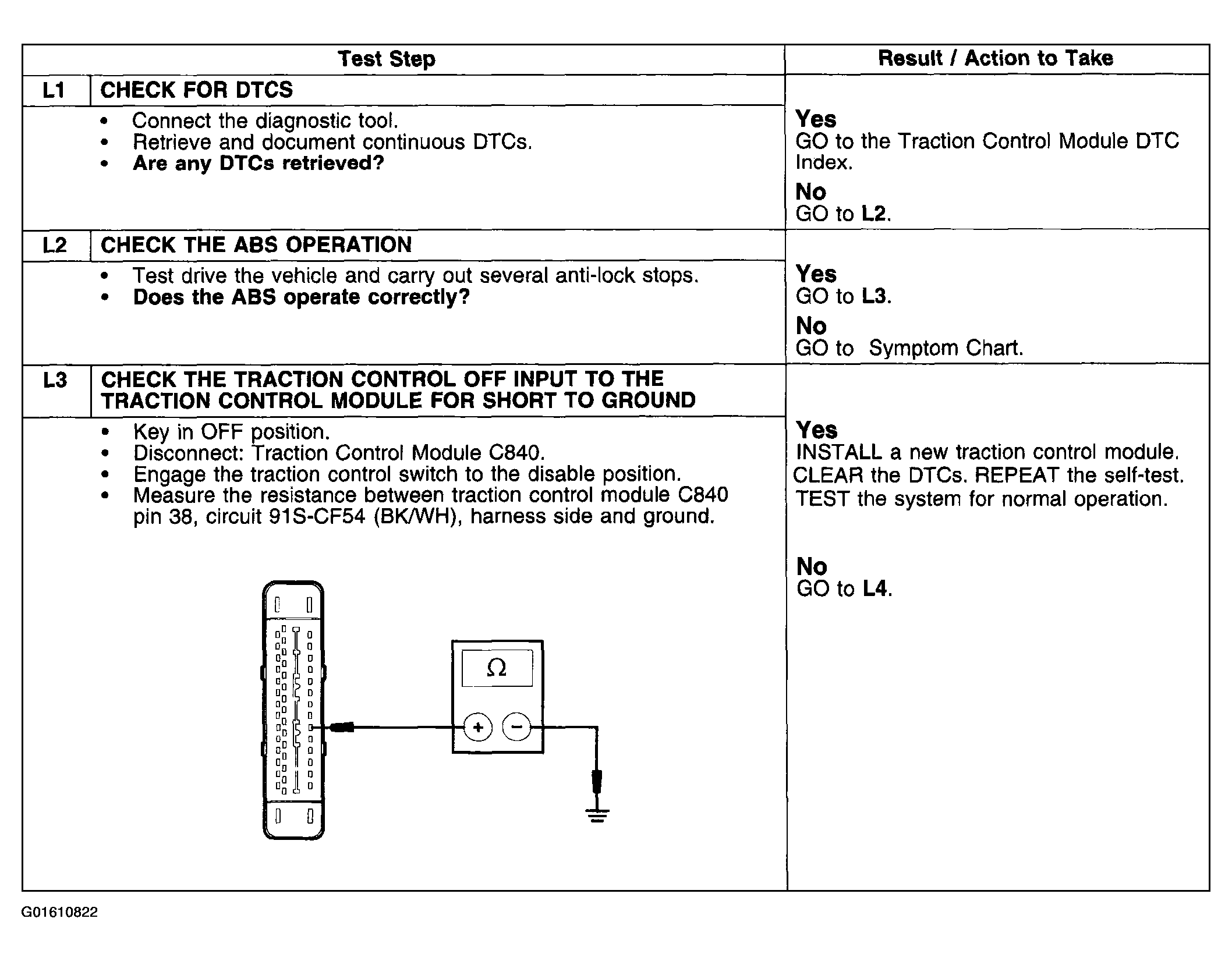

Fig 1: Pinpoint Test L: Traction Control Is Inoperative (L1-L3)

Courtesy of FORD MOTOR CO.

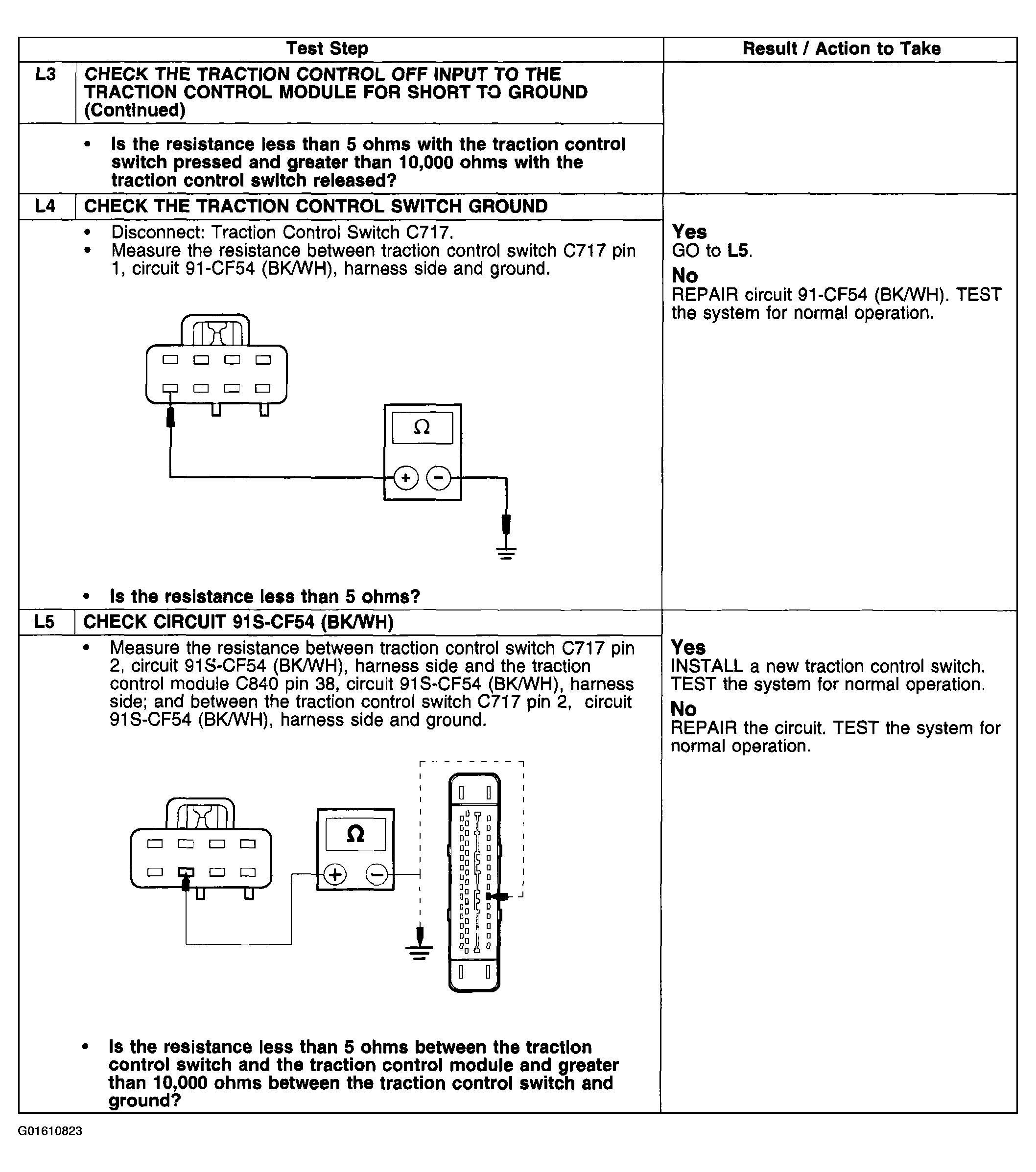

Fig 2: Pinpoint Test L: Traction Control Is Inoperative (L3 Cont.-L5)

Courtesy of FORD MOTOR CO.
