Section 317 (Engine-2.0L ZETEC): Specifications: Valves

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

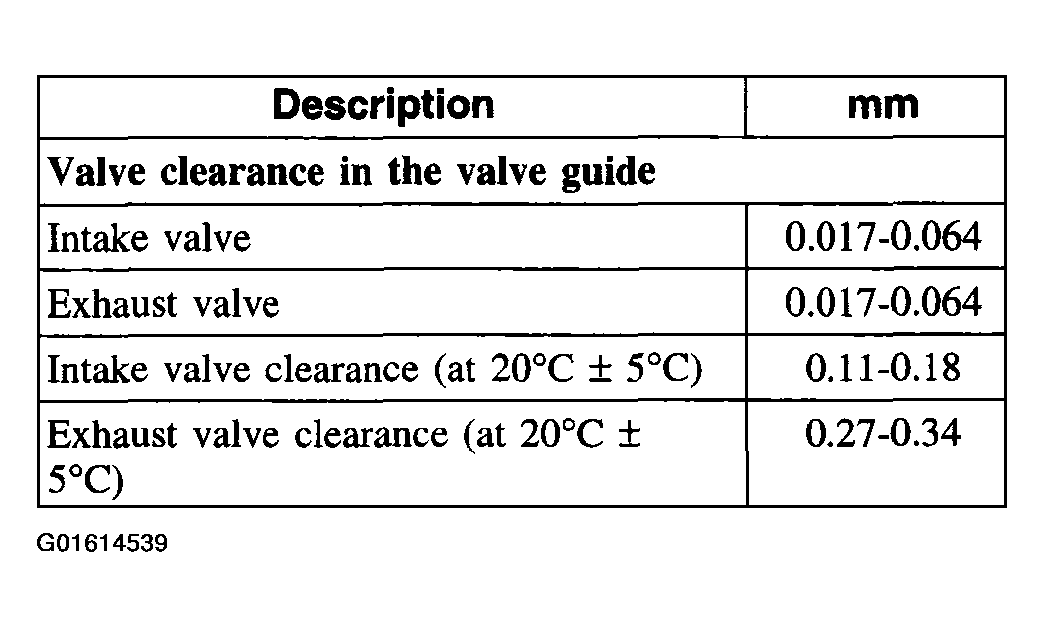

Fig 1: Valves Specification Chart
G01614539Courtesy of FORD MOTOR CO.
