Engine Mount - Lower: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to RIDING HEIGHT ADJUSTMENT .
  2. Remove the lower motor mount.
    1. Remove the two mount bolts.
    2. Remove the motor mount.

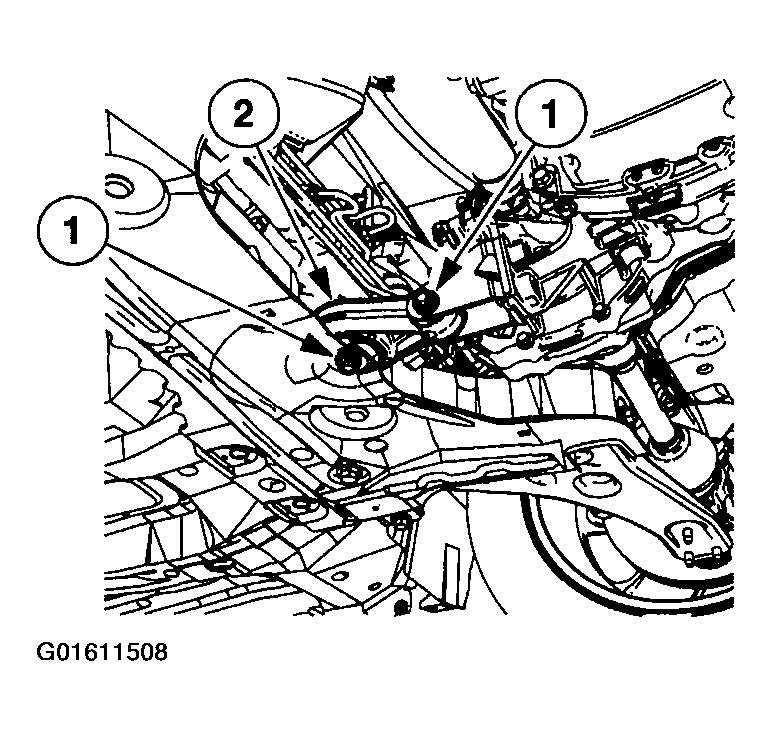

      Fig 1: Removing Lower Motor Mount Bolts
      G01611508Courtesy of FORD MOTOR CO.
