Torque Specifications

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

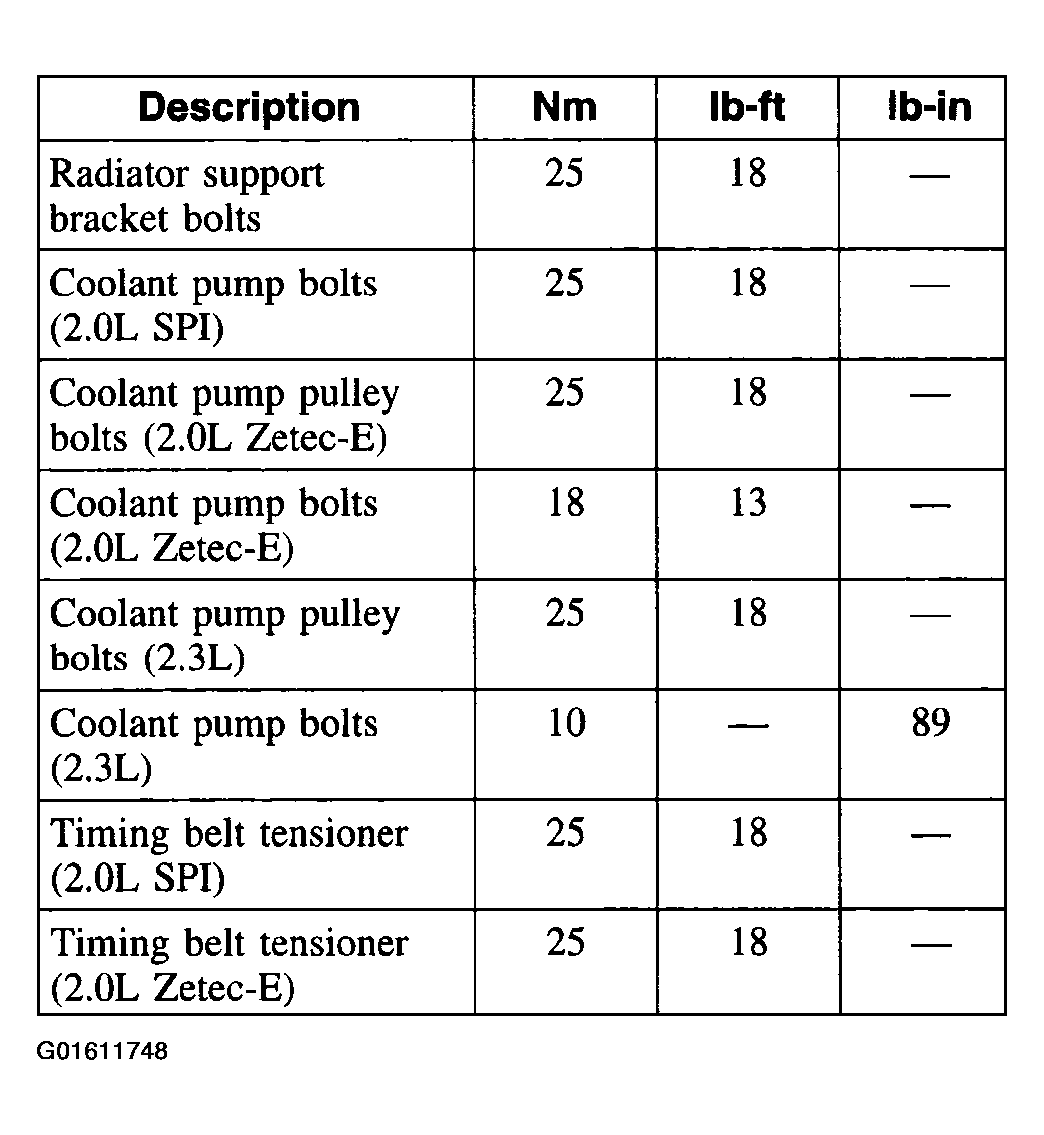

Fig 1: Engine Cooling Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

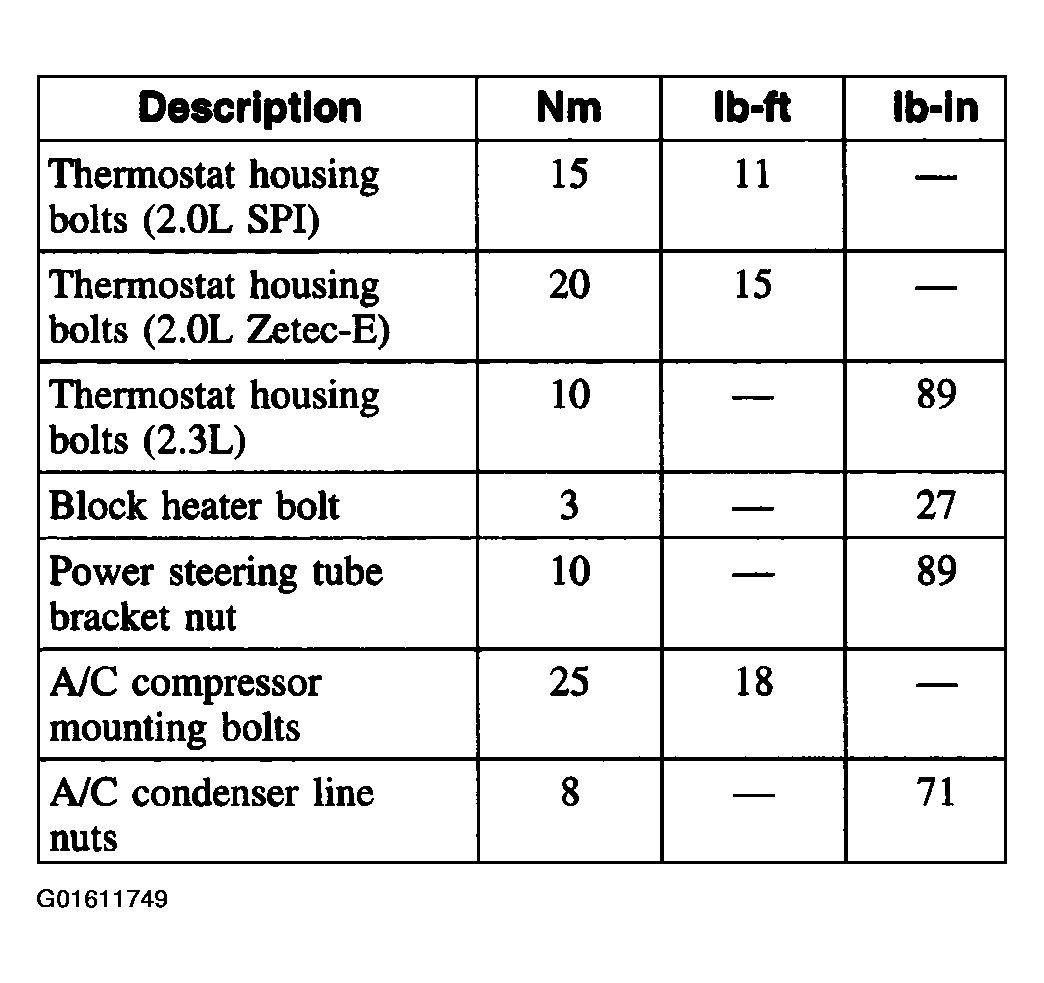

Fig 2: Engine Cooling Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.
