Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Climate Control System Symptom Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

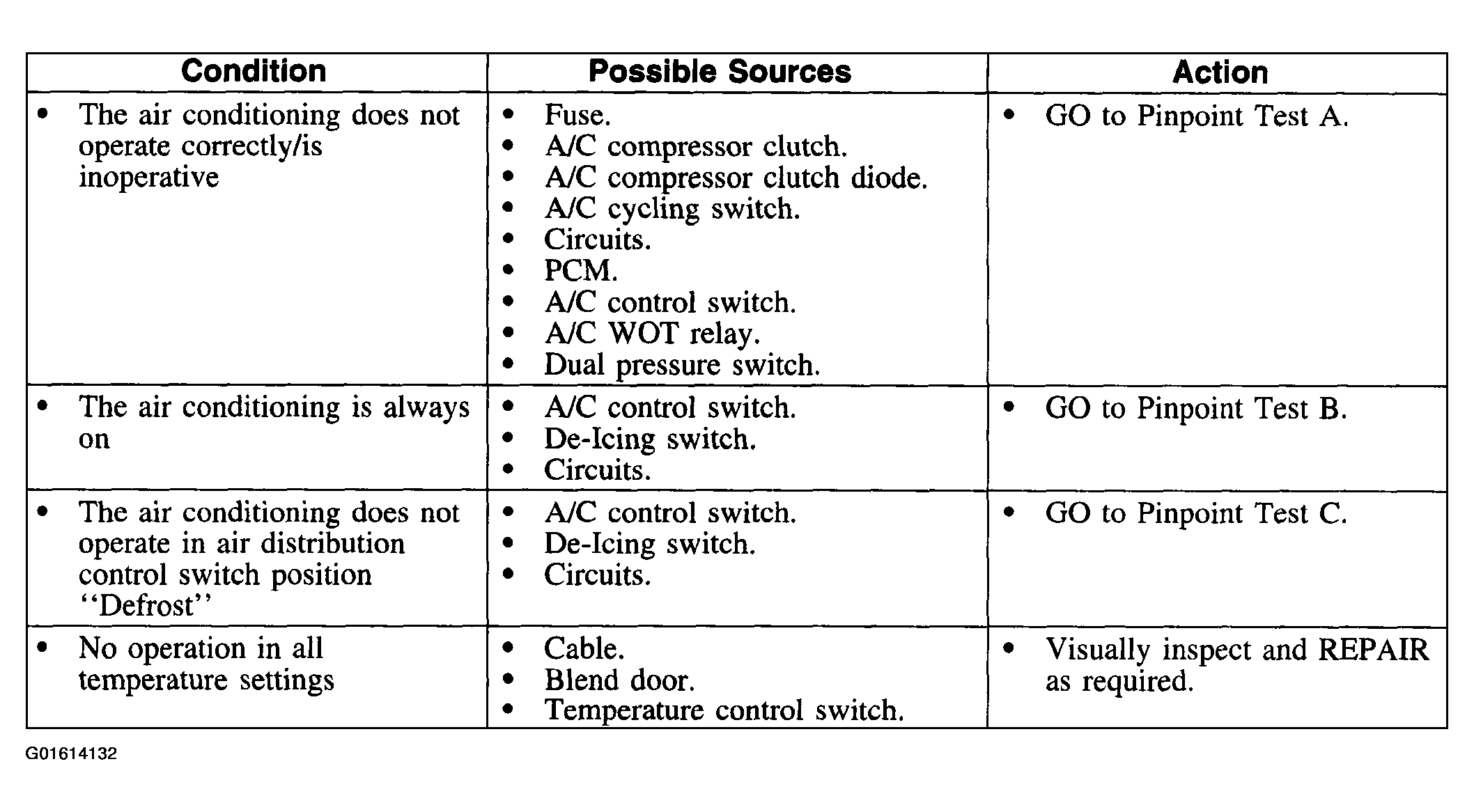

Fig 2: Climate Control System Symptom Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
