Front Electronic Module (FEM)-C201b

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

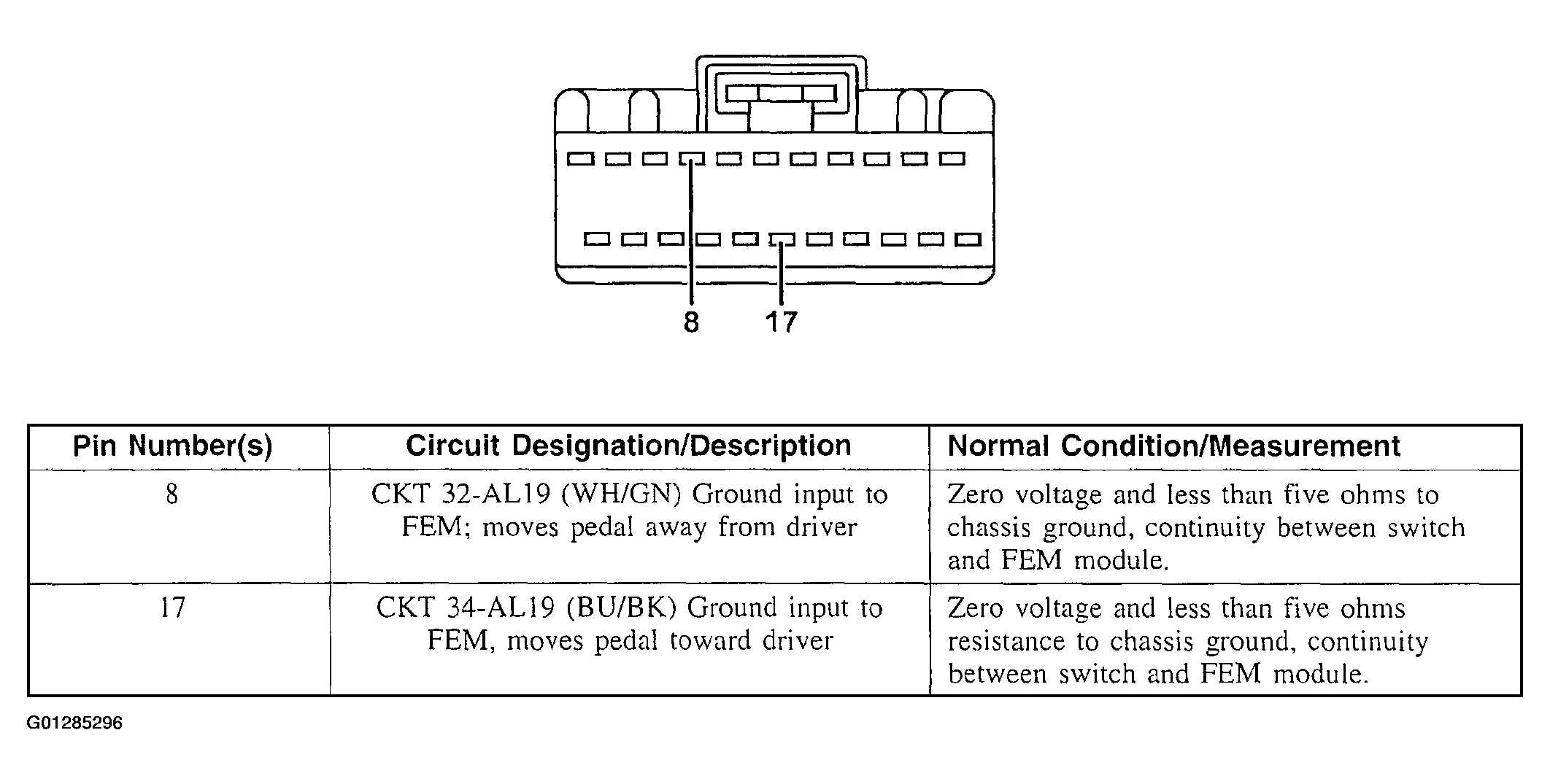

Fig 1: Identifying Front Electronic Module (FEM)-C201b Connector Reference And Terminal Readings

Courtesy of FORD MOTOR CO.
