Pinpoint Test G: The Speed Control Is Inoperative - No DTCS
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

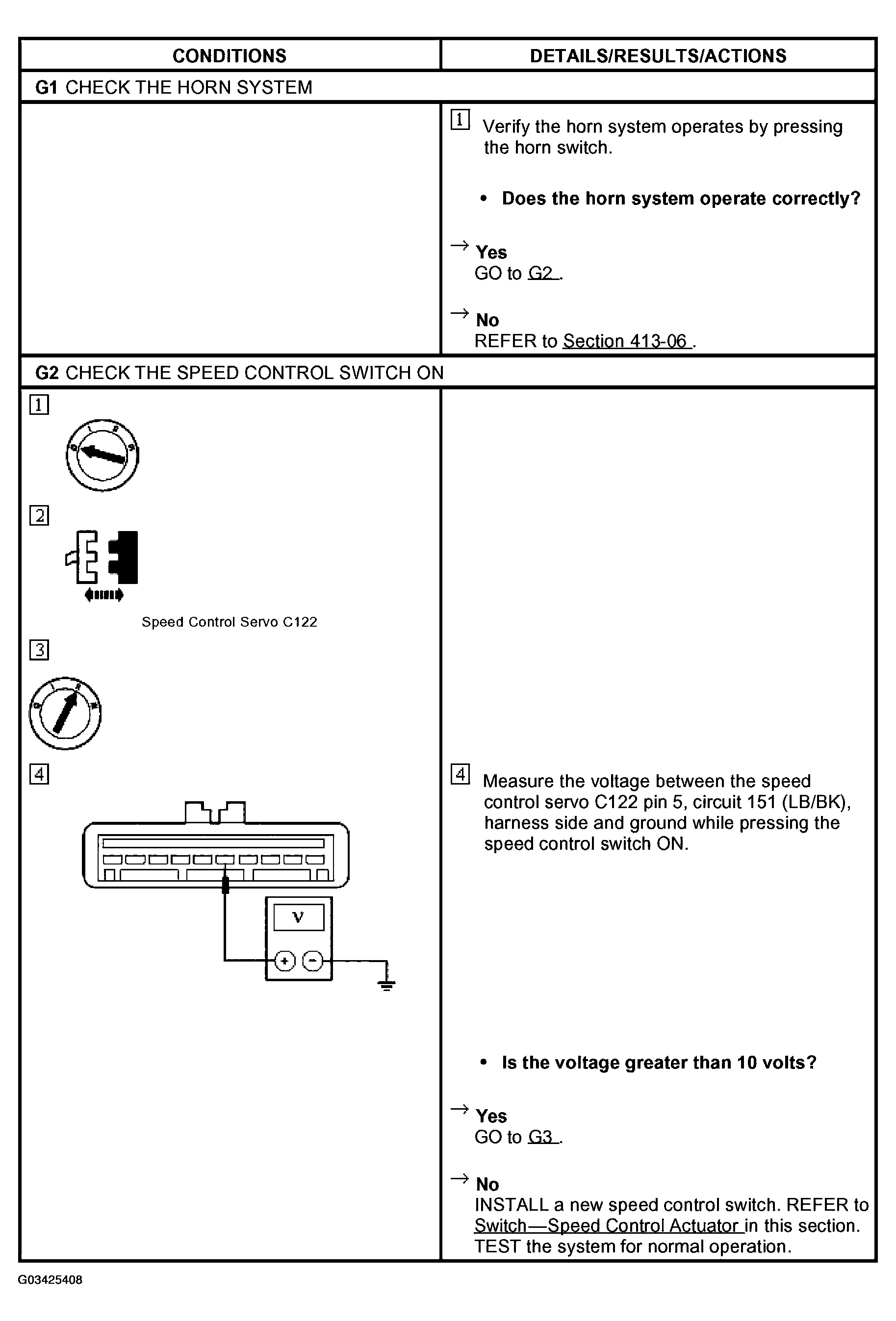

Fig 1: Pinpoint Test G: Speed Control Is Inoperative - No DTCS (G1 & G2))
Courtesy of FORD MOTOR CO.

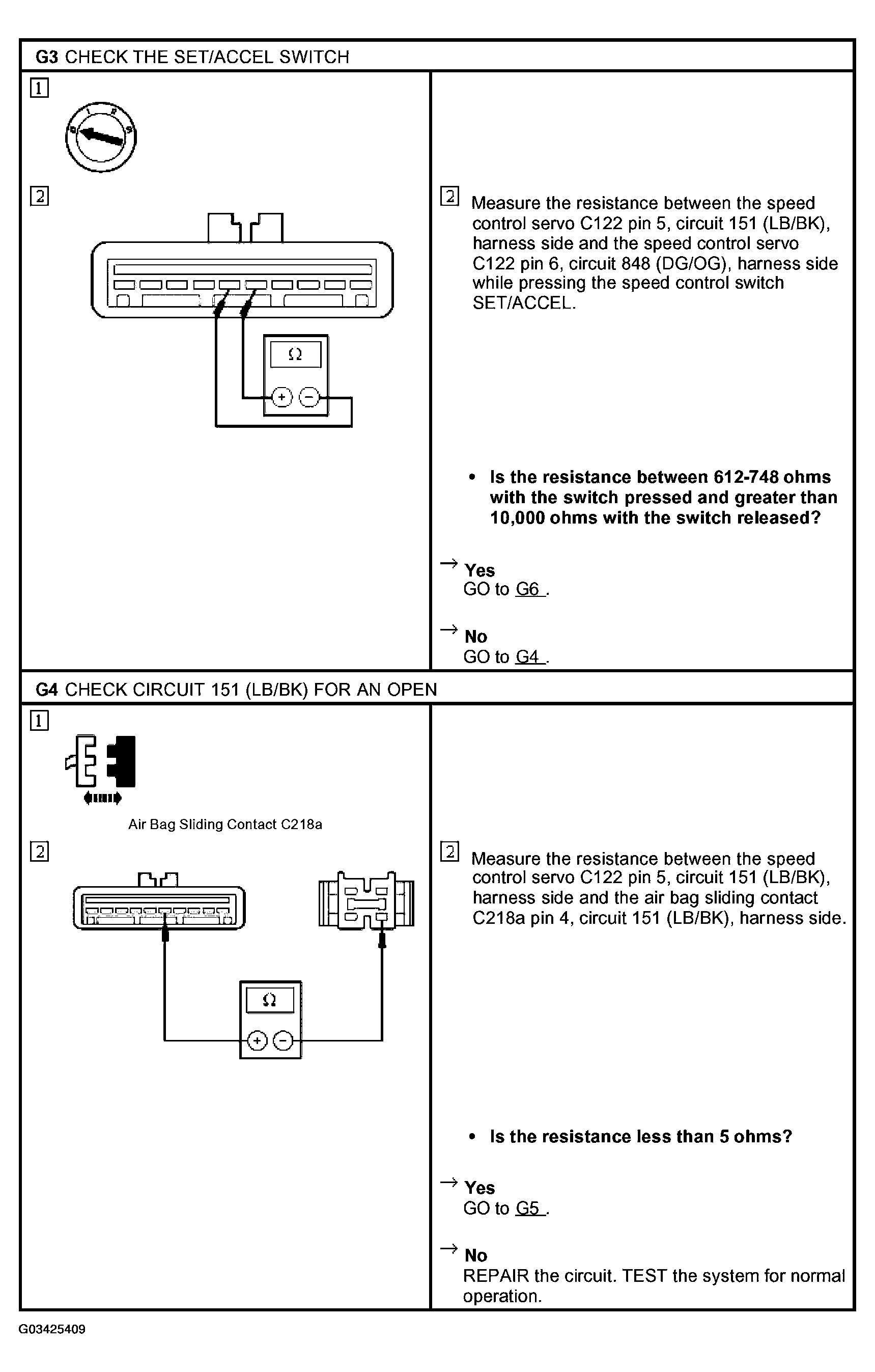

Fig 2: Pinpoint Test G: Speed Control Is Inoperative - No DTCS (G3 & G4)
Courtesy of FORD MOTOR CO.

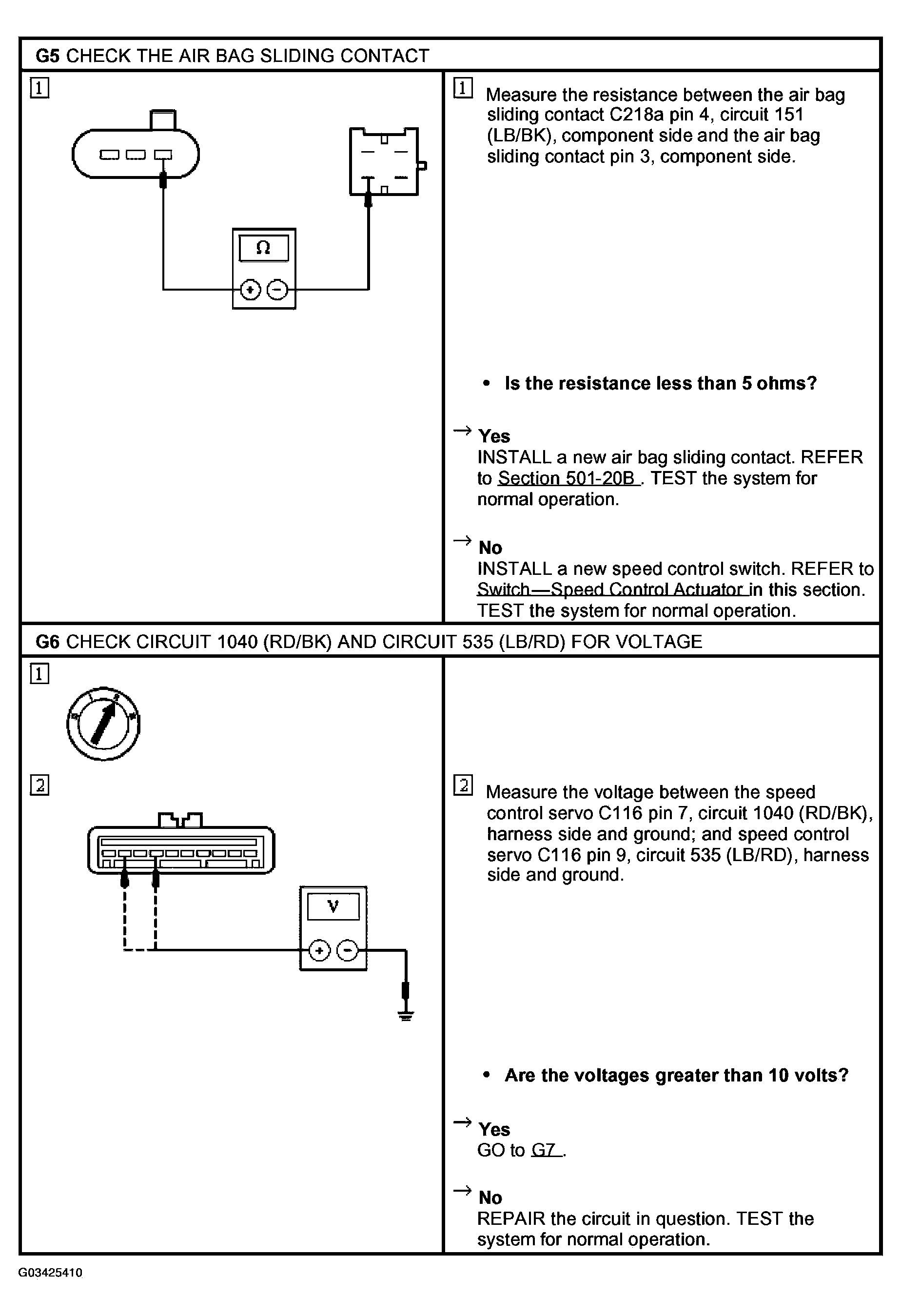

Fig 3: Pinpoint Test G: Speed Control Is Inoperative - No DTCS (G5 & G6)
Courtesy of FORD MOTOR CO.

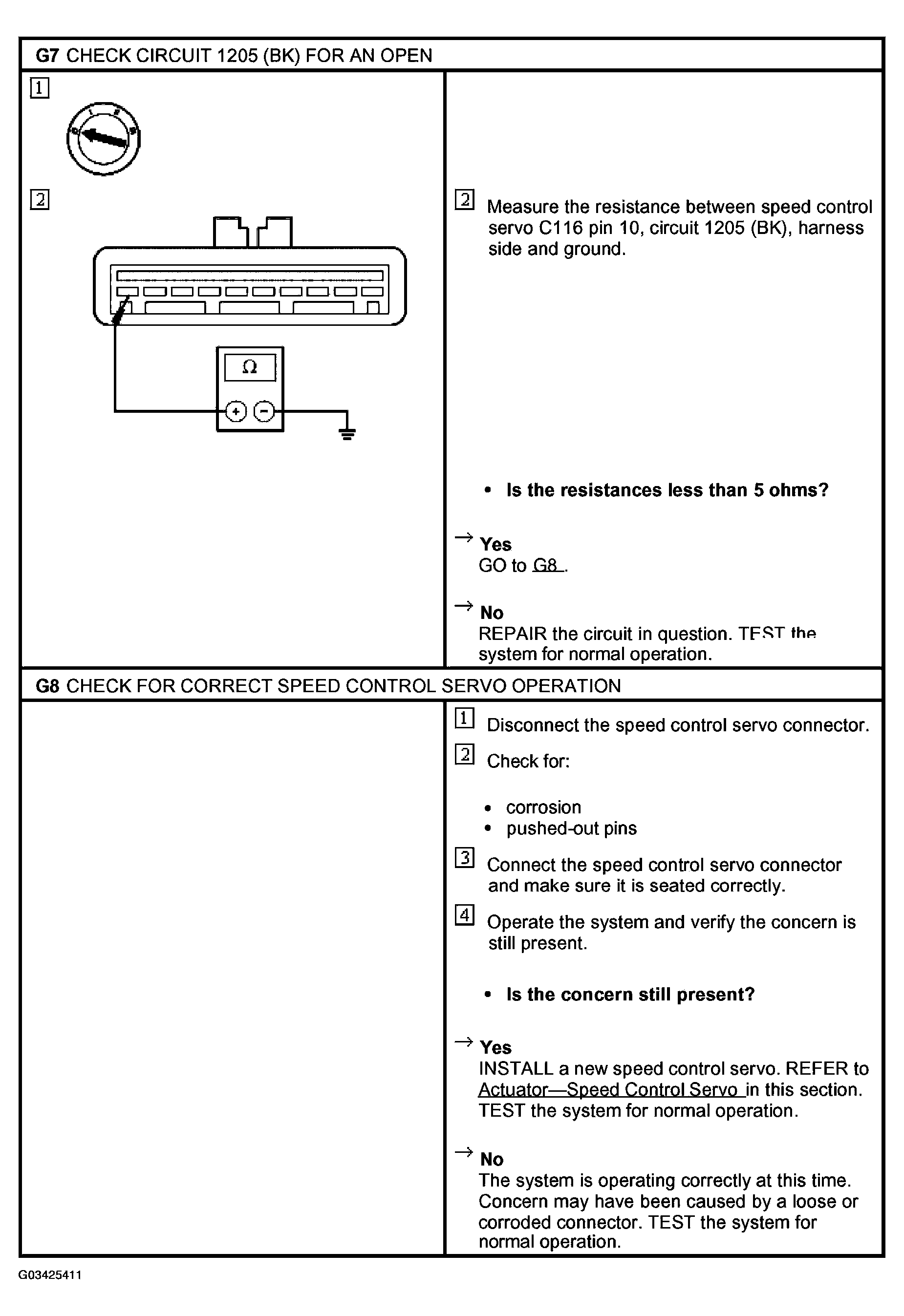

Fig 4: Pinpoint Test G: Speed Control Is Inoperative - No DTCS (G7 & G8)
