Removal And Installation: Resistor: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the wiring harness connector.

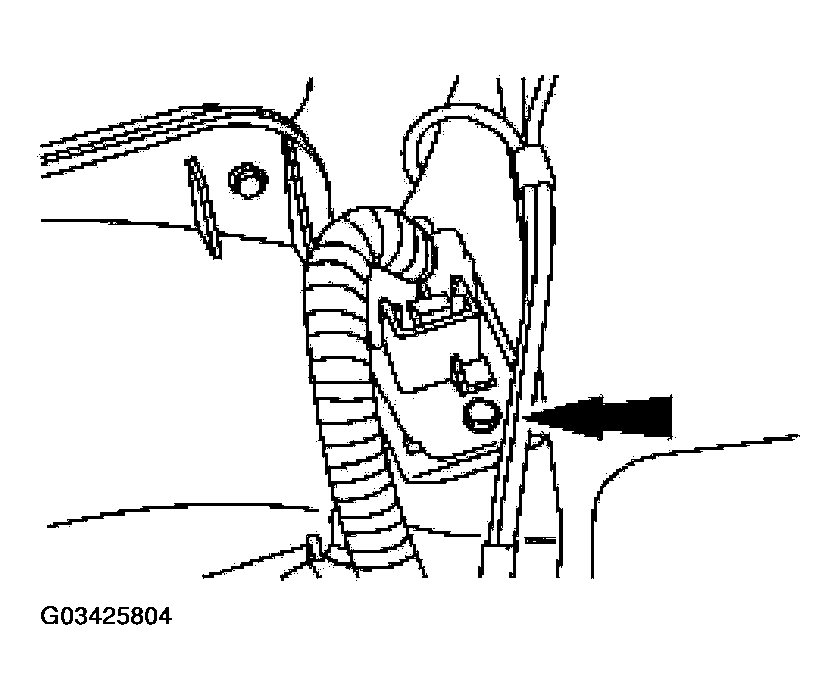

Fig 1: Disconnecting Wiring Harness Connector
Courtesy of FORD MOTOR CO.
Remove the resistor.
- Remove the screws.

  Fig 2: Removing Resistor
  Courtesy of FORD MOTOR CO.
Remove the resistor.
