Adjustable Pedal Switch C2089
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

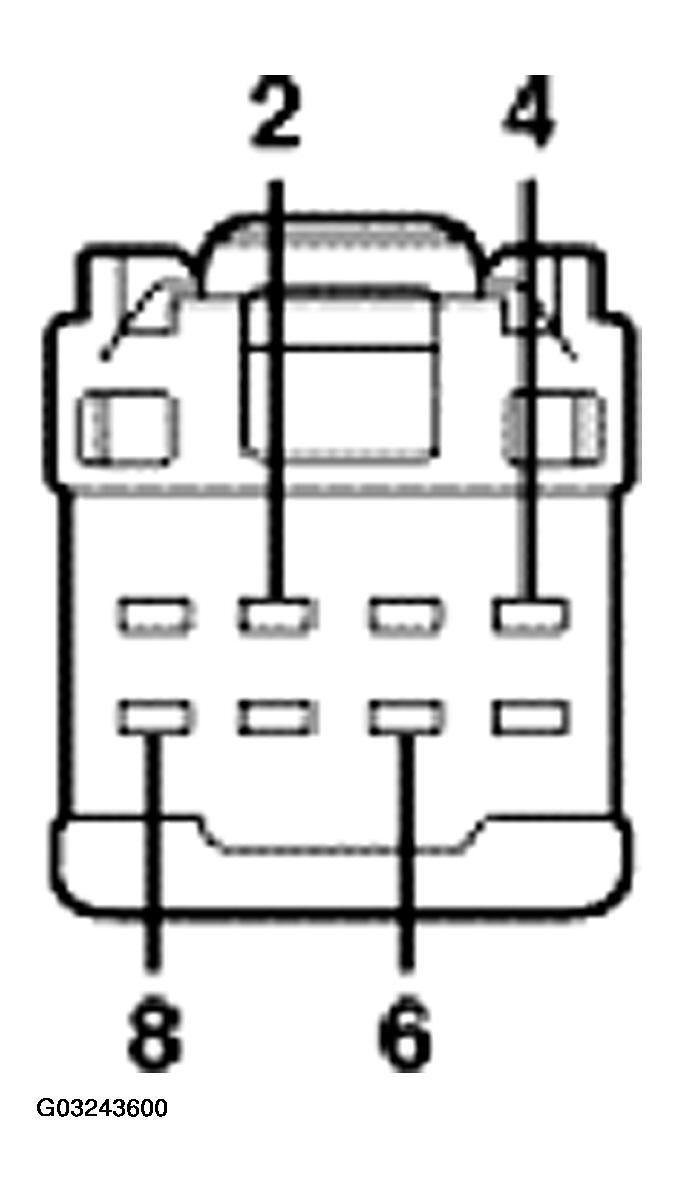

PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | 1205 (BK) adjustable pedal switch ground circuit | Less than 5 ohms resistance between the adjustable pedal connector (disconnected) and ground. |
| 4 (without memory) | 1495 (WH) adjustable pedal motor power feed or ground (switched) | Greater than 10 volts with motor in one direction and ground when in opposite direction. Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
| 4 (with memory) | 1495 (WH) adjustable pedal rearward signal input to the DSM (uses a voltage reference signal from the DSM to the adjustable pedal switch) | Less than 5 ohms resistance between the adjustable pedal switch and the DSM connectors (both disconnected). |
| 6 (without memory) | 1567 (RD/LB) adjustable pedal switch power feed | Greater than 10 volts between the adjustable pedal switch connector (disconnected) and ground. |
| 6 (with memory) | 1205 (BK) adjustable pedal switch ground | Less than 5 ohms resistance between the adjustable pedal switch connector (disconnected) and ground. |
| 8 (without memory) | 1494 (RD) adjustable pedal motor ground or power feed (switched) | Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
| 8 (with memory) | 1494 (RD) adjustable pedal forward signal input to the DSM (uses a voltage reference signal from the DSM to the adjustable pedal switch) | Less than 5 ohms resistance between the adjustable pedal switch and the DSM connectors (both disconnected). |
