Cylinder Head Distortion
WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL EQUIPMENT
| Feeler Gauge |
| Straightedge |

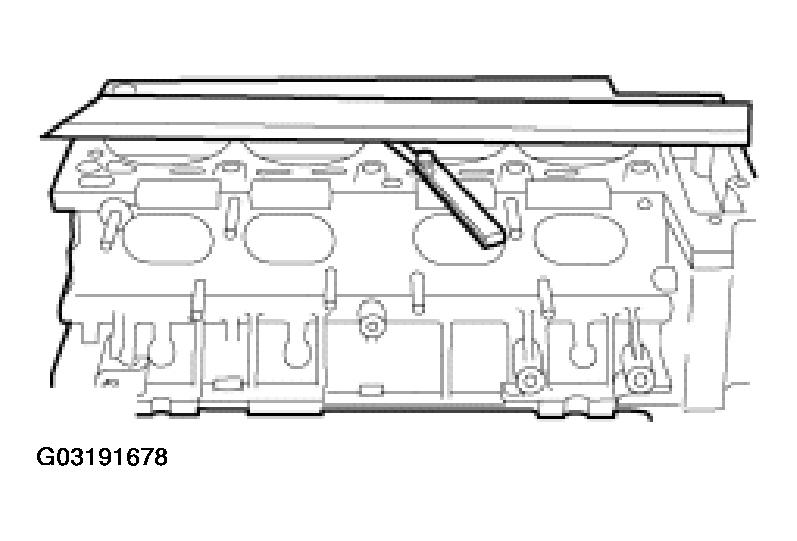

- Using a straightedge and feeler gauge, measure the cylinder head distortion.
- Measure the mating face distortion.
- If the value is not to specification, rework the mating face.
Courtesy of FORD MOTOR CO.
