Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Pull up the rear seat.
Position the floor covering to one side.
Remove the fuel pump driver module (FPDM).
1. Disconnect the FPDM electrical connector.
2. Remove the FPDM.

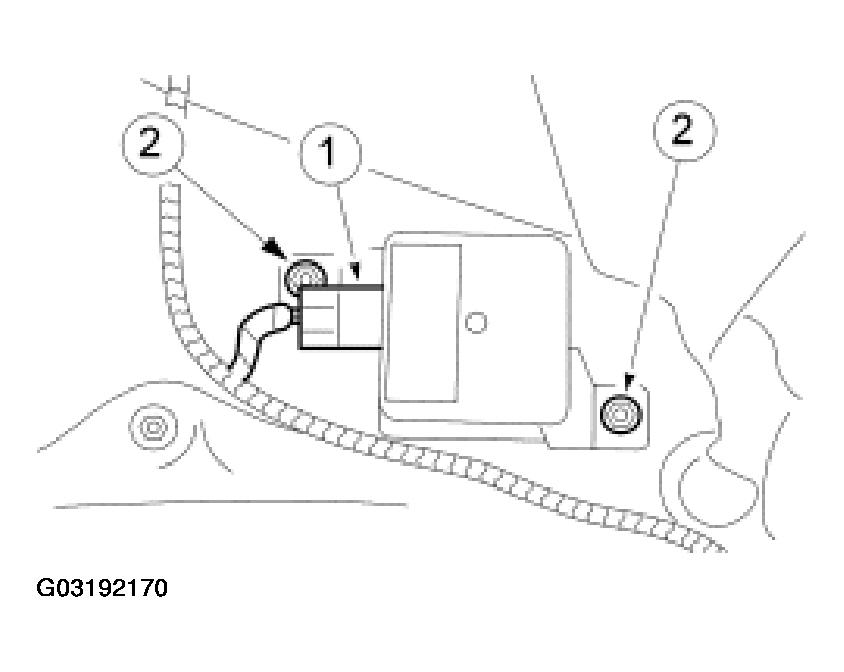

Fig 1: Removing Fuel Pump Driver Module (FPDM)
Courtesy of FORD MOTOR CO.
