Subwoofer Amplifier - SVT: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear quarter trim panel
- Disconnect the luggage compartment lamp.

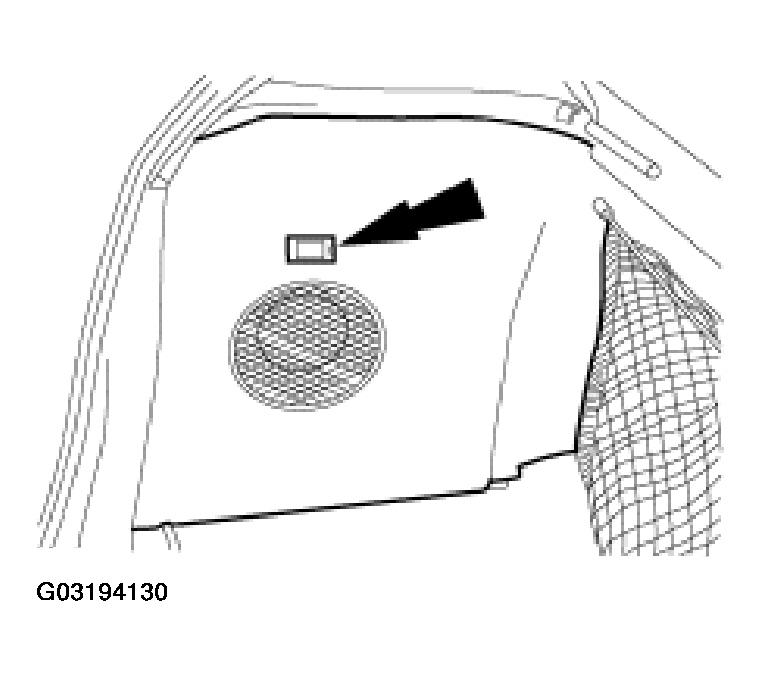

Fig 1: Disconnecting Luggage Compartment Lamp
Courtesy of FORD MOTOR CO.
Remove the speaker enclosure.

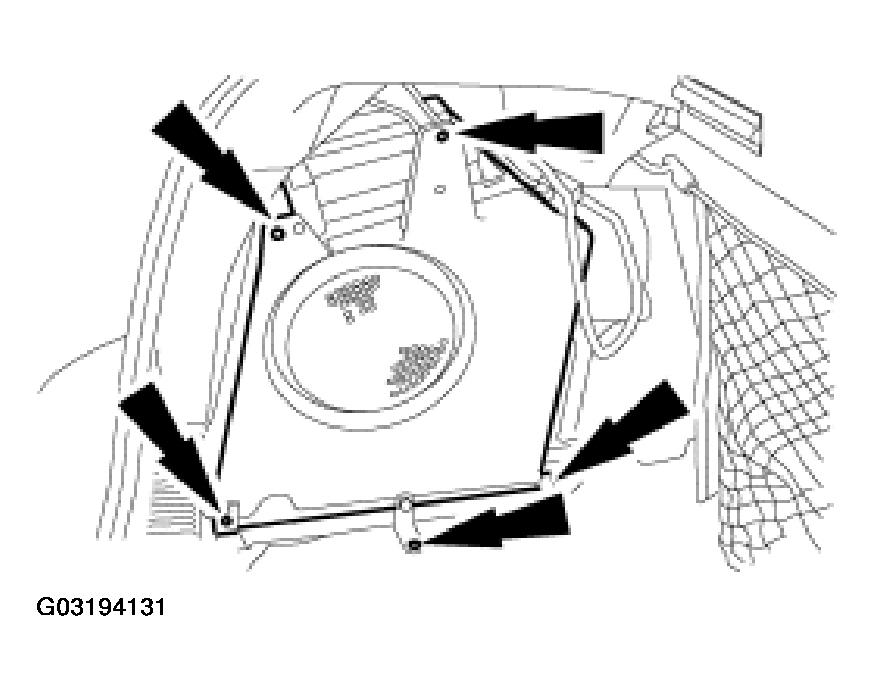

Fig 2: Removing Speaker Enclosure
Courtesy of FORD MOTOR CO.
Disconnect the subwoofer amplifier electrical connectors.

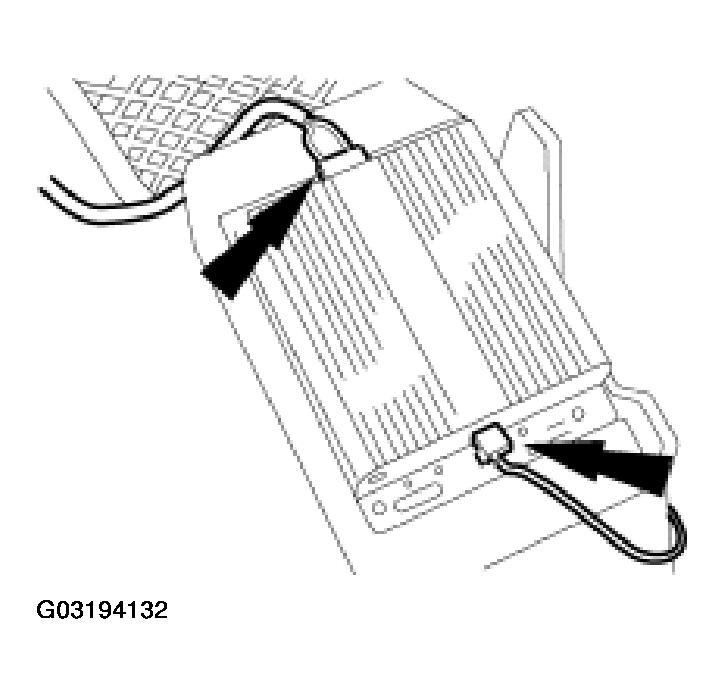

Fig 3: Disconnecting Subwoofer Amplifier Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the subwoofer amplifier from the speaker enclosure.

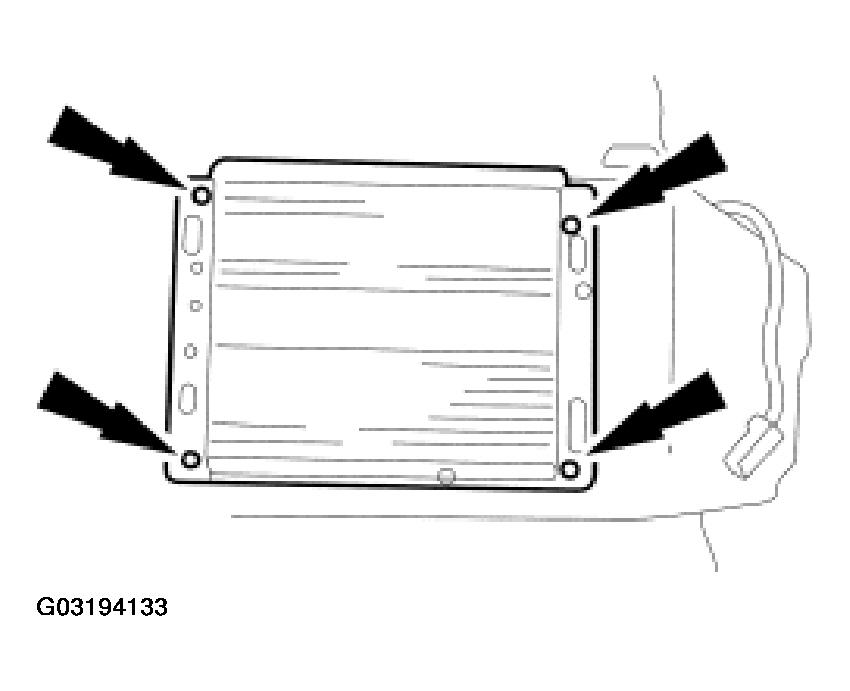

Fig 4: Removing Subwoofer Amplifier From Speaker Enclosure
Courtesy of FORD MOTOR CO.
