Valve Cover RH: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Release the fuel system pressure. For additional information, refer to FUEL SYSTEM .
Disconnect the fuel tube from the fuel supply manifold. For additional information, refer to FUEL SYSTEM .
Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the parts in the order indicated in the following illustrations and tables.

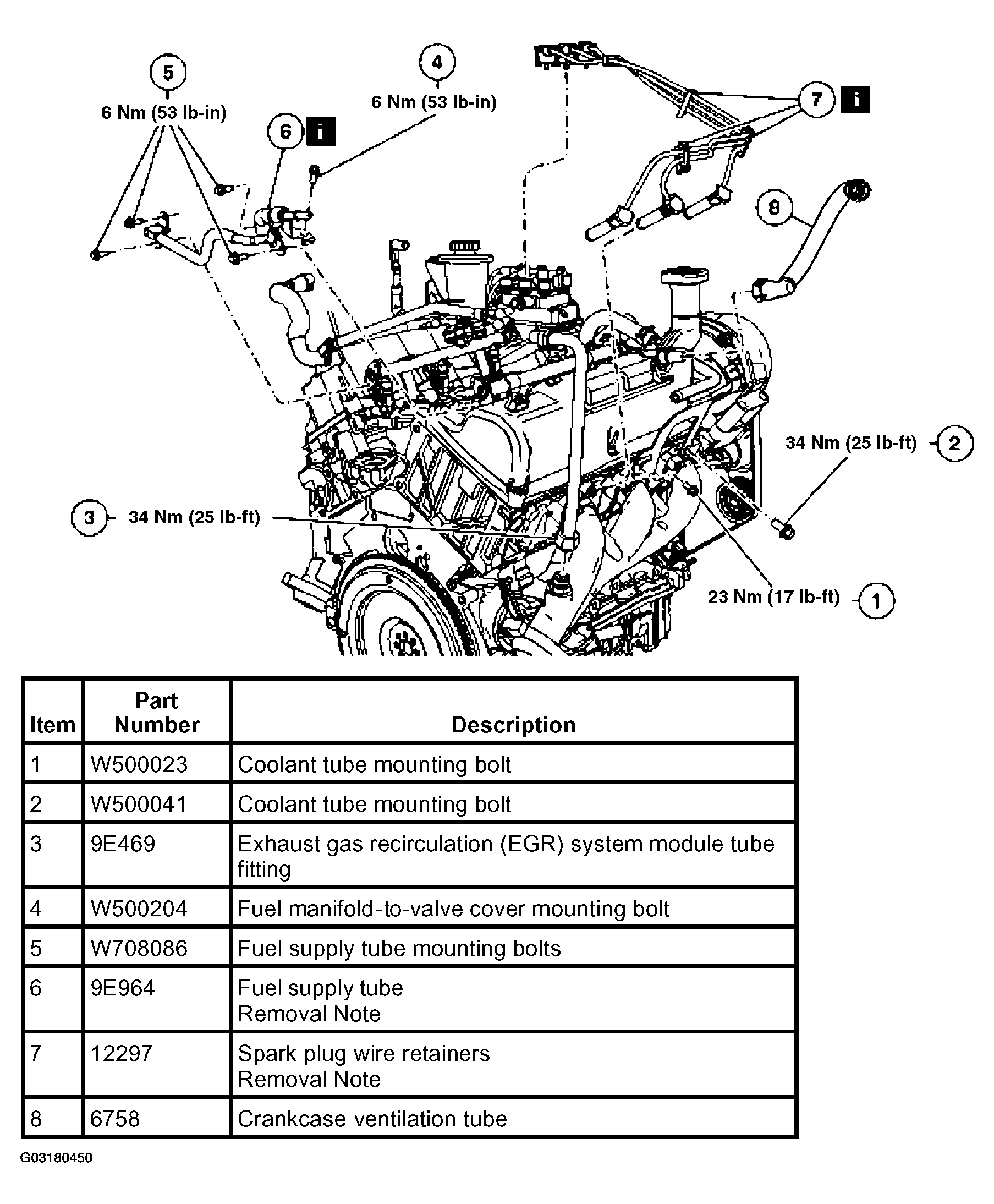

Fig 1: Removing Valve Cover RH (1 Of 2)
Courtesy of FORD MOTOR CO.

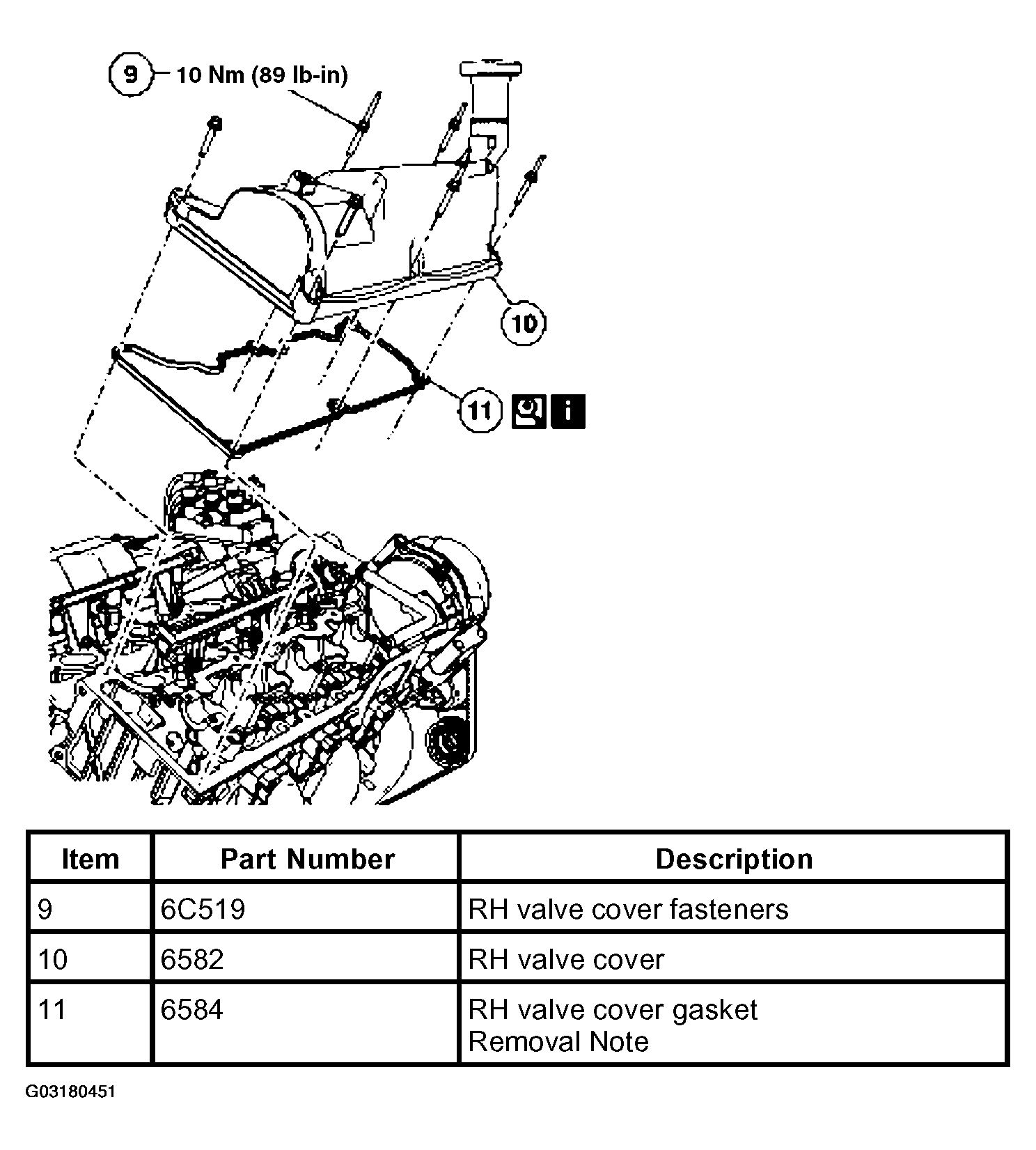

Fig 2: Removing Valve Cover RH (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
