Section 609 (Cruise Control System)
›
Diagnosis And Testing
›
Speed Control
›
Connector Circuit Reference
›
PCM C175b
PCM C175b
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

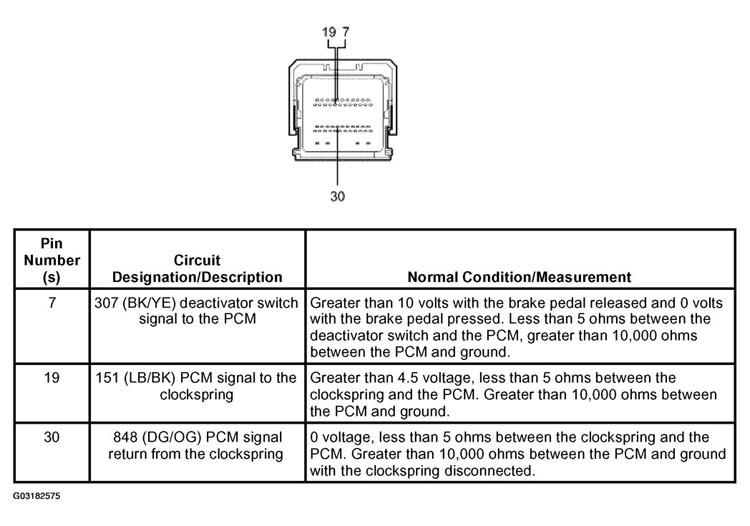

Fig 1: Identifying PCM C175B
Courtesy of FORD MOTOR CO.
