Pinpoint Test F: DTC C1185: Testing

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Repair all other DTCs before proceeding.

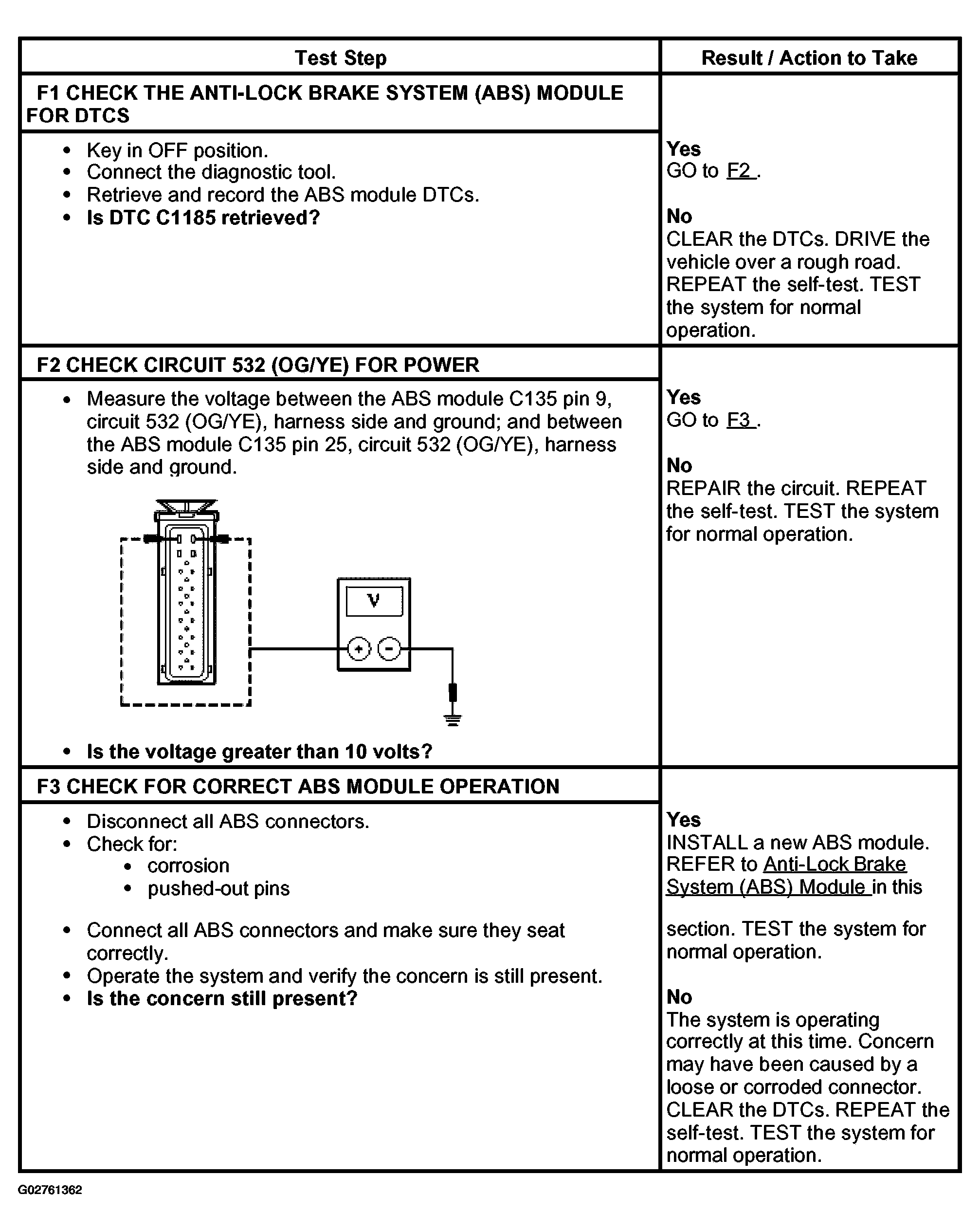

Fig 1: Pinpoint Test F: DTC Identifying C1185 - Anti-Lock Brake System (ABS) Power Relay Output Circuit Failure

Courtesy of FORD MOTOR CO.
