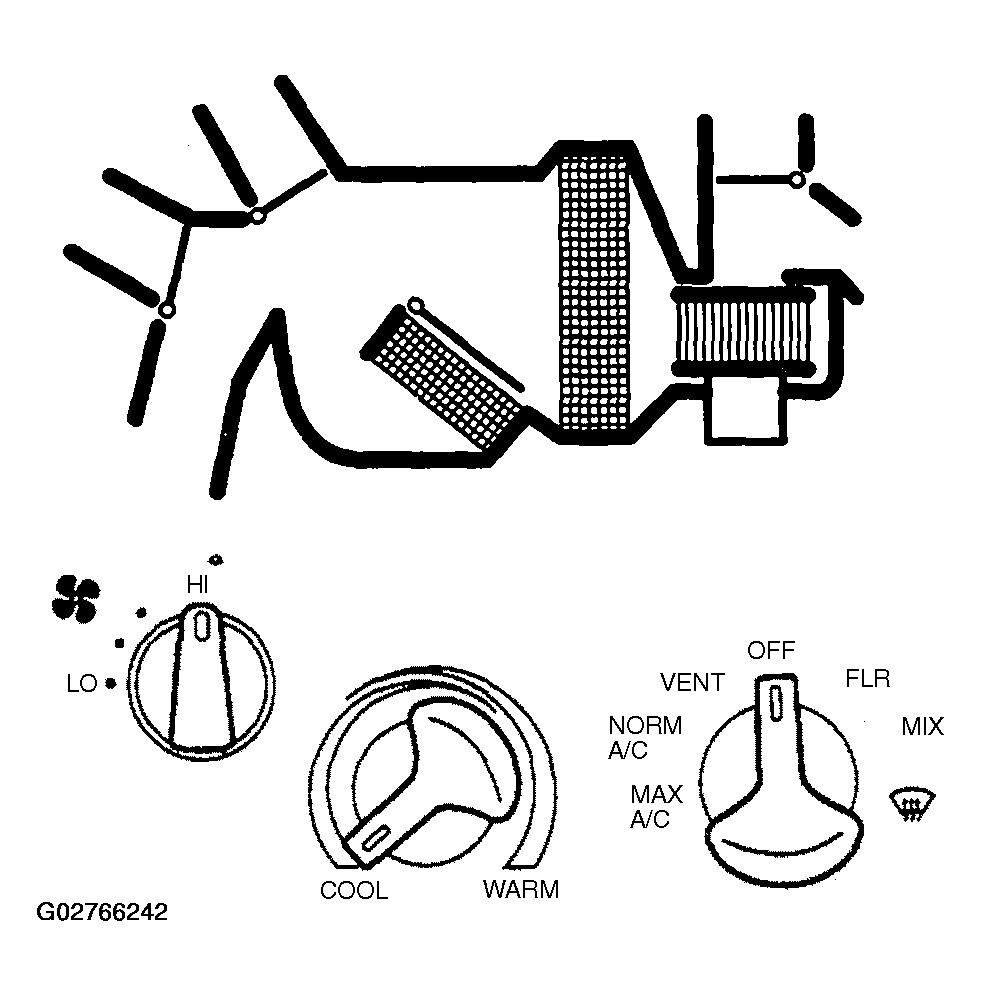

System Airflow Description: Off
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
When OFF is selected:
- The recirculation air duct door is at full vacuum, closing off outside air and admitting only recirculated air.
- The floor/panel door is in the no vacuum position, closing the passage to the instrument panel A/C registers.
- The floor/defrost door is at full vacuum, closing the passages to the windshield defroster hose nozzle.
- The blower motor and the A/C compressor are off.
