Module - LH: Installation
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
- Snap the control module hinge onto the actuator assembly.

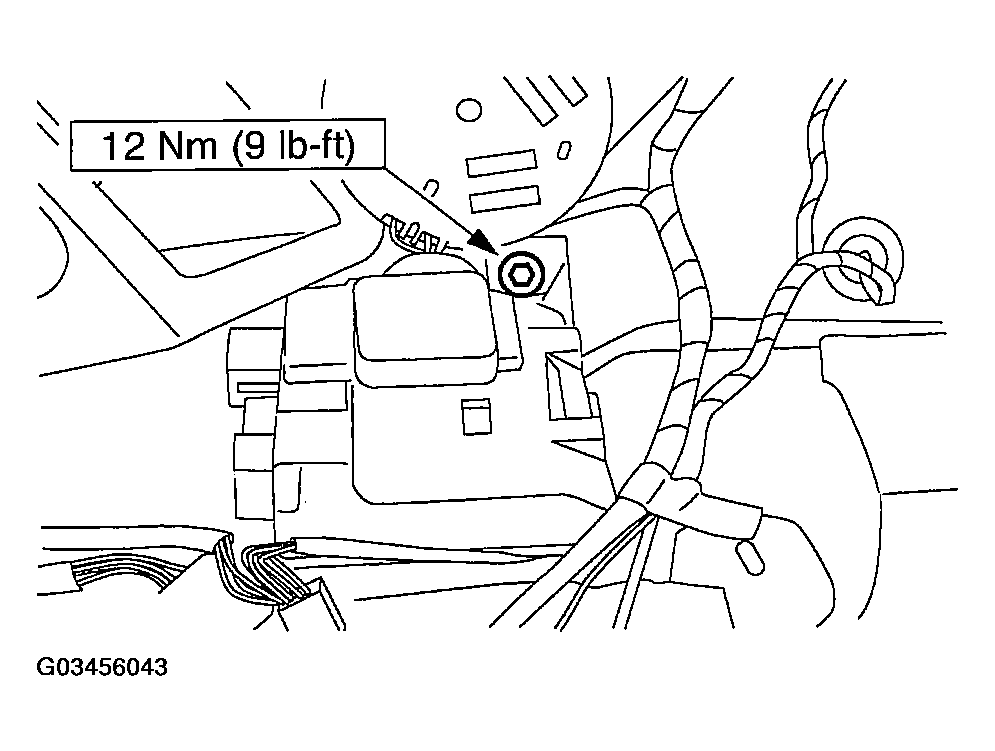

- Install the bolt.

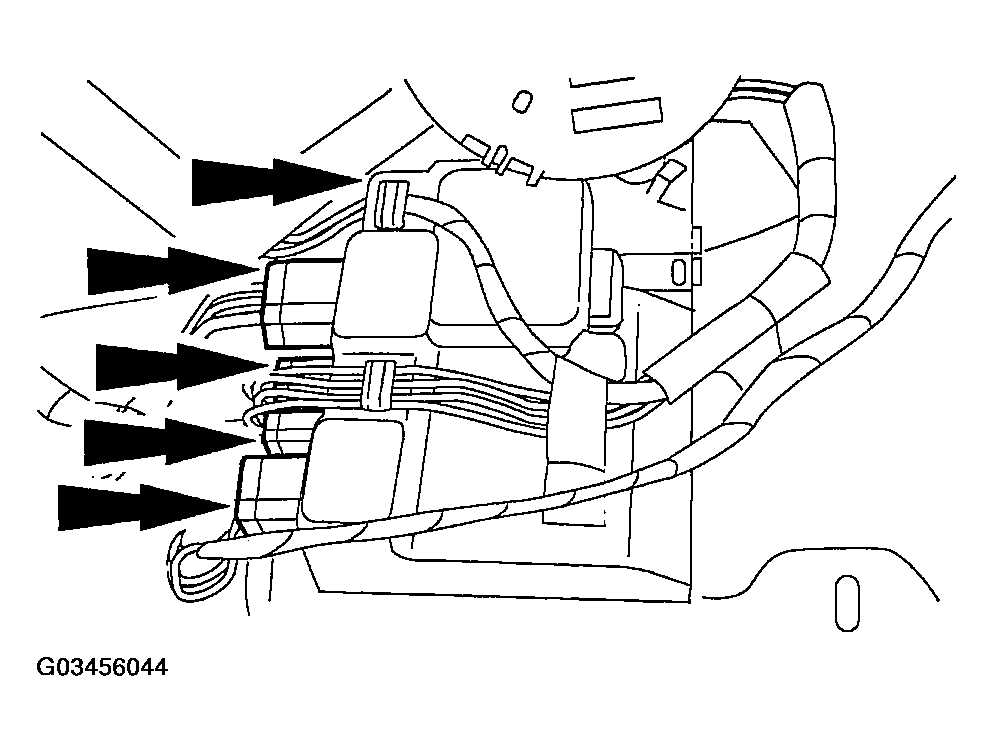

- Connect the connectors.
- Install the upper and lower A/C ducts. For additional information, refer to AUXILIARY CLIMATE CONTROL .
- Install the left lower quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Install the left upper quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Install CJB fuse 6 (15A).
- Initialize both of the power sliding doors.
- Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full close position.
- Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.
NOTE:
Make sure that the power sliding doors; are fully closed and latched.
NOTE:
Make sure the power sliding doors are unlocked.
