Module - LH: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove CJB fuse 6 (15A).
Remove the left upper quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the left lower quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the upper and lower A/C ducts. For additional information, refer to AUXILIARY CLIMATE CONTROL .
Disconnect the connectors.

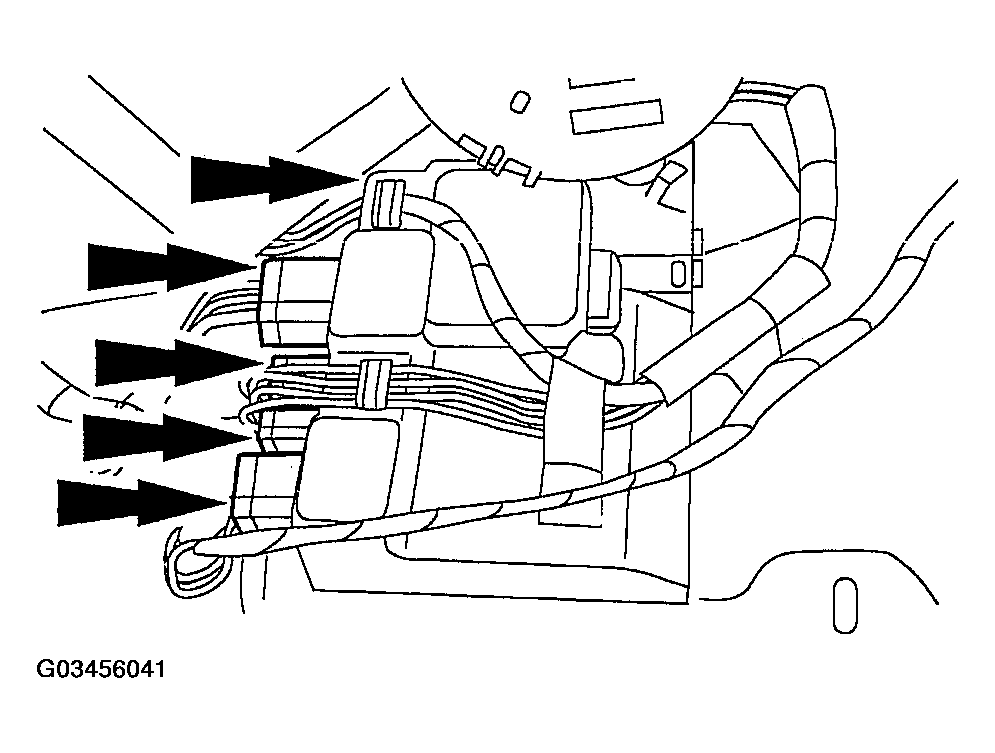

Fig 1: Disconnecting Connectors
Courtesy of FORD MOTOR CO.
Remove the bolt.

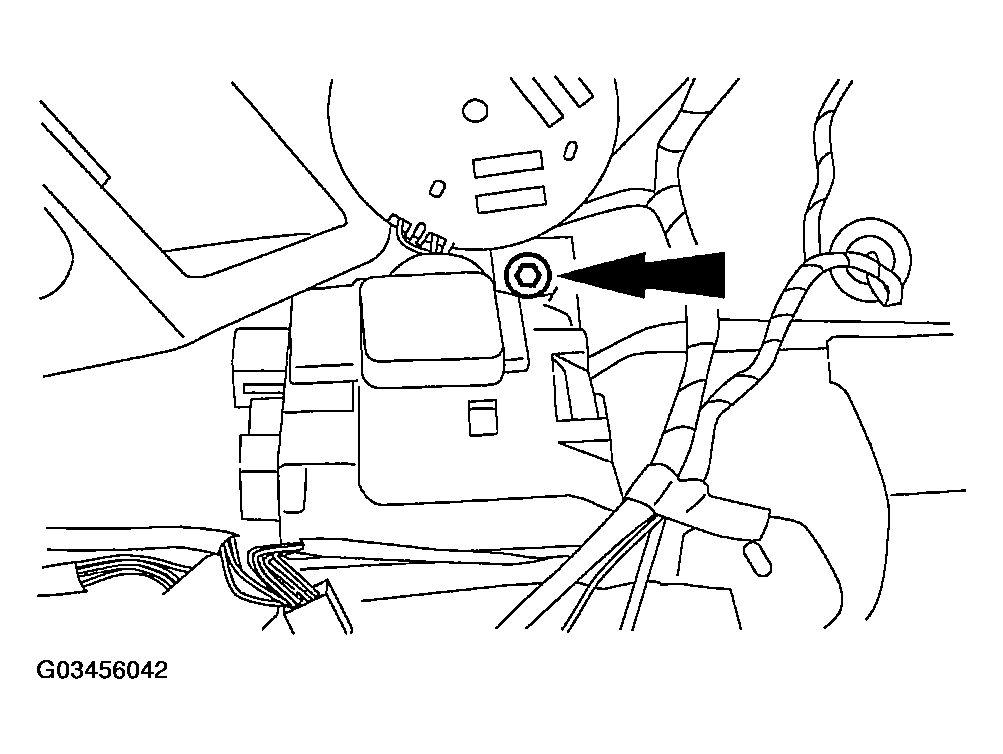

Fig 2: Removing Bolt
Courtesy of FORD MOTOR CO.
Unsnap the control module hinge from the actuator assembly.
