Module - RH: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Slide the control module onto the actuator assembly.

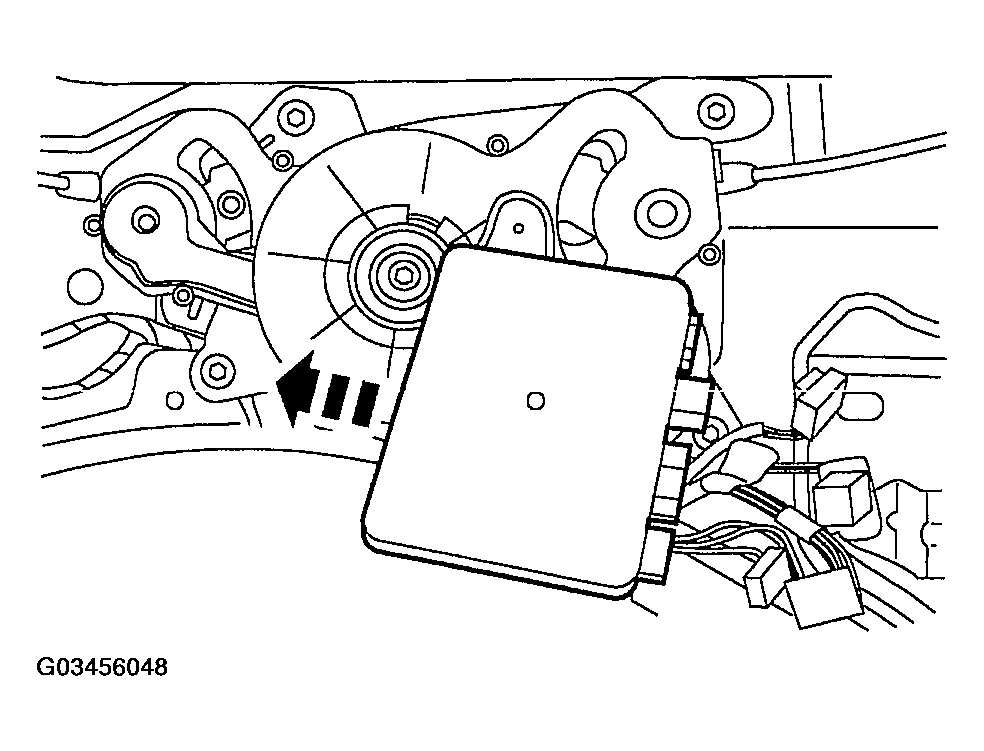

Fig 1: Sliding Control Module Onto Actuator Assembly
Courtesy of FORD MOTOR CO.
Install the screw.

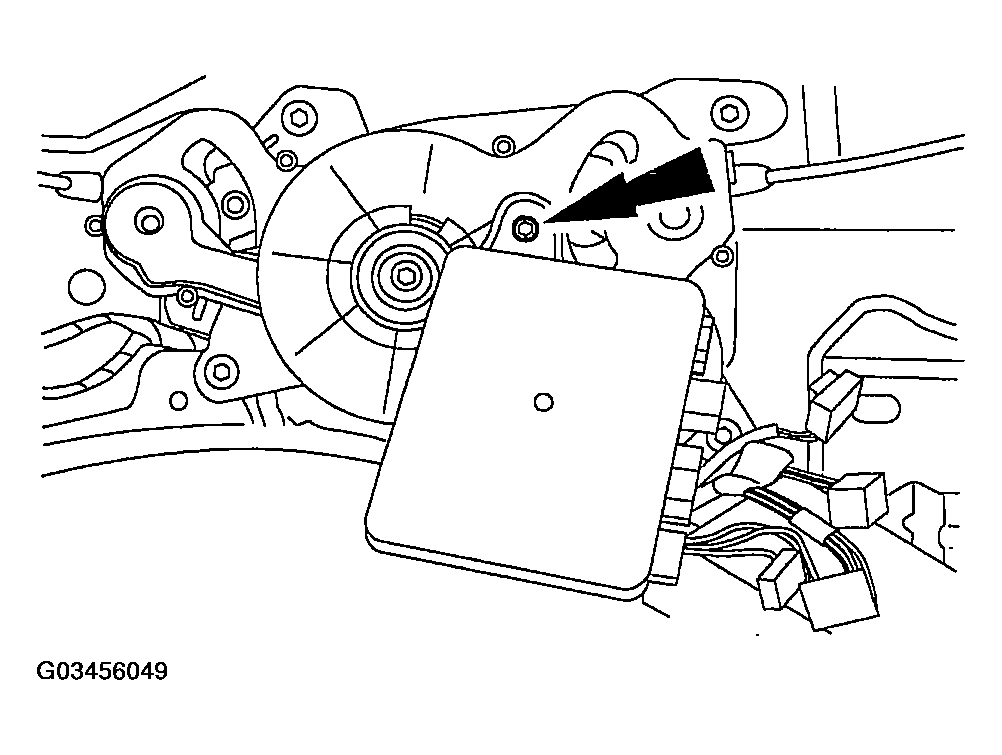

Fig 2: Installing Screw
Courtesy of FORD MOTOR CO.
Connect the connectors.

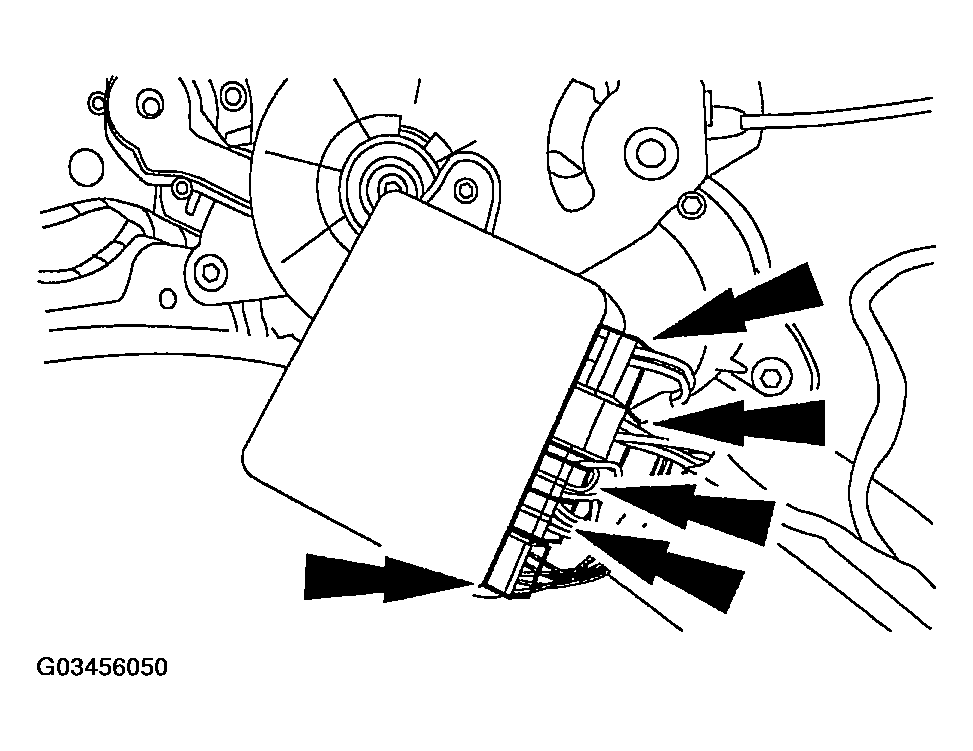

Fig 3: Connecting Connectors
Courtesy of FORD MOTOR CO.
Install the right quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Install CJB fuse 6 (15A).

NOTE: Make sure that the power sliding doors are fully closed and latched.

NOTE: Make sure that the power sliding doors are unlocked.

Initialize both power sliding doors.
- Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full close position.
- Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.
