Module - RH: Notes

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove CJB fuse 6 (15A).
Remove the right quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

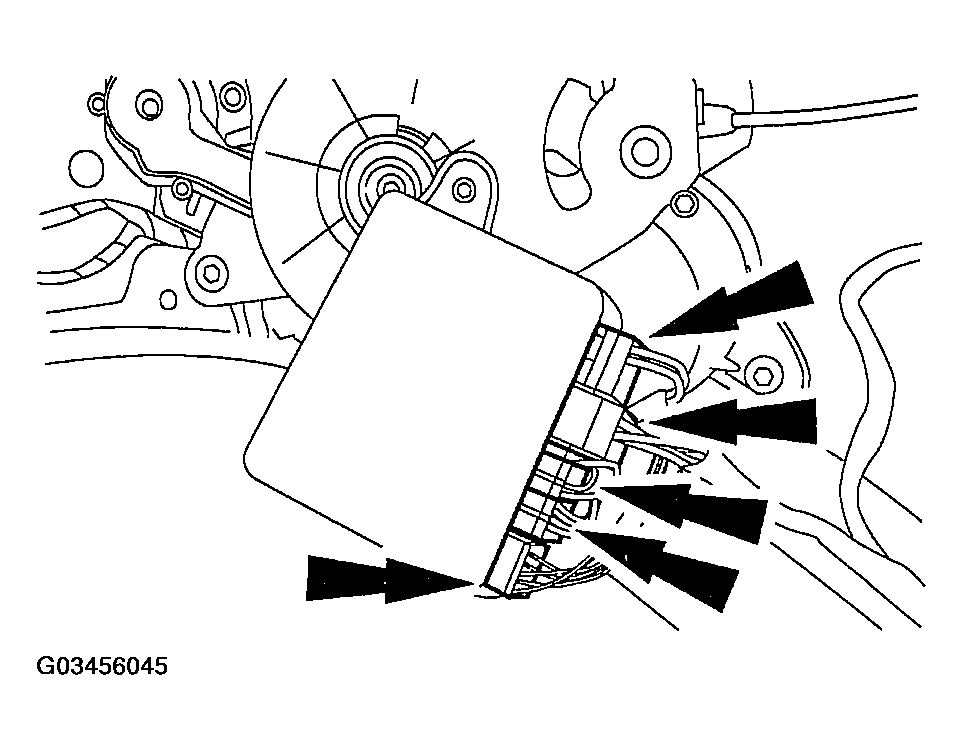

Disconnect the connectors.

Fig 1: Disconnecting Connectors
Courtesy of FORD MOTOR CO.

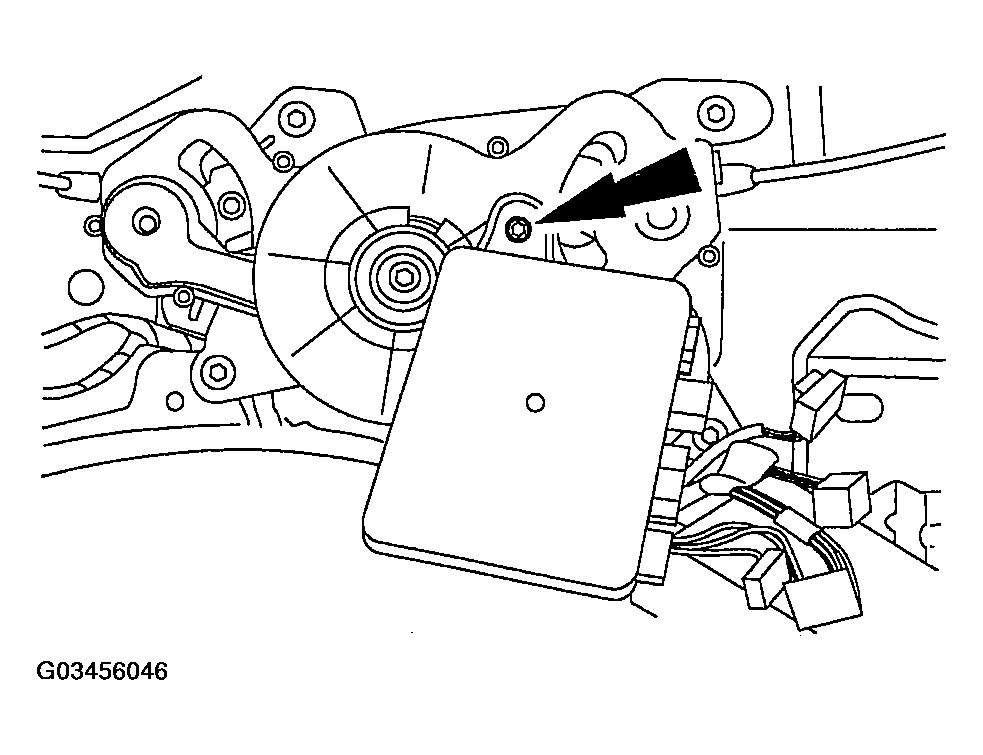

Remove the screw.

Fig 2: Removing Screw
Courtesy of FORD MOTOR CO.

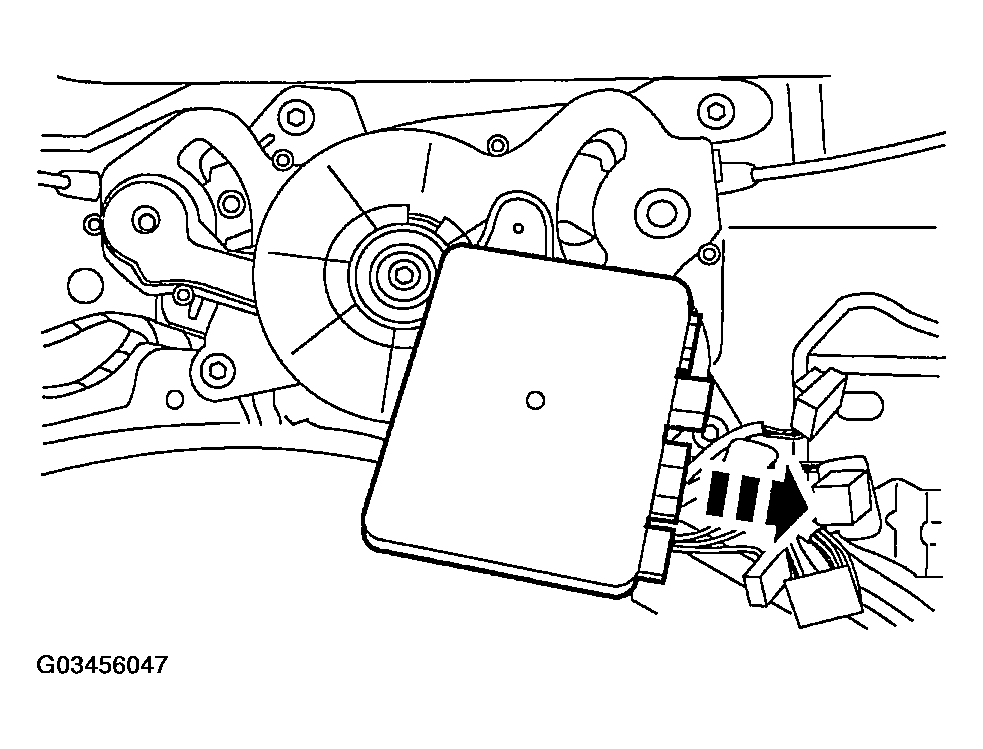

Slide the control module off the actuator assembly.

Fig 3: Sliding Control Module Off Actuator Assembly
Courtesy of FORD MOTOR CO.
