Master window adjust switch, without rear power windows

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

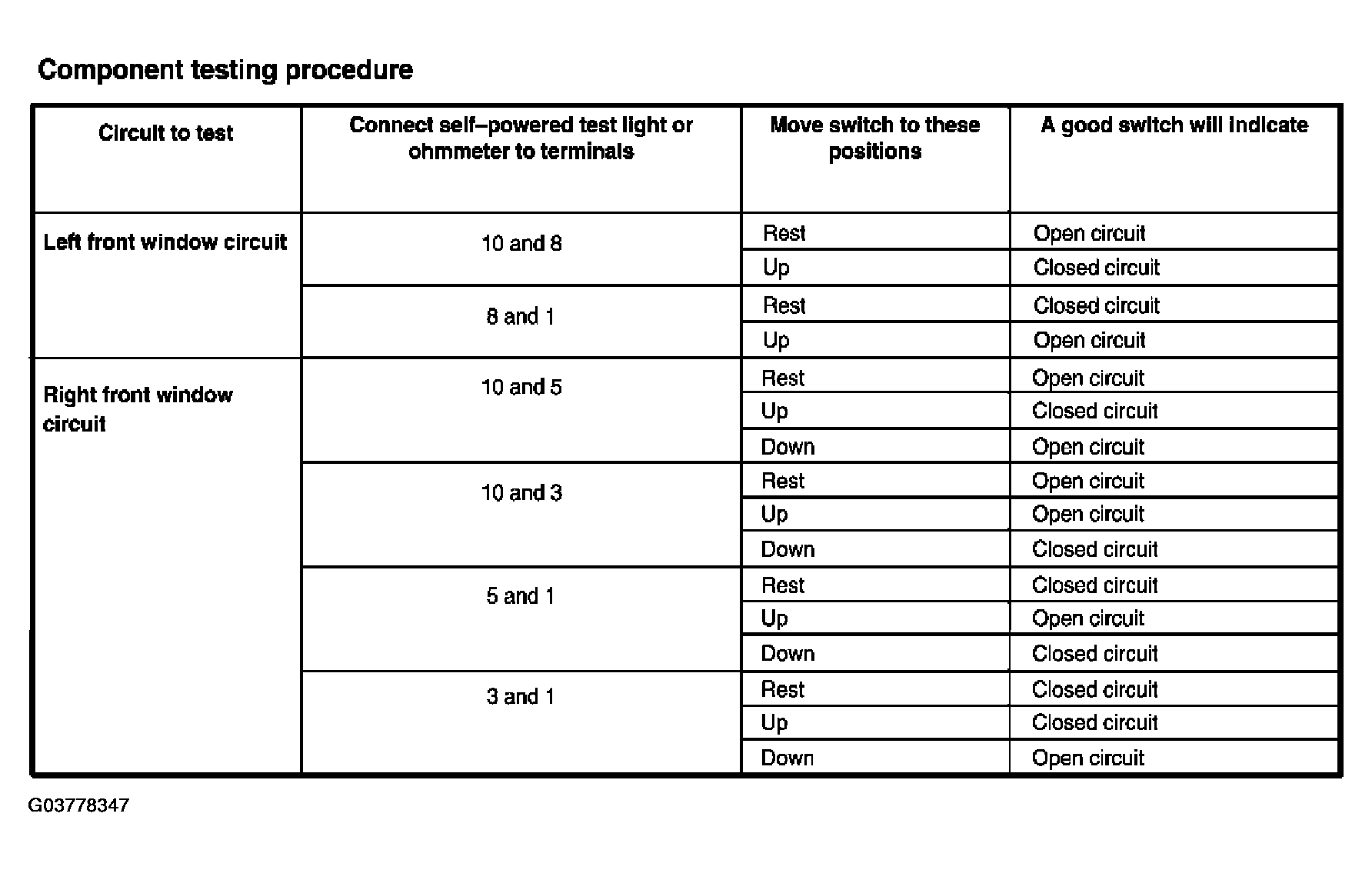

Fig 1: Testing Master Window Adjust Switch, Without Rear Power Windows (1 Of 2)

Courtesy of FORD MOTOR CO.

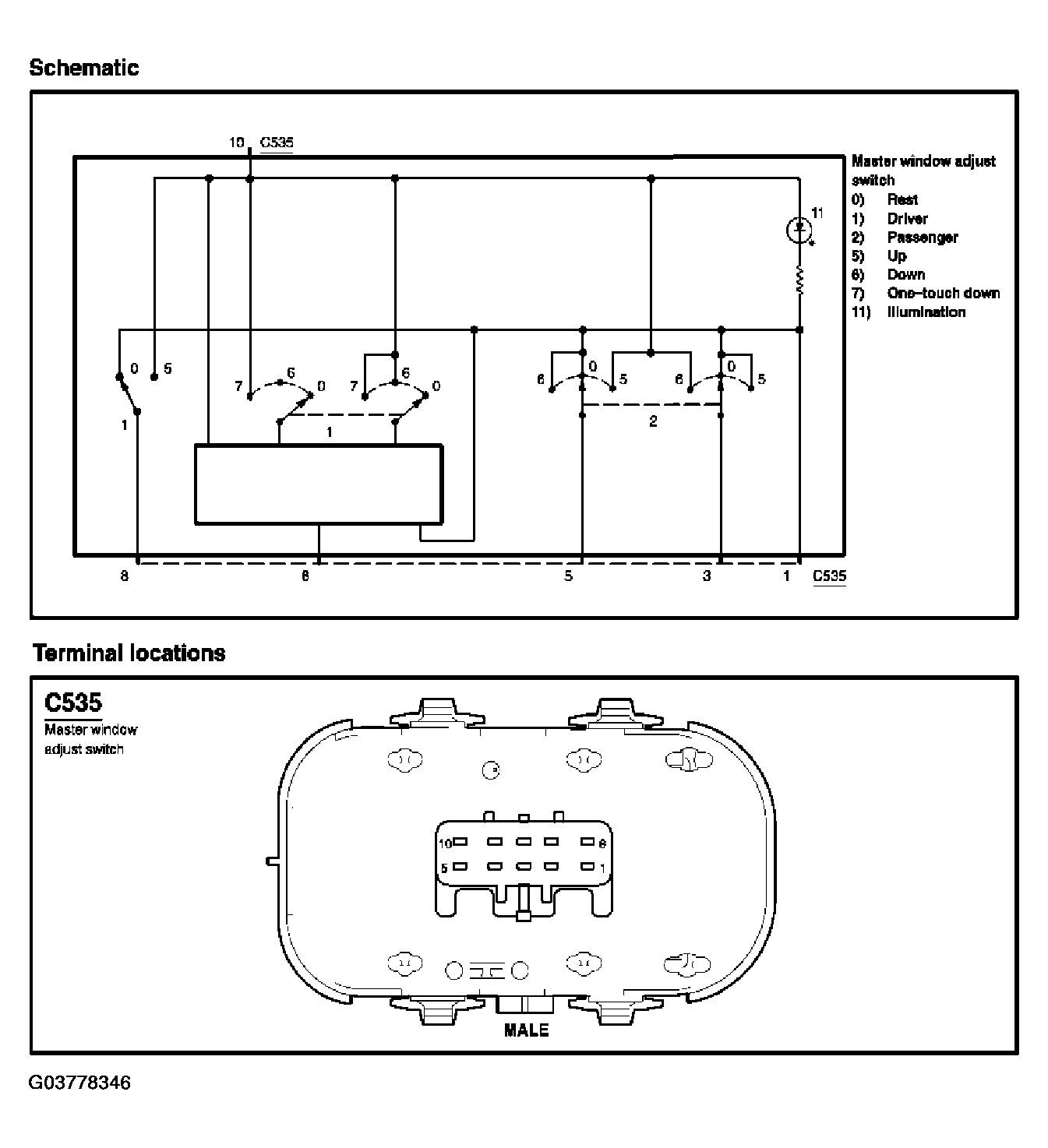

Fig 2: Testing Master Window Adjust Switch, Without Rear Power Windows (2 Of 2)

Courtesy of FORD MOTOR CO.
