Universal Joints: Notes

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

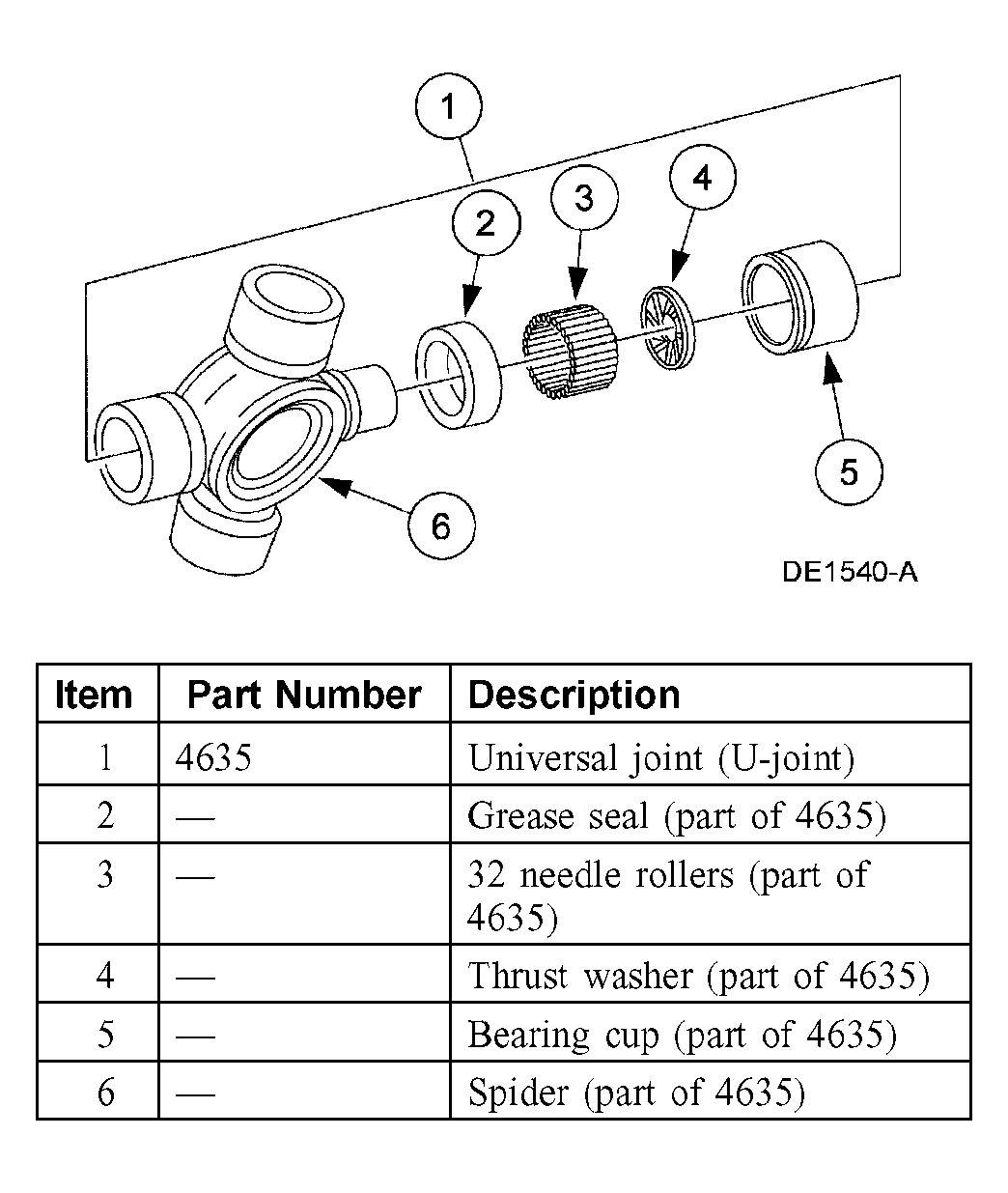

Fig 1: Identifying Universal Joints

Courtesy of FORD MOTOR CO.

Universal joints have the following:

A lubed-for-life design.
Equipped with nylon thrust washers located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
Size 1350 for E-150-350, size 1410 for E-450, and size 1480 for E-550.

Fig 2: Positioning Needle Bearings And Improves Grease Movement
Courtesy of FORD MOTOR CO.
