Disassembly And Assembly Of Subassemblies: Differential: Assembly

NOTE: Whenever a bearing has been removed, a new bearing must be installed.

Using the special tool and a press, install the speedometer drive gear and the differential bearing.

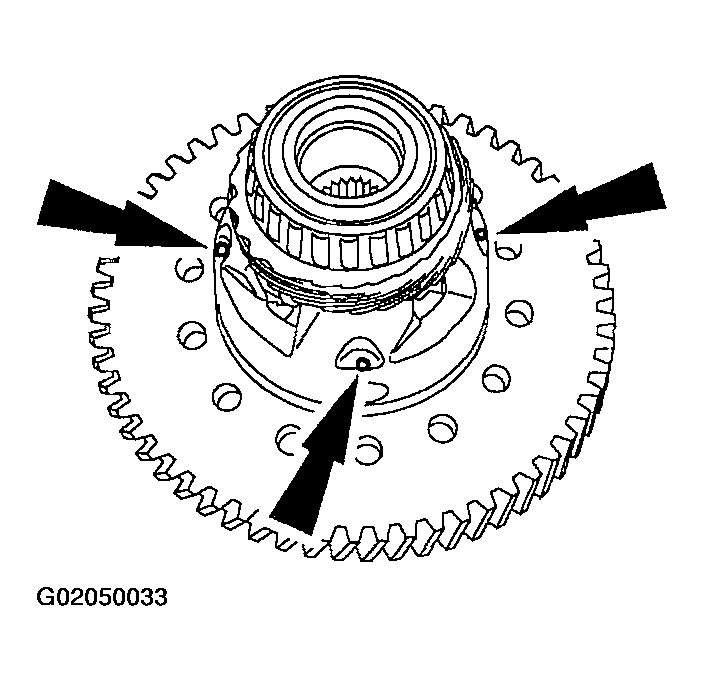

Fig 1: Installing Speedometer Drive Gear And Differential Bearing
Using the special tool, install the differential bearing.

Fig 2: Installing Differential Bearing
Install the differential side gear and thrust washer.

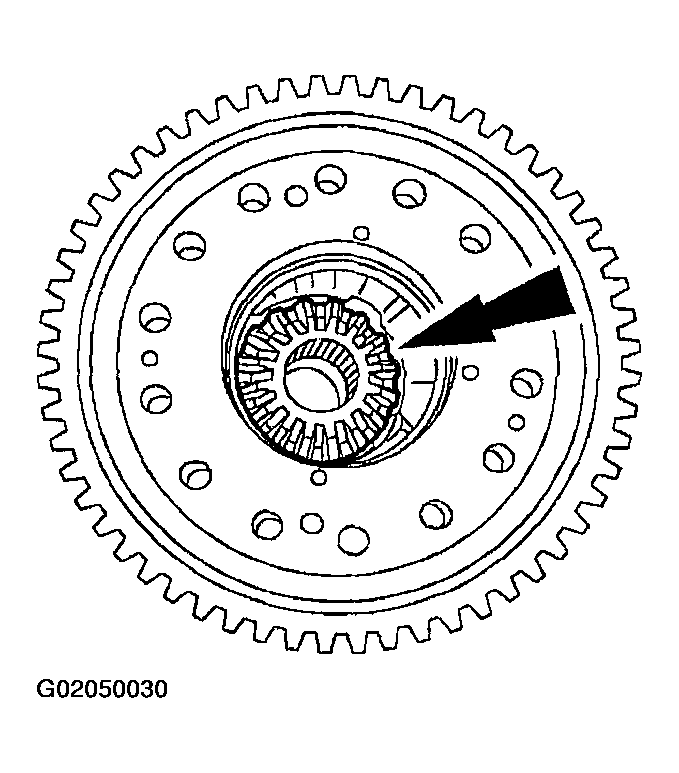

Fig 3: Installing Differential Side Gear And Thrust Washer
Install the differential pinion gears and thrust washers.

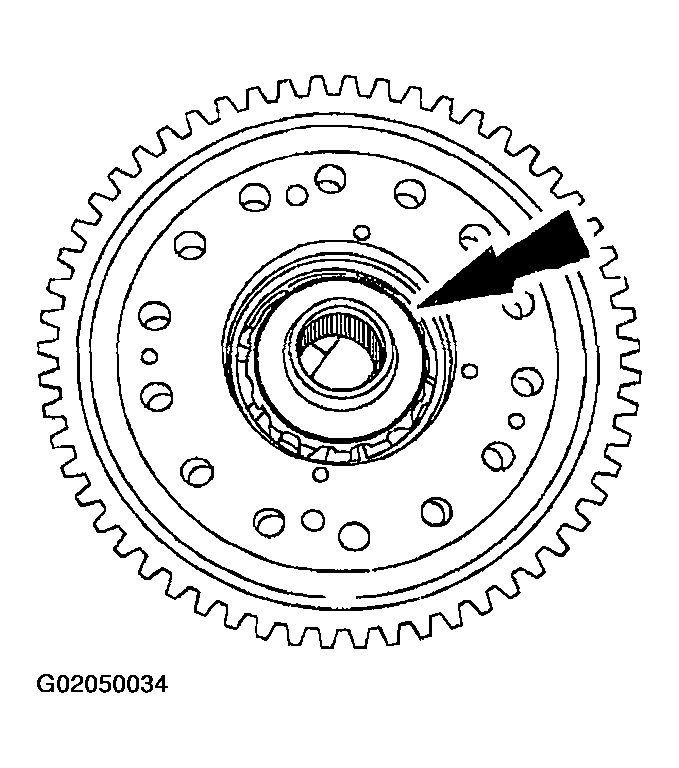

Fig 4: Installing Differential Pinion Gears And Thrust Washers
Install the differential pinion shaft cage.
1. Position the differential pinion shaft cage.
2. Install the differential pinion shafts.

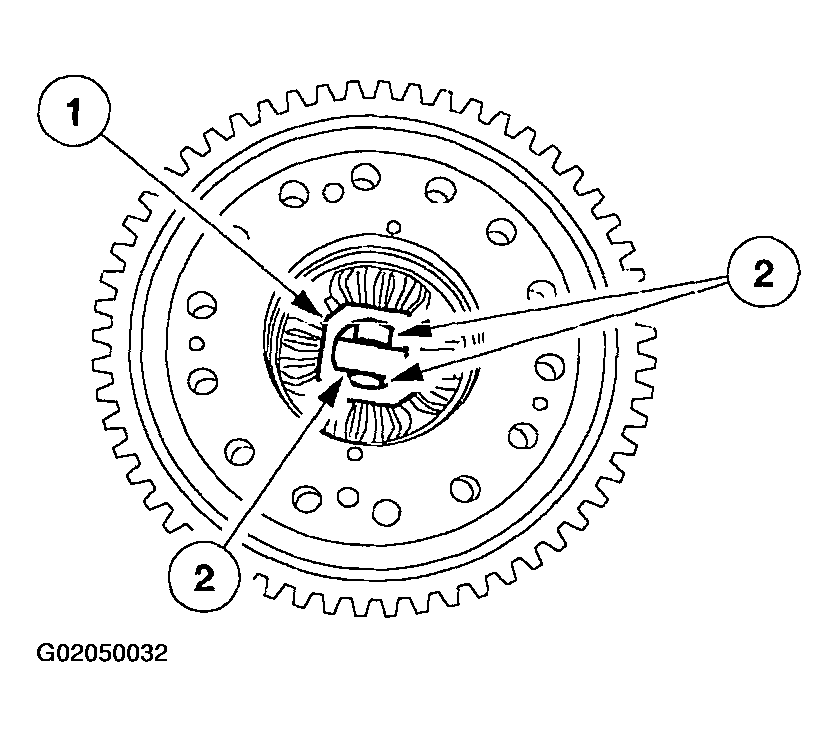

Fig 5: Installing Differential Pinion Shaft Cage
Install the differential pinion shaft lock pins.

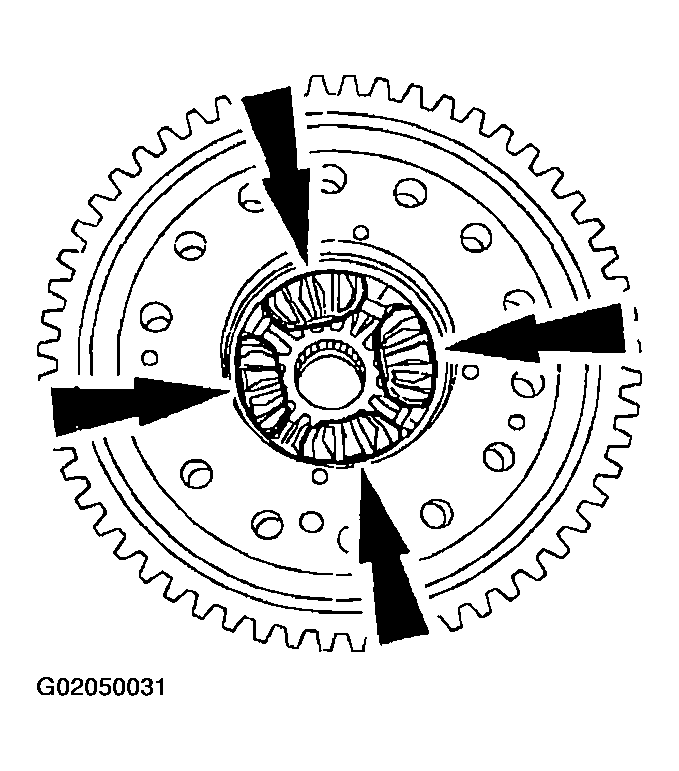

Fig 6: Installing Differential Pinion Shaft Lock Pins
Install the differential side gear thrust washer and differential side gear.

Fig 7: Installing Differential Side Gear Thrust Washer And Differential Side Gear
Install the differential cover.
1. Position the differential cover.
2. Install the differential cover screws.
3. Install the differential cover bolts.

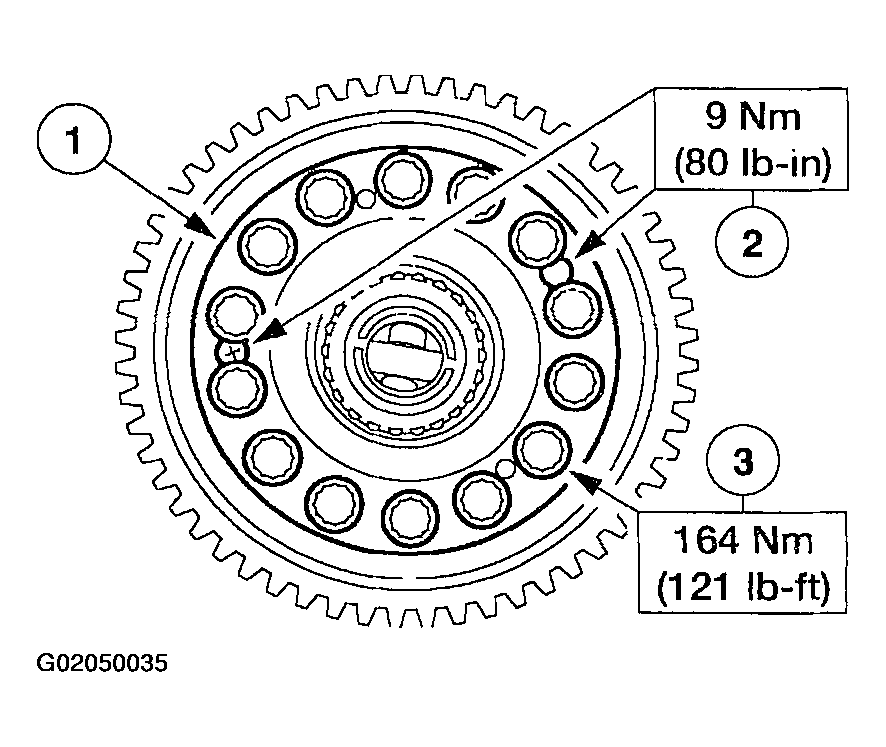

Fig 8: Installing Differential Cover
