Ignition Switch

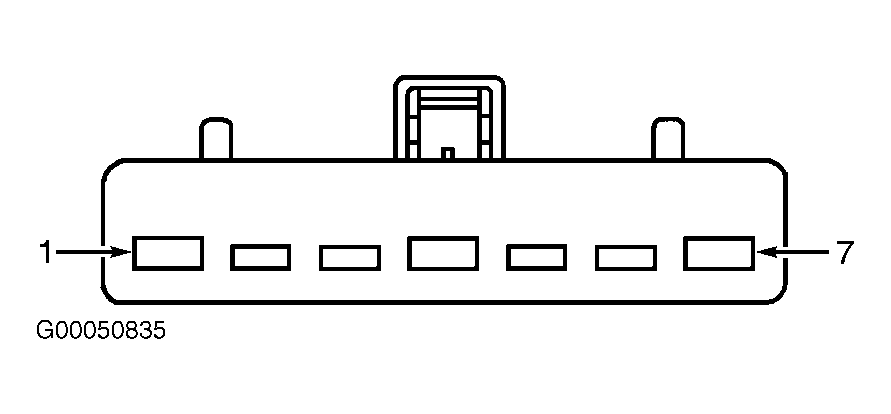

Disconnect ignition switch harness connector. Measure resistance between appropriate ignition switch terminals with switch in specified position. See IGNITION SWITCH RESISTANCE table. See Fig 1 . If resistance is not as specified, replace ignition switch.
IGNITION SWITCH RESISTANCE
| Switch Position | Between Terminals No. | Ohms | |
|---|---|---|---|
| ACC | 4 & 6 | Less Than 5 | |
| RUN | 1 & 4 | Less Than 5 | |
| START | 4 & 7 | Less Than 5 | |
