Battery Junction Box

NOTE: Battery junction box may also be referred to as power distribution box. Battery junction box is located on driver's side of engine compartment. See Fig 1 and Fig 2 .

Fig 1: Locating Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 2: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

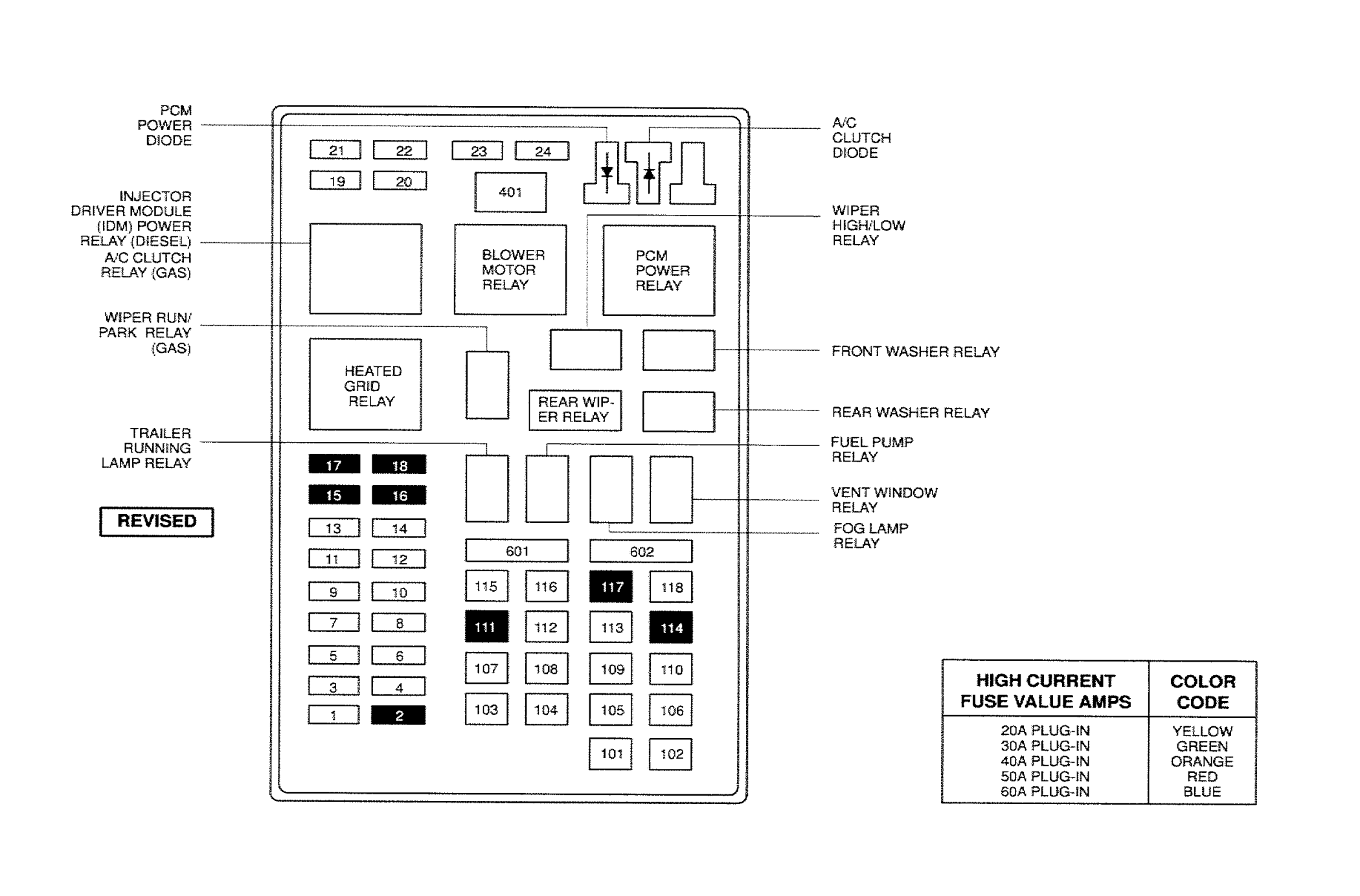

Fig 3: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

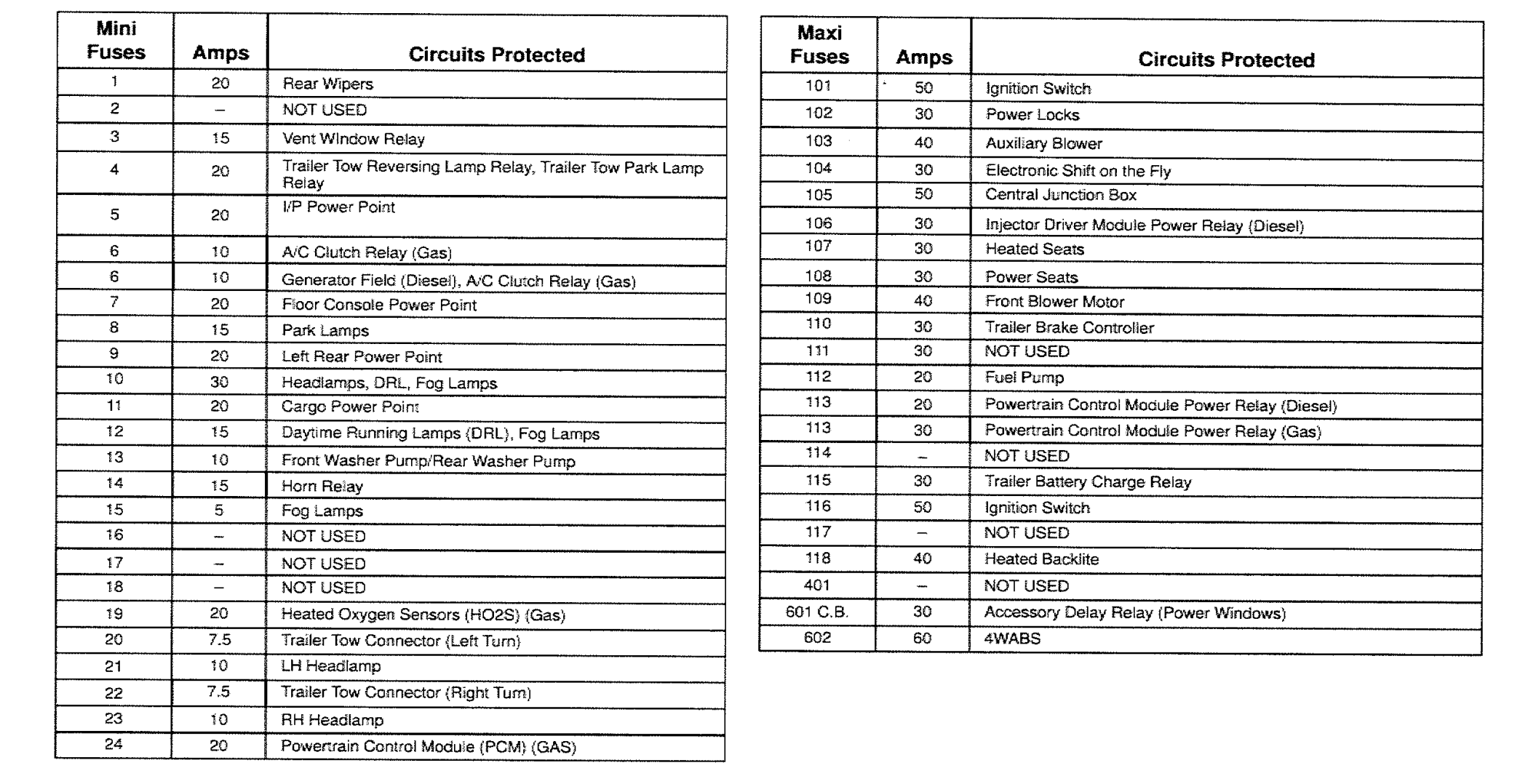

Fig 4: Battery Junction Box Legend

Courtesy of FORD MOTOR CO.
