Central Junction Box

NOTE: Cental junction box may also be referred to as passenger compartment fuse panel. Central junction box is located under driver's side of instrument panel. See Fig 1 and Figure .

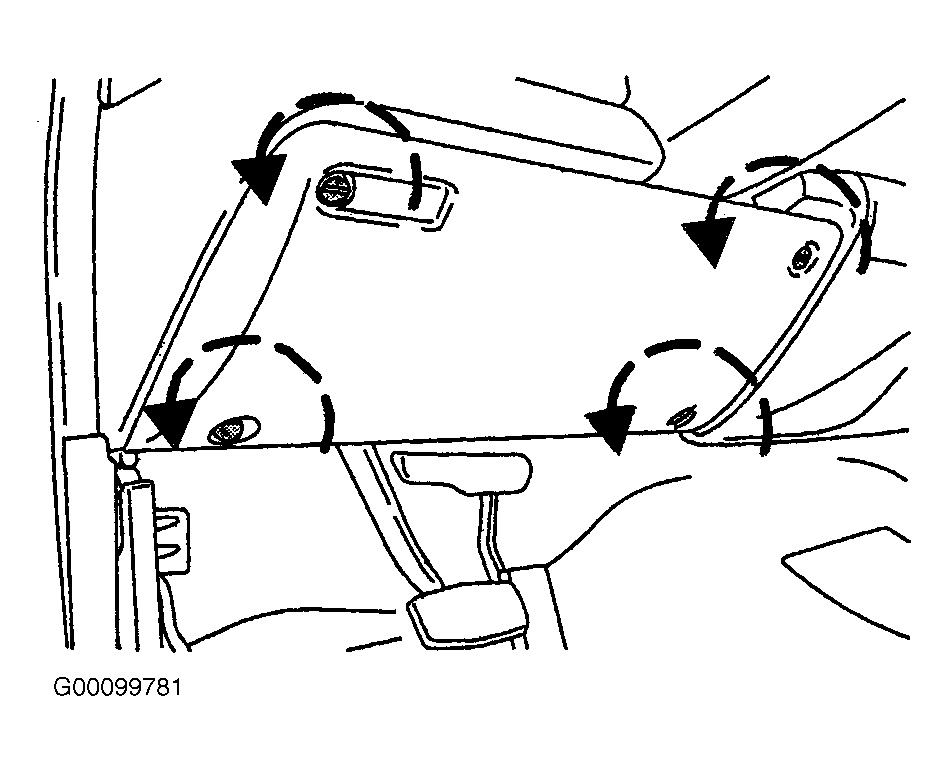

Fig 1: Accessing Central Junction Box

Courtesy of FORD MOTOR CO.

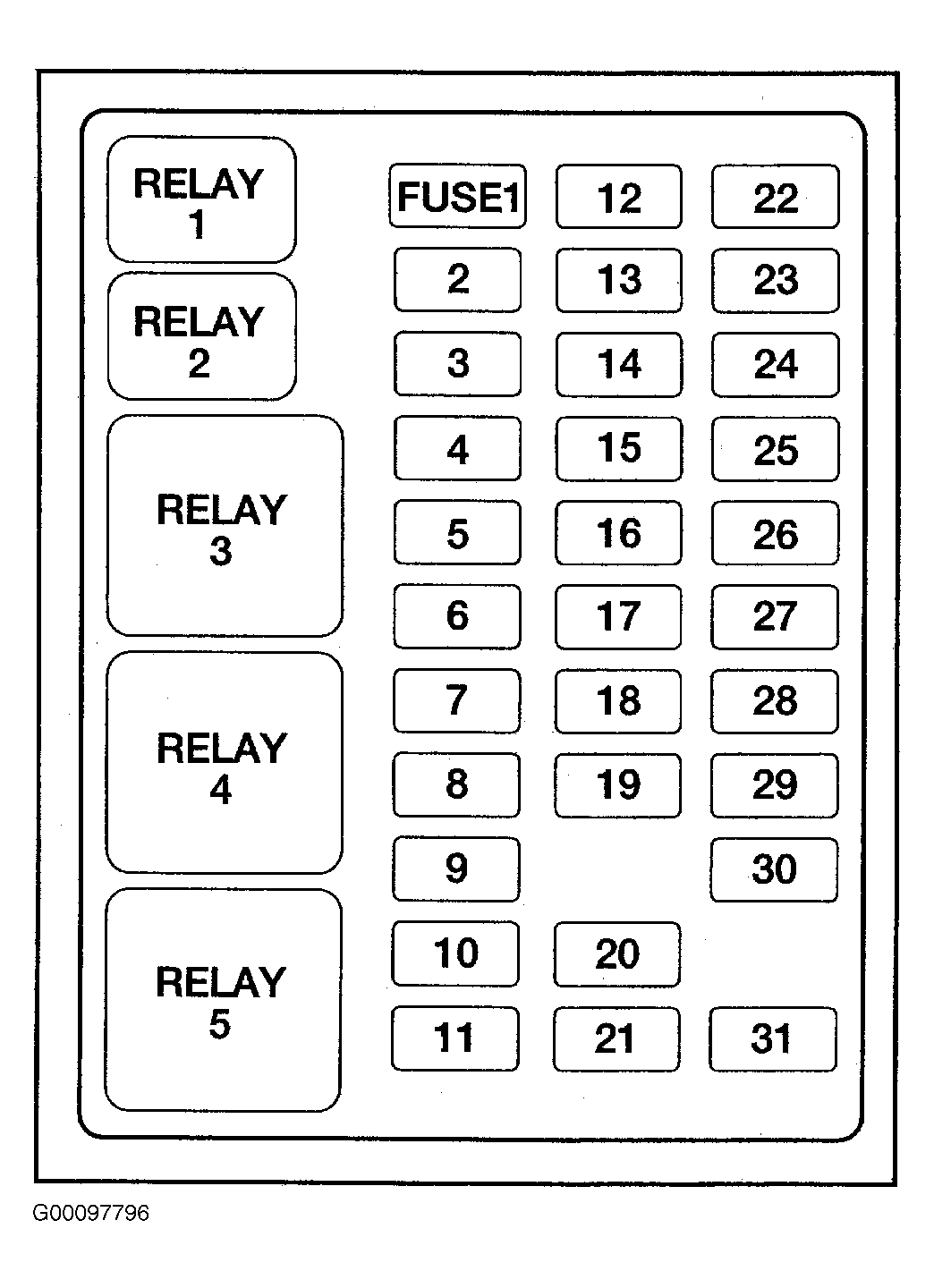

Fig 2: Identifying Cental Junction Box Components

Courtesy of FORD MOTOR CO.

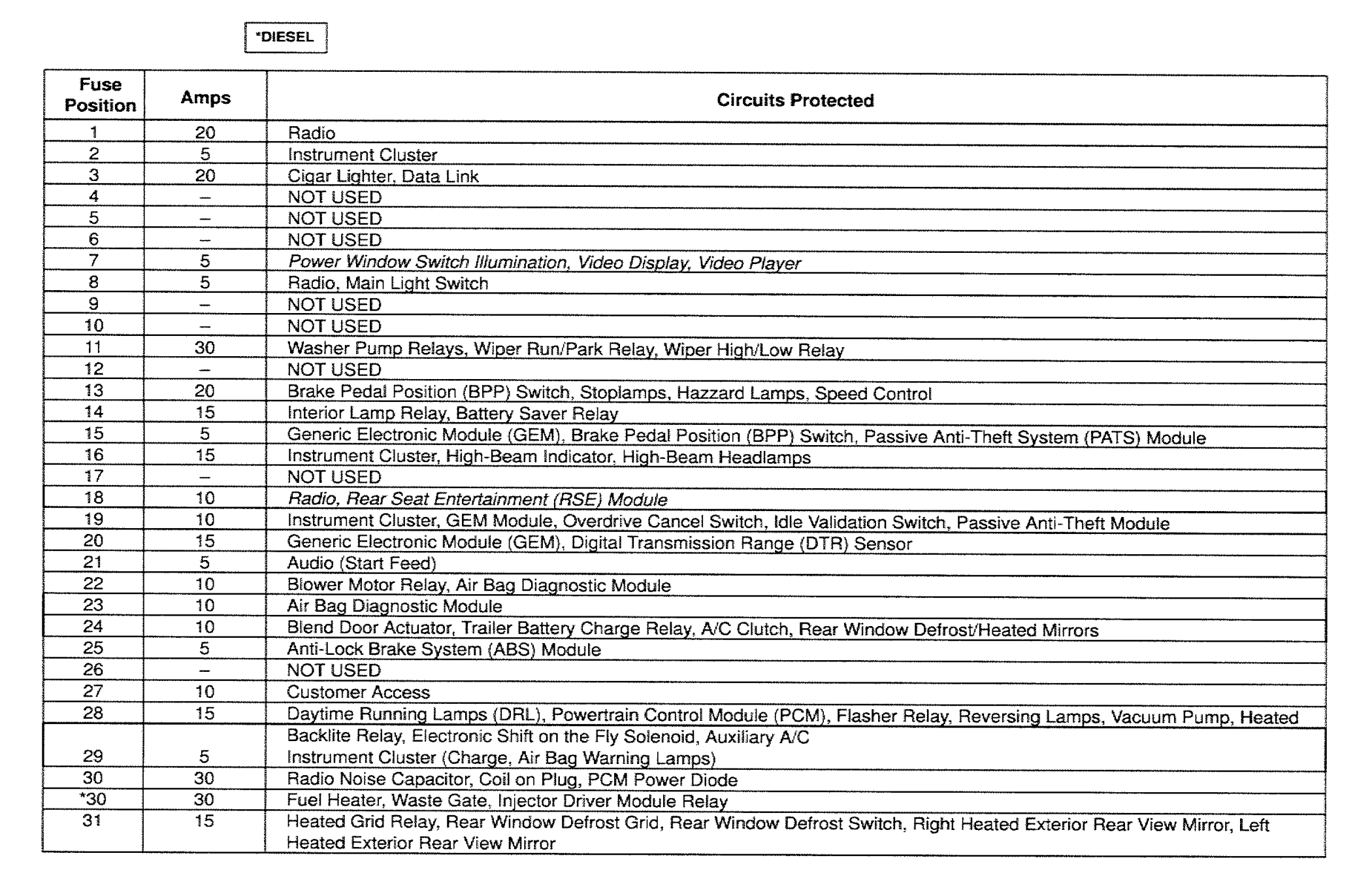

Fig 3: Cental Junction Box Legend

Courtesy of FORD MOTOR CO.
