Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

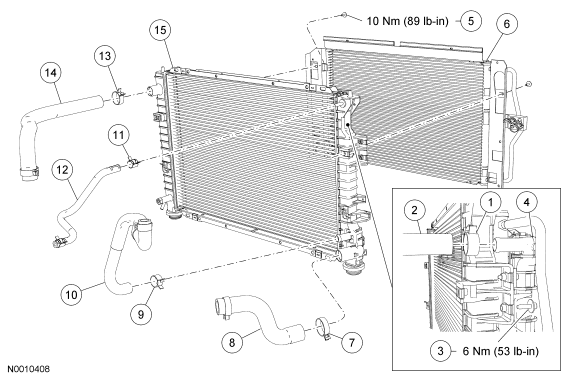

| Item | Part Number | Description |
|---|---|---|
| 1 | W527371 | Clamp |
| 2 | 8B274 | Motor electronics upper radiator hose |
| 3 | N606676 | Motor electronics radiator-to-engine radiator bolt (2 required) |
| 4 | 8005 | Motor electronics radiator |
| 5 | N606676 | A/C condenser-to-radiator bolt (2 required) |
| 6 | 19710 | A/C condenser |
| 7 | W527324 | Clamp |
| 8 | 8B273 | Lower radiator hose |
| 9 | W527362 | Clamp |
| 10 | 8C633 | Degas bottle return hose |
| 11 | W525851 | Clamp |
| 12 | 8W005 | Engine coolant vent hose |
| 13 | W527371 | Clamp |
| 14 | 8B274 | Upper radiator hose |
| 15 | 8005 | Radiator |
