Component Locations

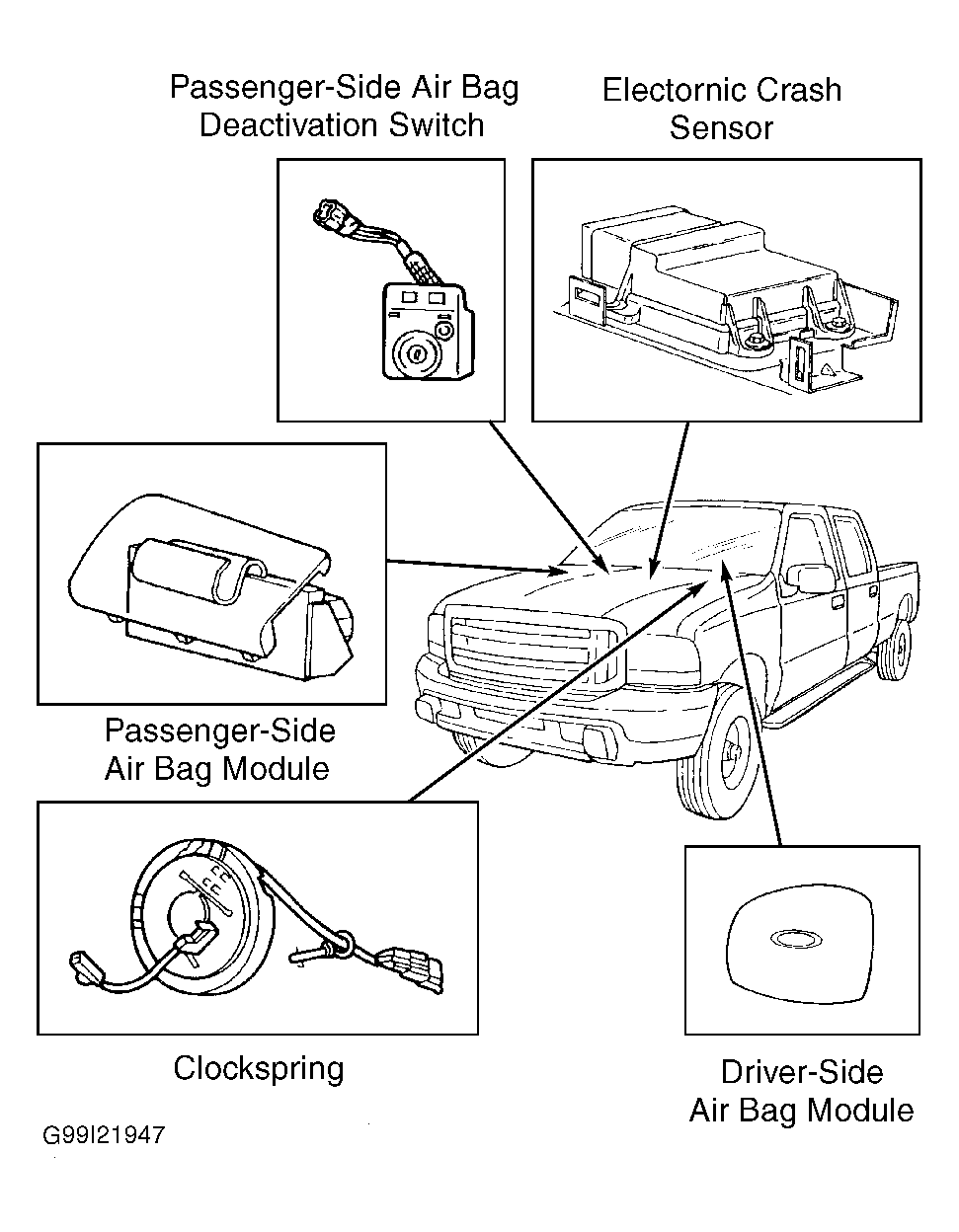

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Electronic crash sensor | On tunnel, below center of instrument panel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Passenger-Side Air Bag Deactivate (PAD) switch | Center of instrument panel | ||
| Seat belt pretensioners | Front seat belt retractor or seat belt buckle | ||
|
|||
