Battery Junction Box

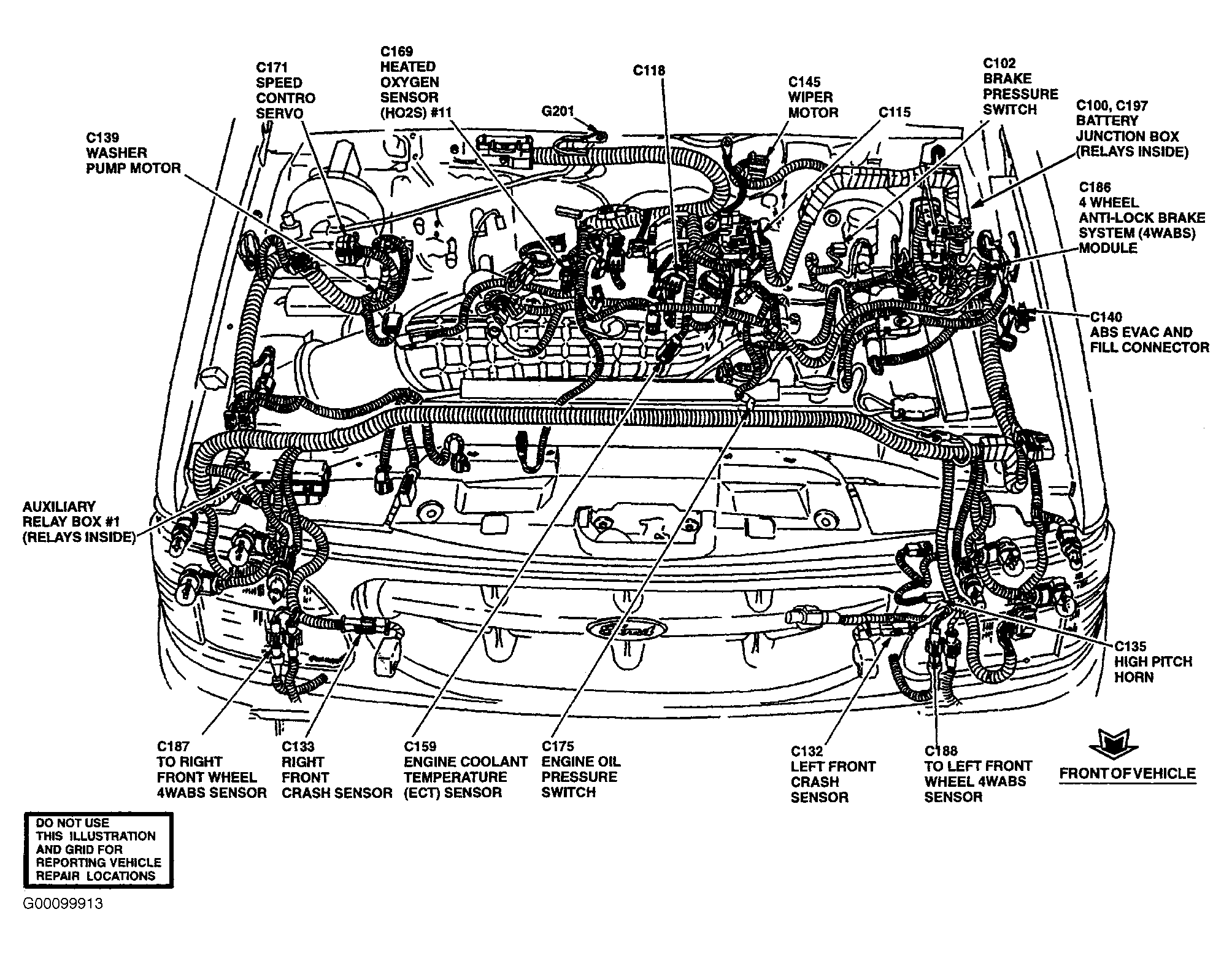

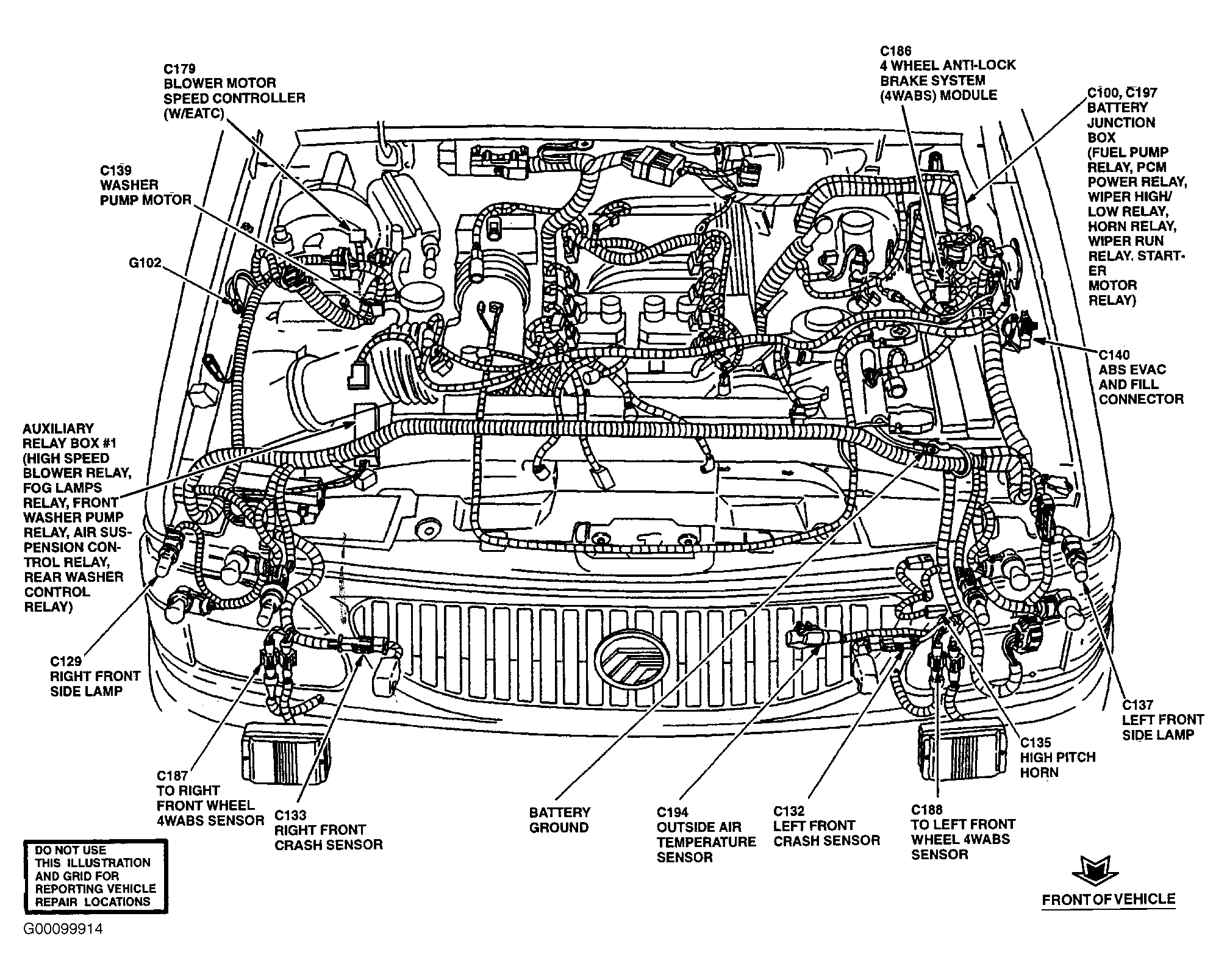

NOTE: Battery junction box is located on passenger's side of engine compartment, near brake master cylinder. See Figure, Figure or Fig 1 .

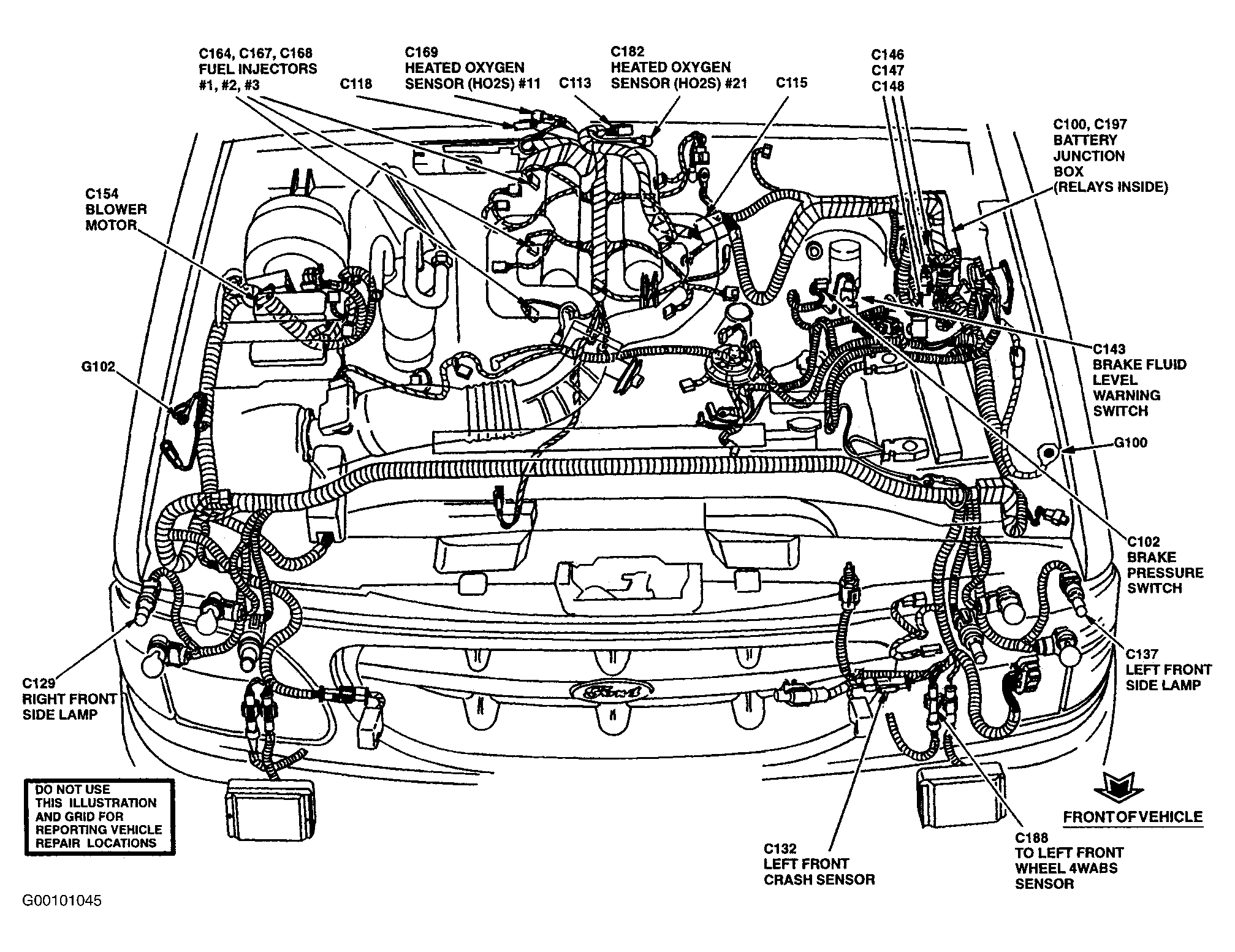

Fig 1: Engine Compartment (4.0L - SOHC)

Courtesy of FORD MOTOR CO.

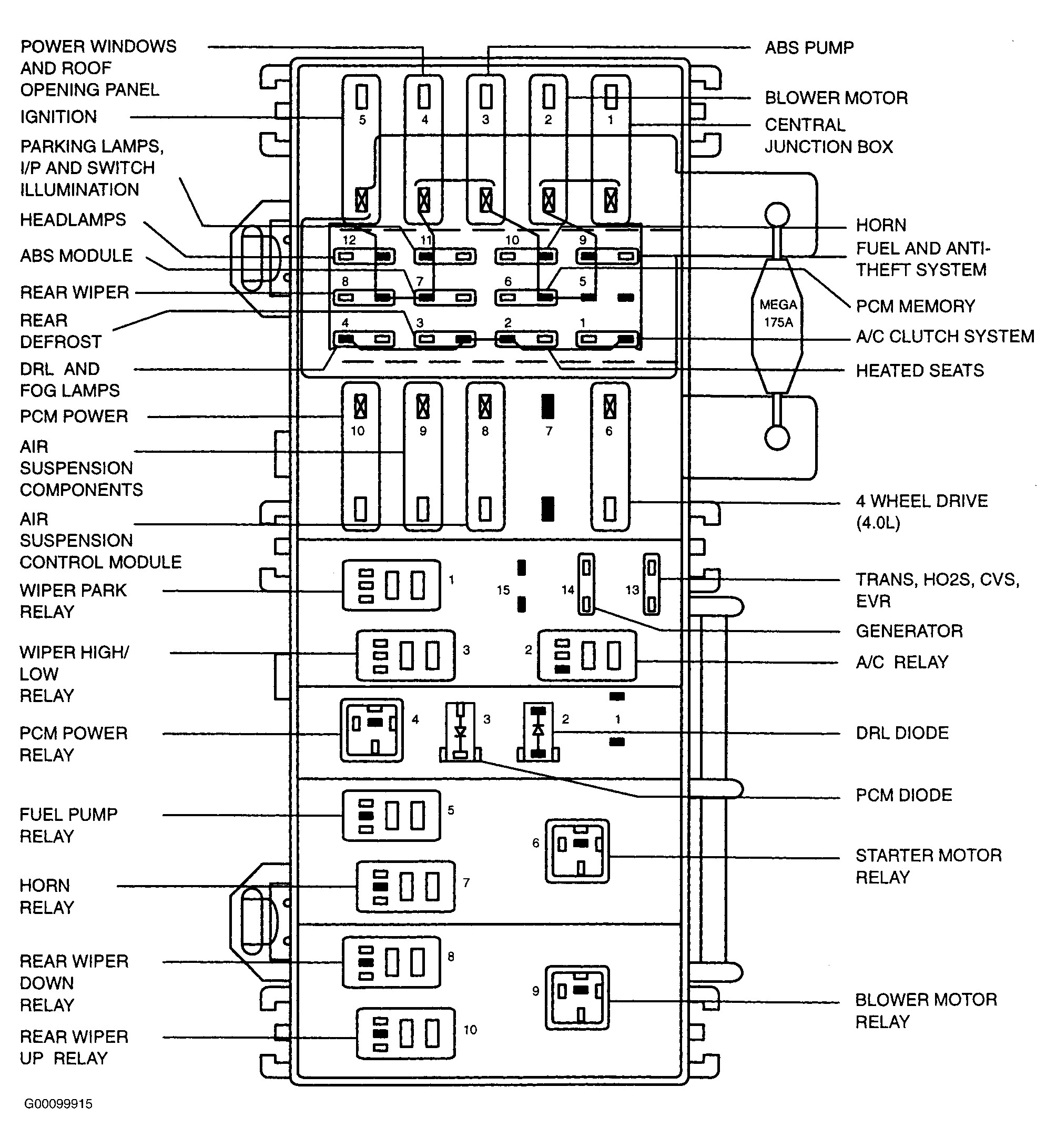

Fig 2: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

Fig 3: Battery Junction Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

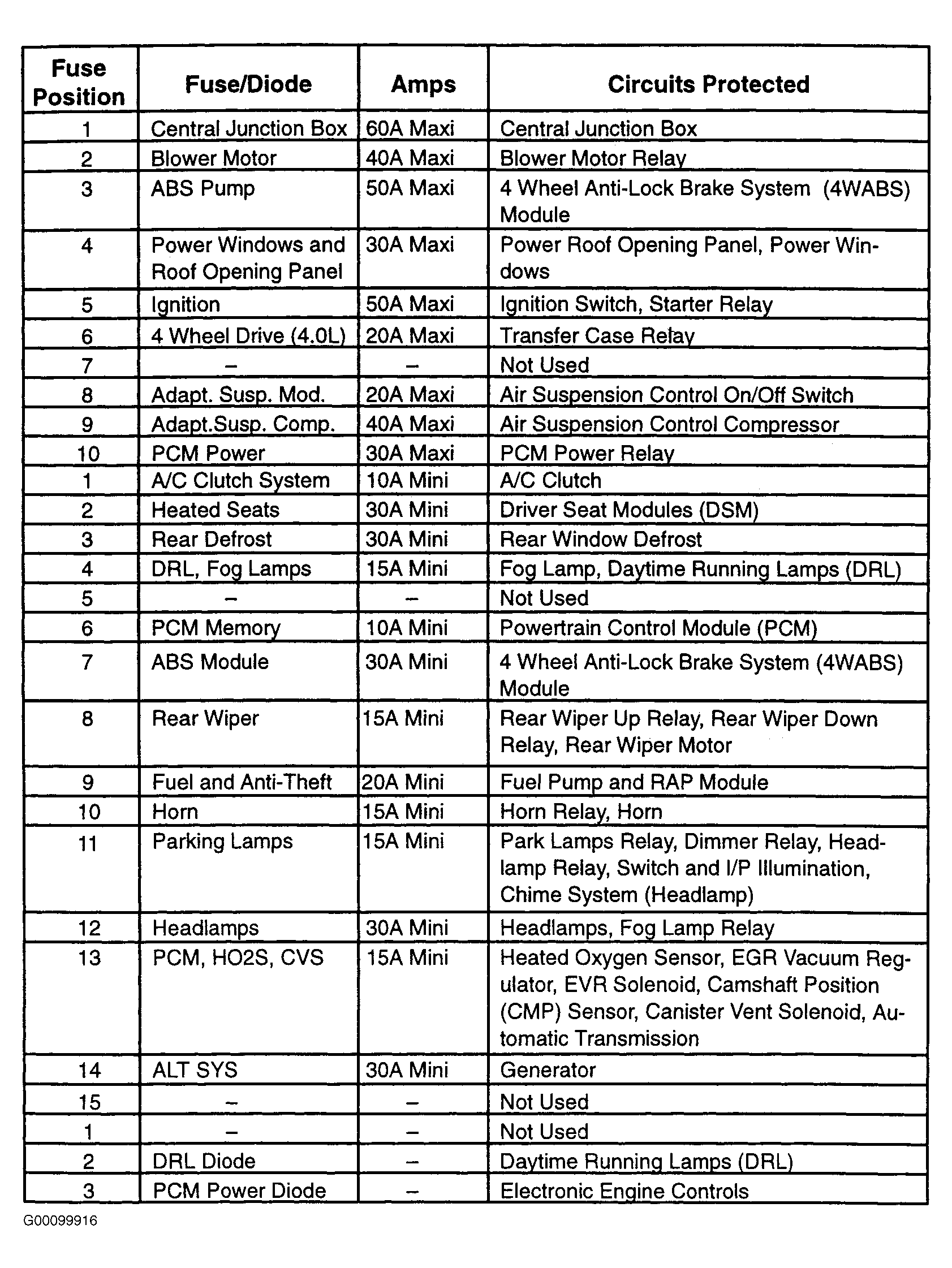

Fig 4: Battery Junction Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
