Central Junction Box

NOTE: Central junction box is located on driver's side end of instrument panel. See Fig 1.

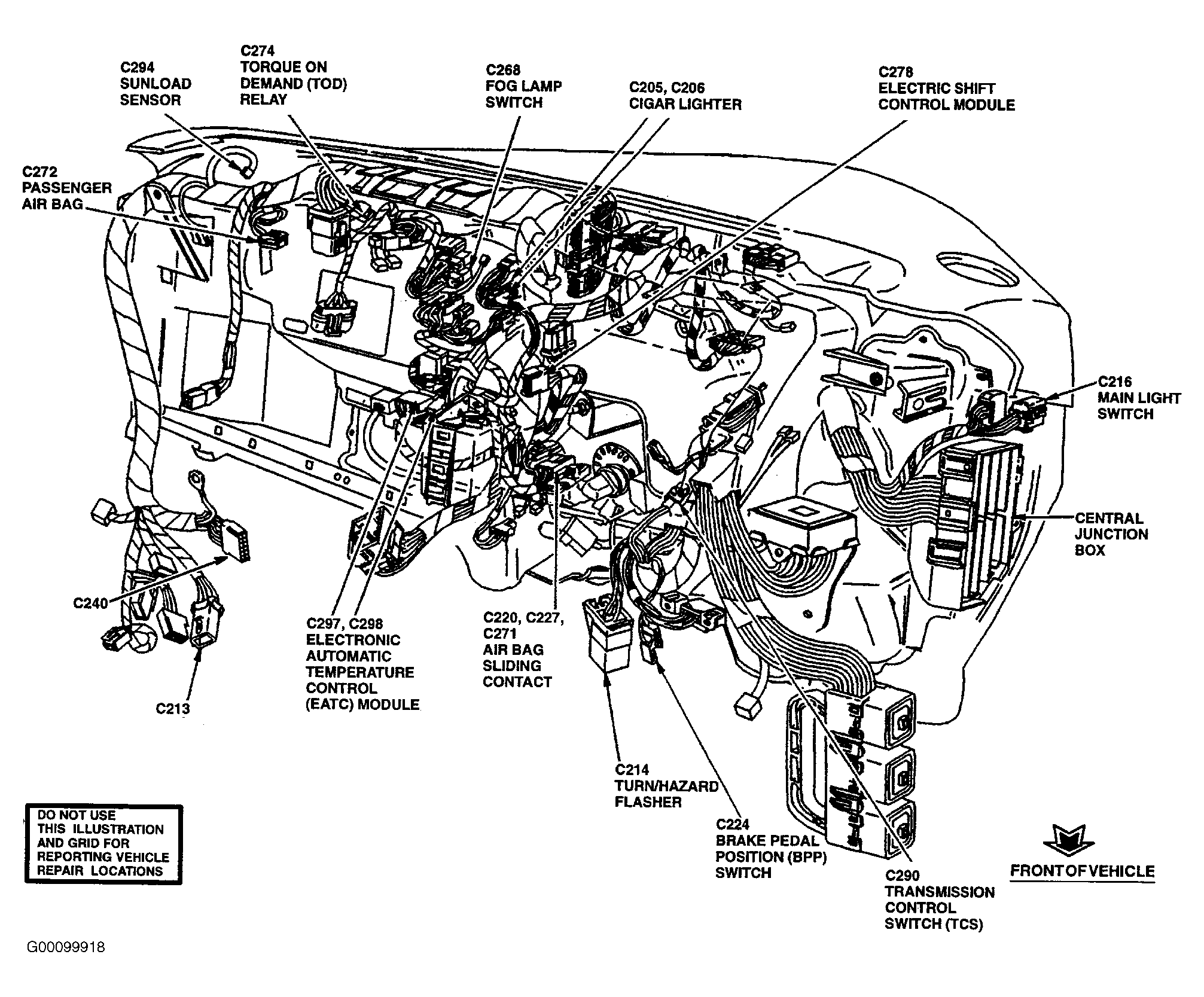

Fig 1: Locating Central Junction Box

Courtesy of FORD MOTOR CO.

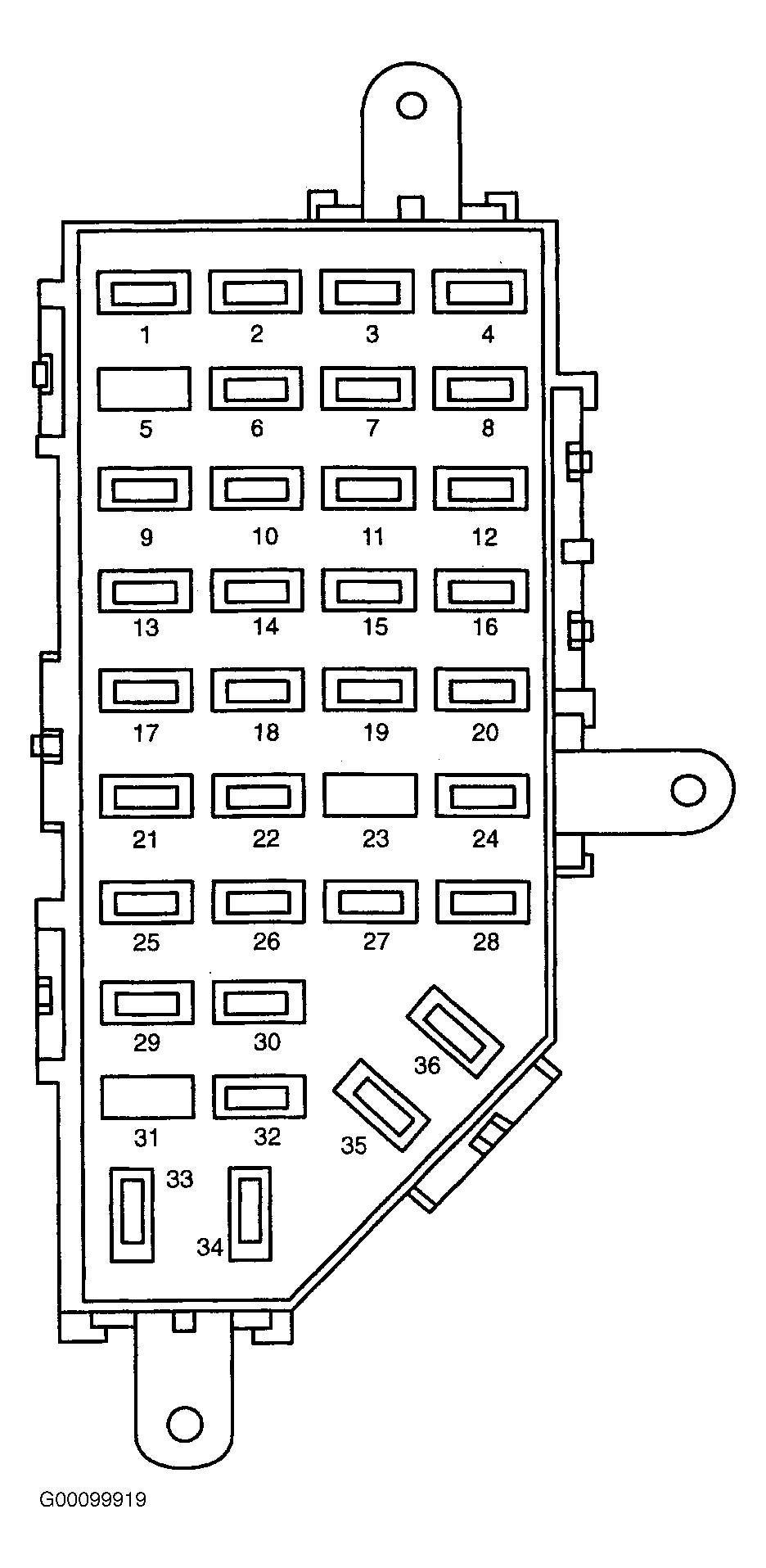

Fig 2: Identifying Central Junction Box Fuses

Courtesy of FORD MOTOR CO.

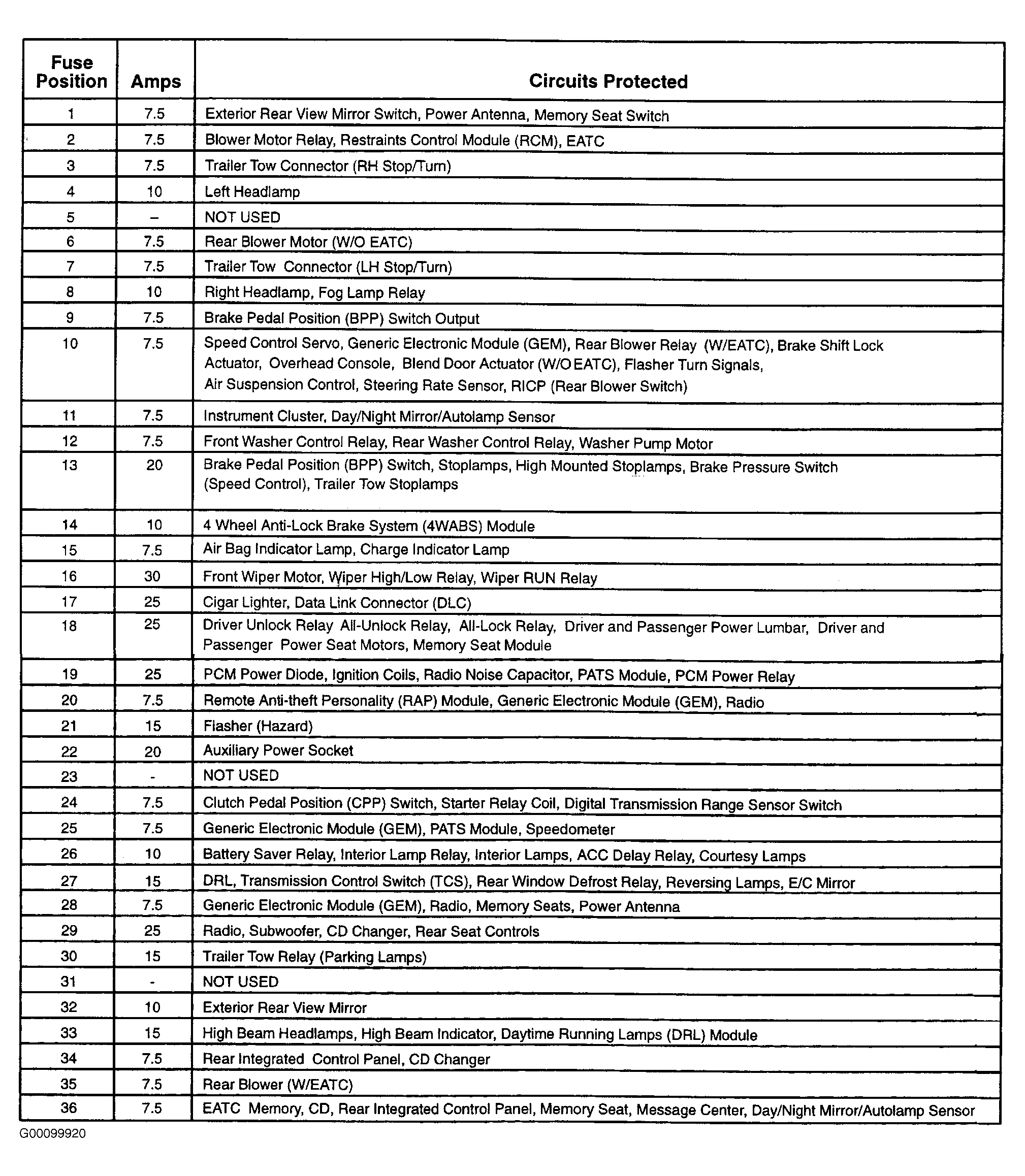

Fig 3: Central Junction Box Legend

Courtesy of FORD MOTOR CO.
