Mode 6 - 2001 Ford - Except Diesel
›
Catalyst Monitor
Catalyst Monitor

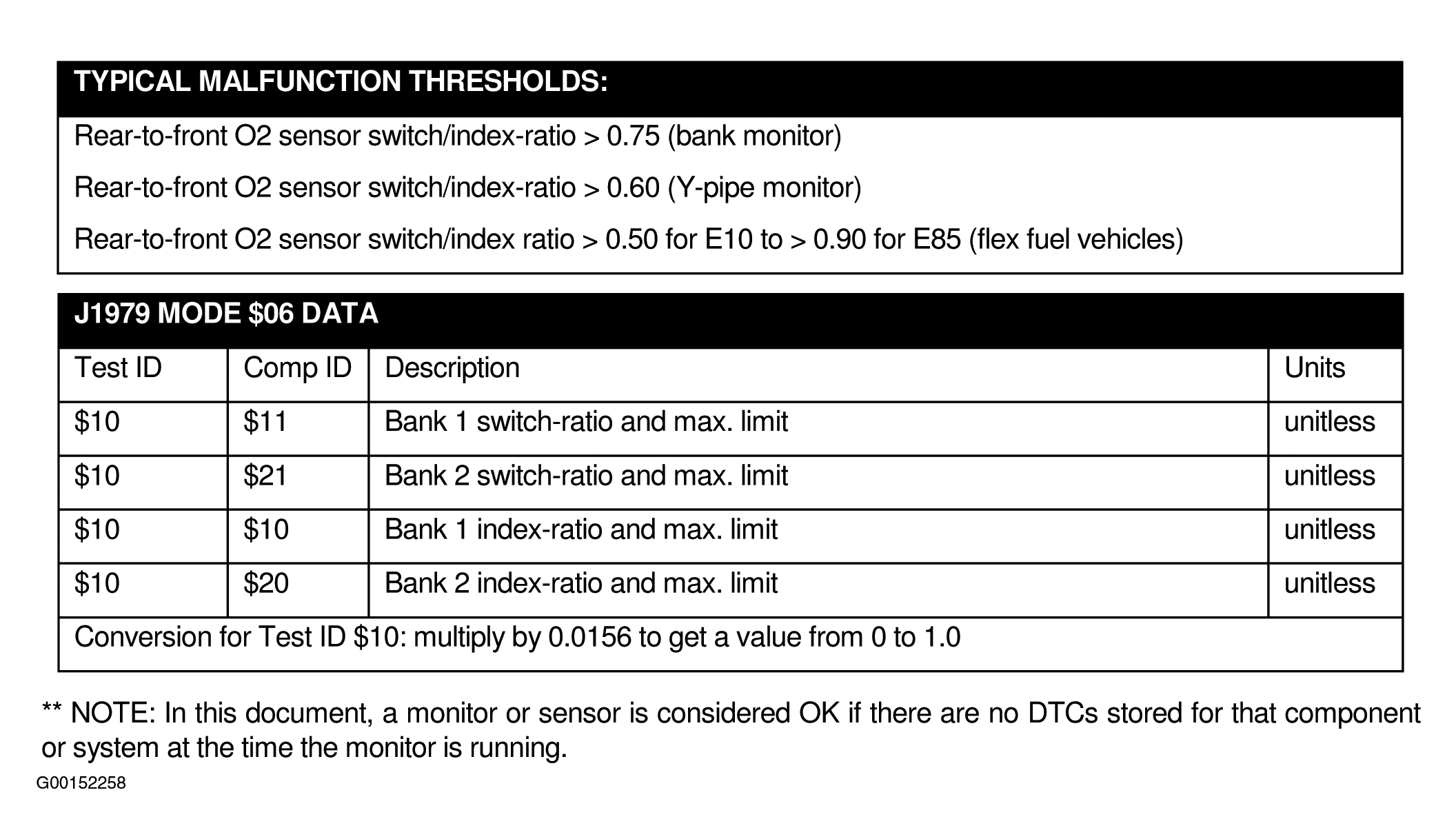

Fig 1: Mode $06 Data For Catalyst Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
