Maintenance Specifications

CAUTION: Use only MERCON® V Automatic Transmission Fluid XT-5-QM or equivalent meeting Ford specification MERCON® V. Use of any other fluids can result in a transmission malfunction or failure.

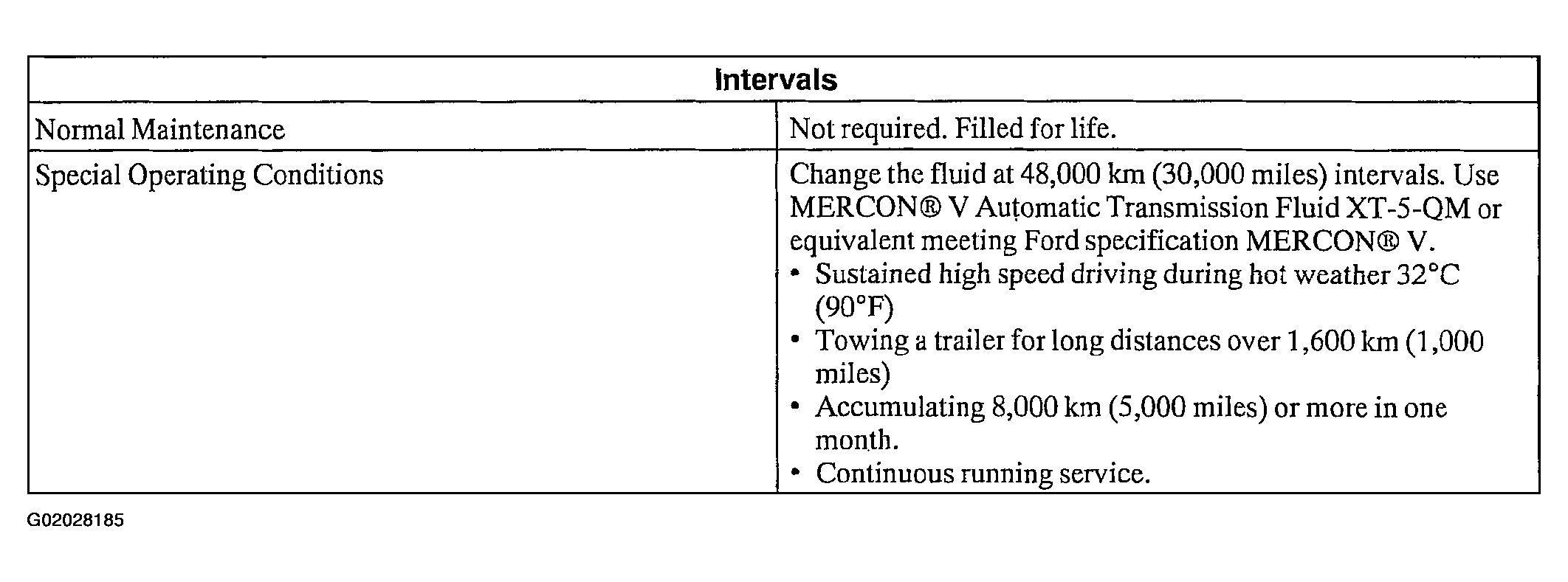

Fig 1: Fluid Maintenance Intervals Chart

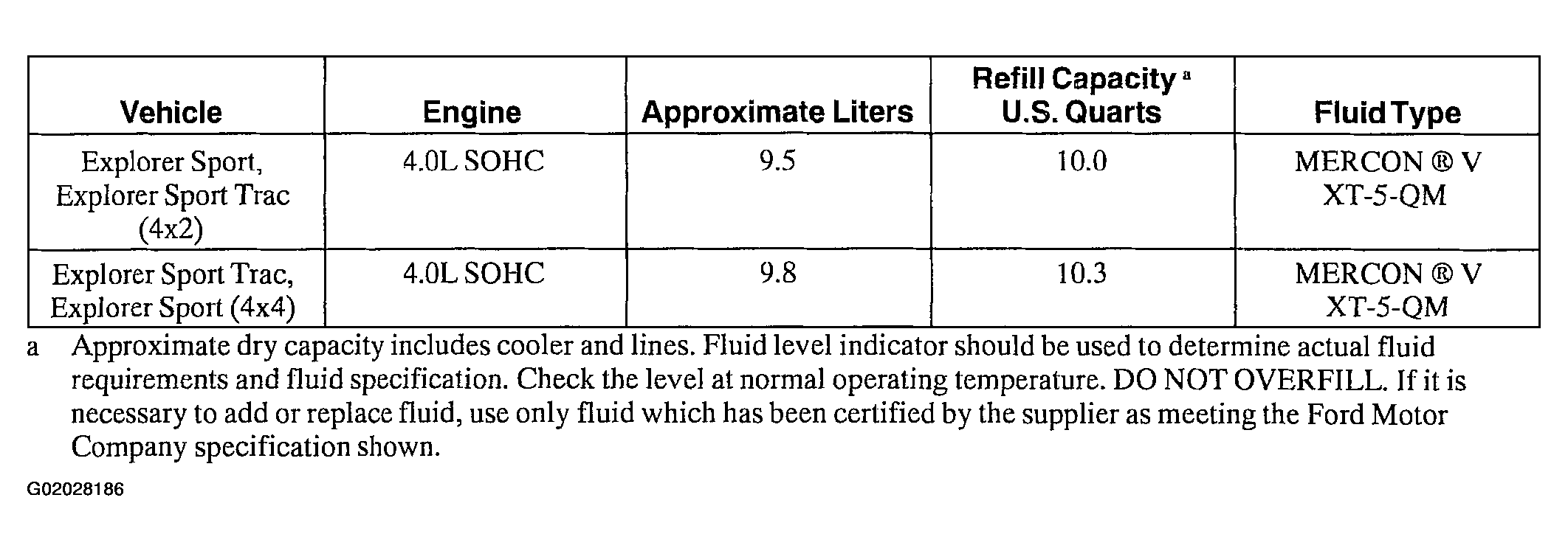

Fig 2: General Fluid Specifications (1 Of 2)

Fig 3: General Fluid Specifications (2 Of 2)
