Axle Code

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

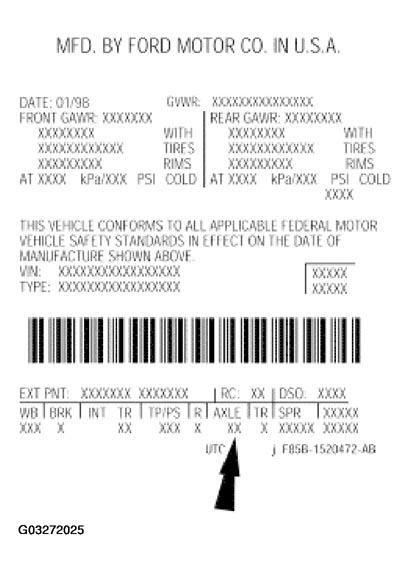

Fig 1: Identifying Axle Code

Courtesy of FORD MOTOR CO.

The following lists the gear ratios on axles.

86 - 3.73 non-limited slip (7.5-inch)
87 - 4.10 non-limited slip (7.5-inch)
95 - 3.55 non-limited slip (8.8-inch)
96 - 3.73 non-limited slip (8.8-inch)
97 - 4.10 non-limited slip (8.8-inch)
F6 - 3.73 limited slip (7.5-inch)
R5 - 3.55 limited slip (8.8-inch)
R6 - 3.73 limited slip (8.8-inch)
R7 - 4.10 limited slip (8.8-inch)
