Component Locations

RESTRAINT SYSTEM COMPONENT LOCATIONS

Component

⁽¹⁾Location

Clockspring

On steering column, behind steering wheel

Driver-side air bag module

Center of steering wheel

Passenger-side air bag module

Right side of instrument panel, above glove box

Restraints Control Module (RCM)

Under center console, forward of hand brake

Seat belt buckle pretensioner⁽²⁾

Integrated with front seat belt buckle

Seat belt retractor pretensioner⁽²⁾

Integrated with front seat belt retractors

Side air bag crash sensors

On support, under front seats

Side air bag modules

Behind outboard bolster of front seat backs

⁽¹⁾	See Fig 1.

⁽²⁾	Type of seat belt pretensioner is dependent on model of vehicle.

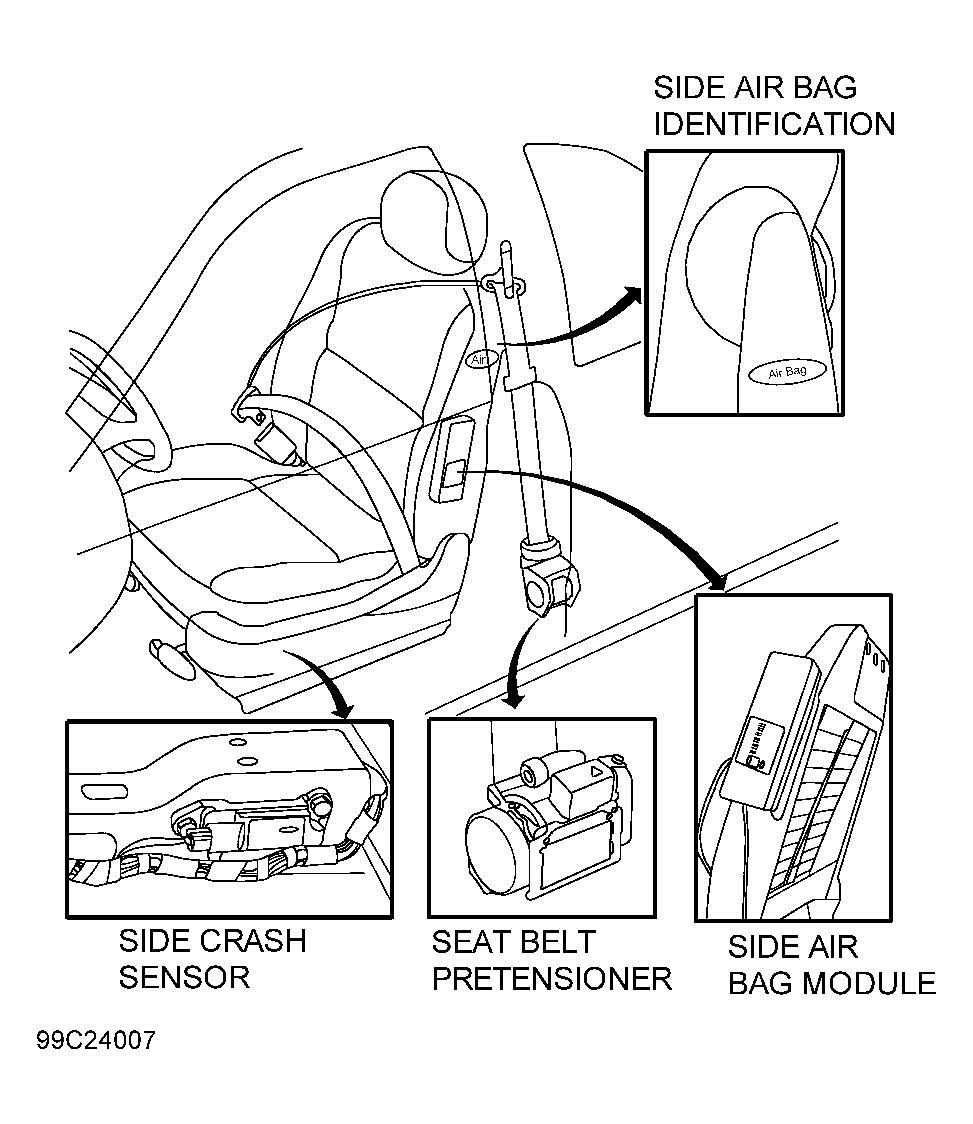

Fig 1: Locating Restraint System Components (1 Of 2)

Courtesy of FORD MOTOR CO.

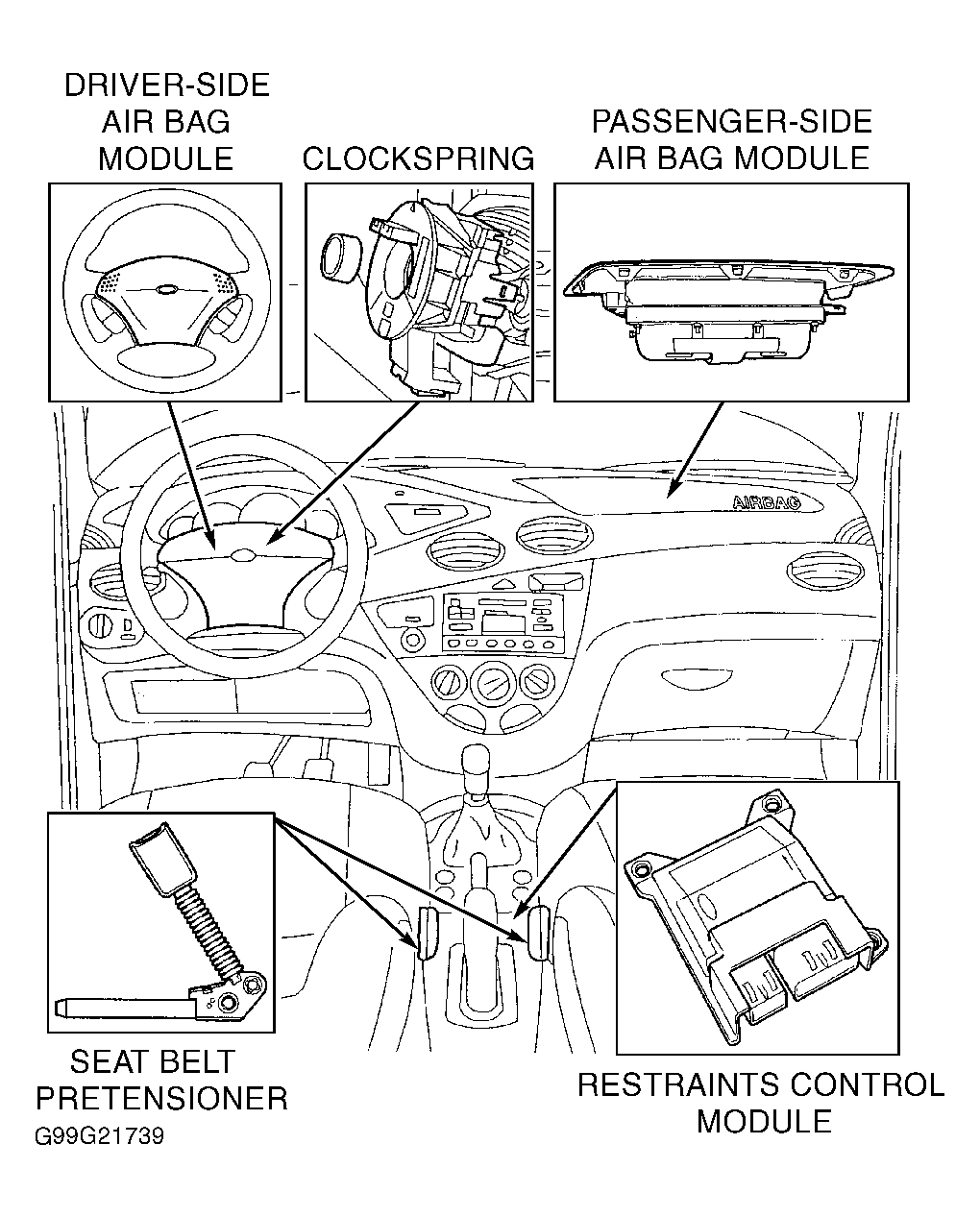

Fig 2: Locating Restraint System Components (2 Of 2)

Courtesy of FORD MOTOR CO.
