Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Electronic Pressure Control Solenoid | Mounted To Valve Body. See Figure . |

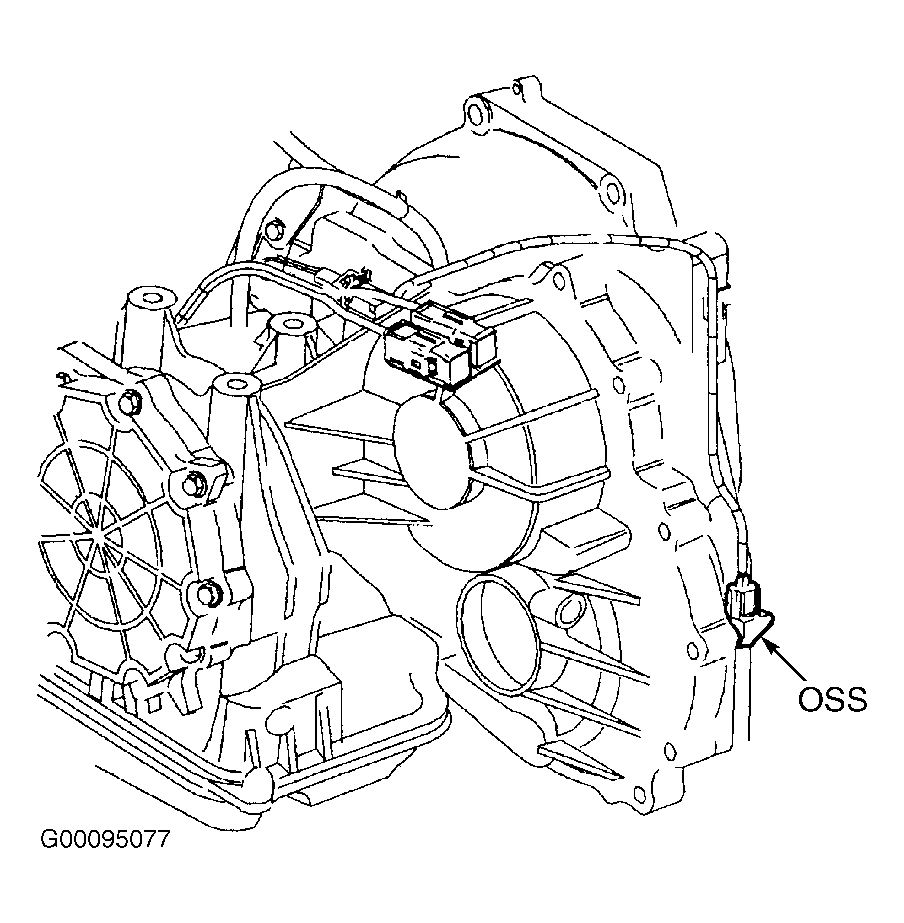

| Output Shaft Speed Sensor | See Fig 1 . |
| Powertrain Control Module | Under Passenger Side Kick Panel |

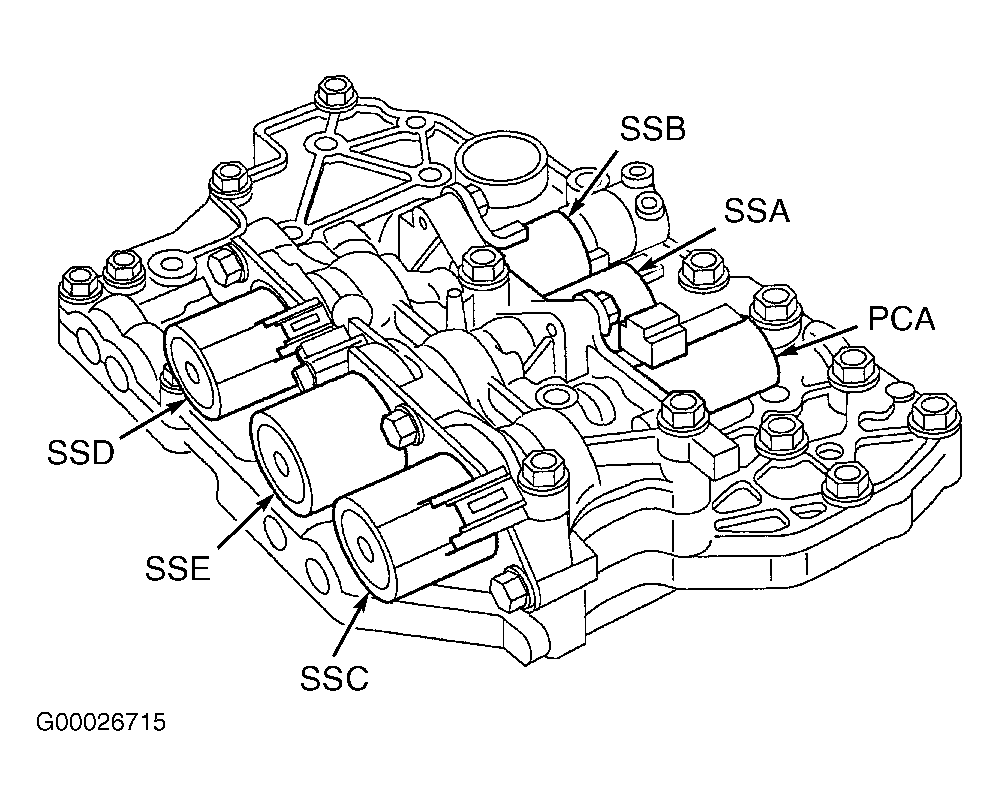

| Shift Solenoids (SSA, SSB, SSC, SSD & SSE) | Mounted To Valve Body. See Figure . |
| Throttle Position Sensor | Mounted On Side Of Throttle Body |

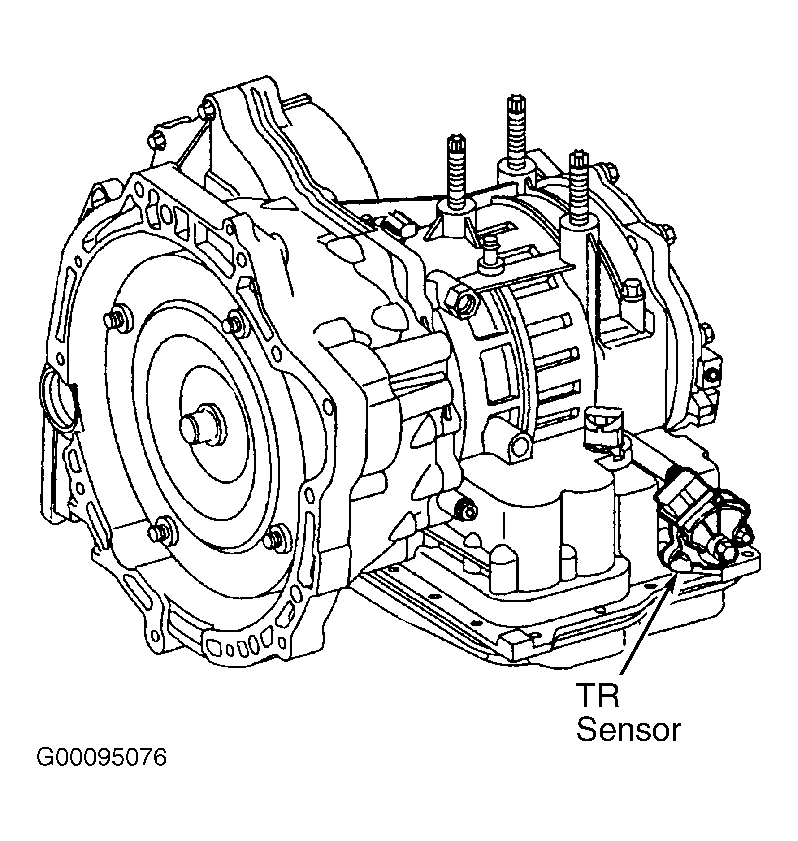

| Transmission Range Switch | See Fig 2 . |
