Connector Identification

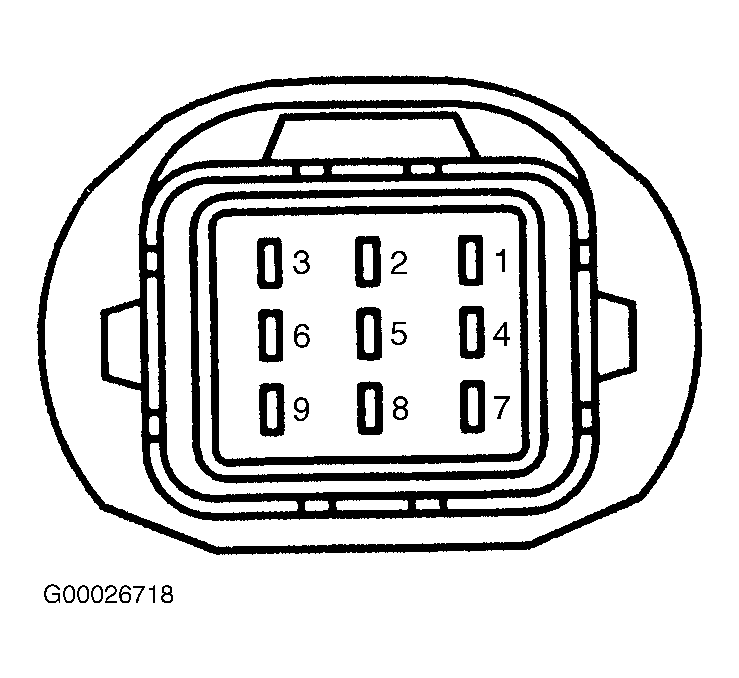

Fig 1: Identifying Transaxle 9-Pin Harness Connector Terminals (Harness Side)
G00026718Courtesy of FORD MOTOR CO.
Fig 2: Identifying Powertrain Control Module 104-Pin Harness Connector Terminals
G96E01148Courtesy of FORD MOTOR CO.
