Apply Components: Clutch-Direct

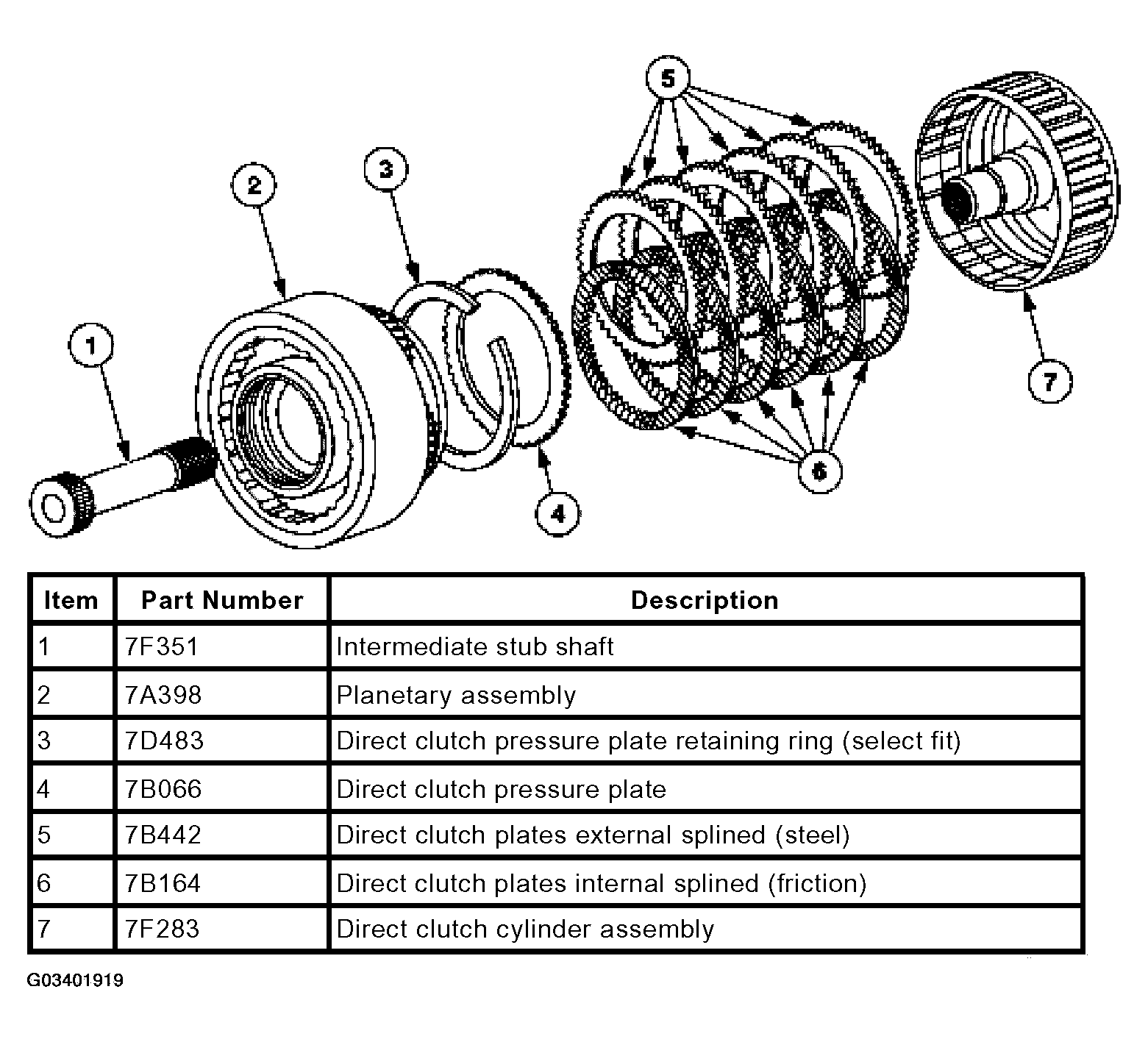

Fig 1: Identifying Clutch Direct
G03401919Courtesy of FORD MOTOR CO.

The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
