Removal and Installation

  1. Raise and support the vehicle.
  2. Support the transmission with a suitable transmission jack.
  3. Remove the crossmember.
    1. Disconnect the HO2S sensors and position them aside.
    2. Remove the bolts from the crossmember to the extension housing.
    3. Remove the bolts from the crossmember to the body and remove the crossmember.

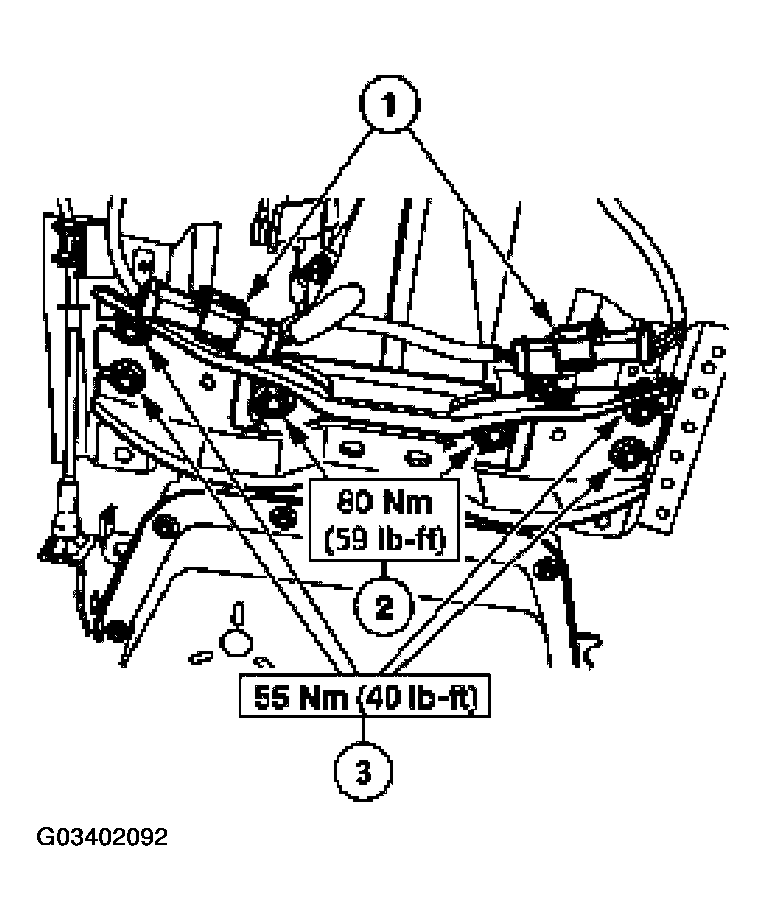

      Fig 1: Removing Bolts From Crossmember To Extension Housing
      G03402092Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
