Removal And Installation: Bezel: Removal

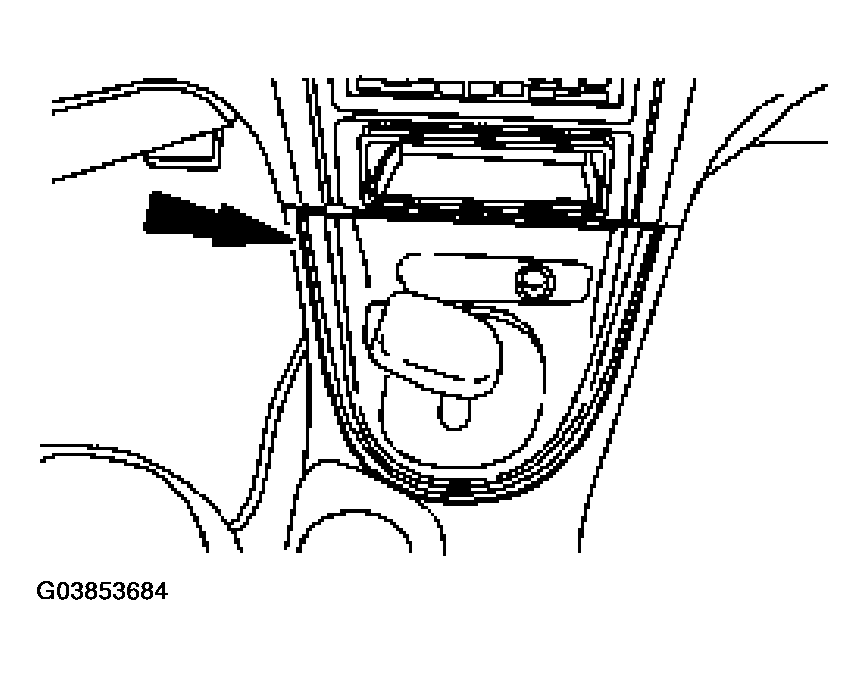

Remove the shifter top control panel.

Fig 1: Removing Shifter Top Control Panel

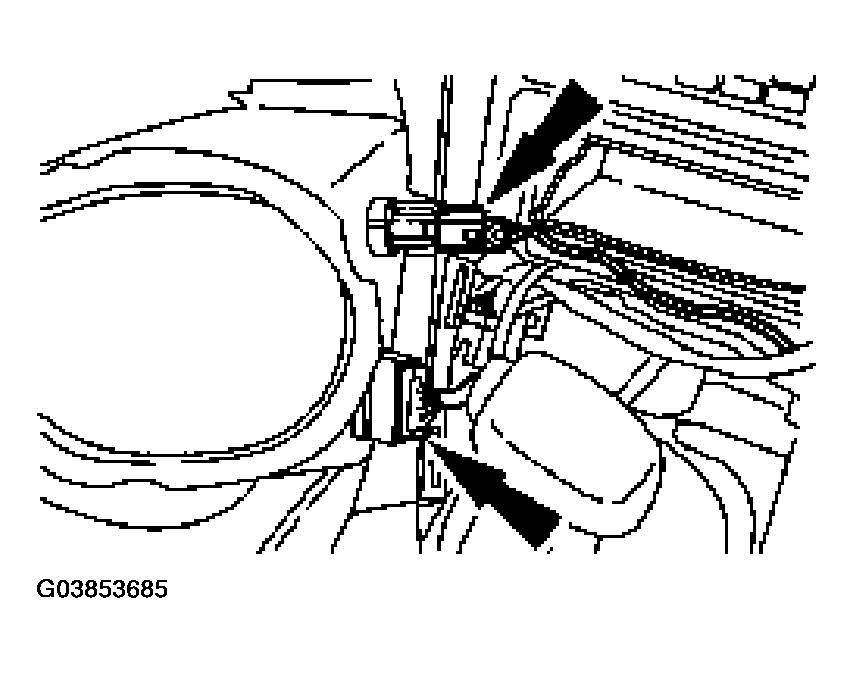

Disconnect the electrical connectors.

Fig 2: Disconnecting Electrical Connectors

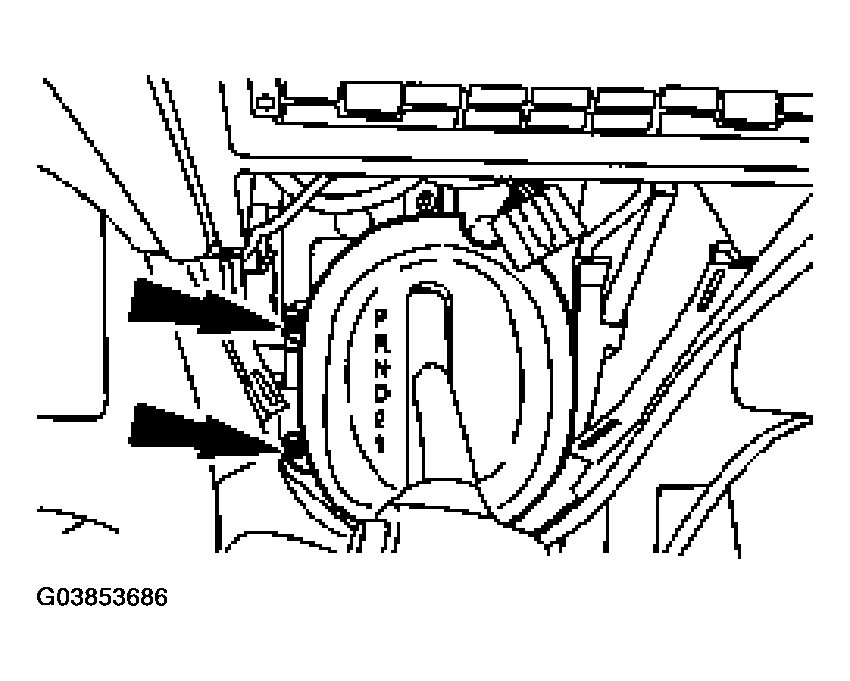

Remove the shifter bezel.

Fig 3: Removing Shifter Bezel

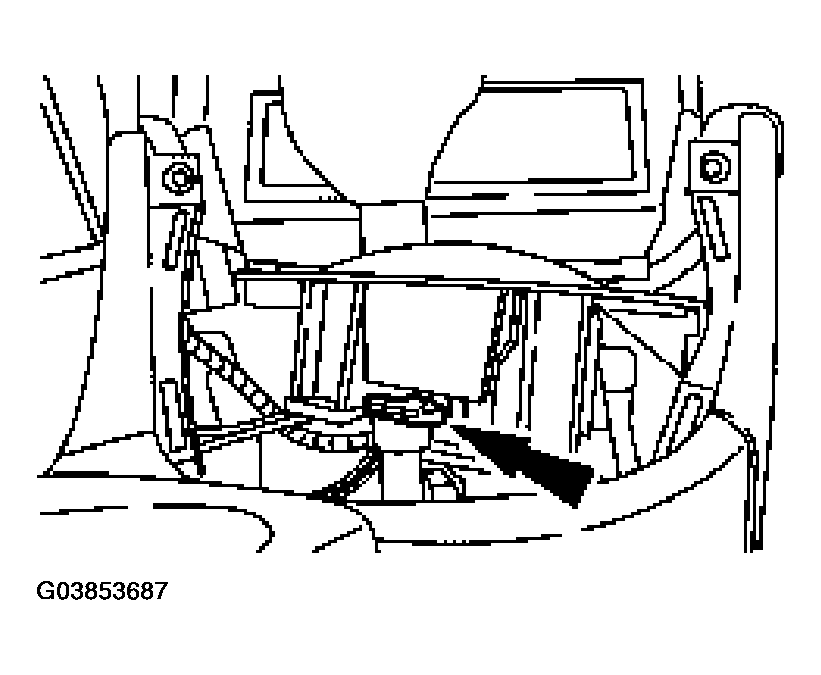

Remove the bulb from the bezel.

Fig 4: Removing Bulb From Bezel
Disconnect the connector.

Fig 5: Disconnecting Connector

CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled out of the switch.

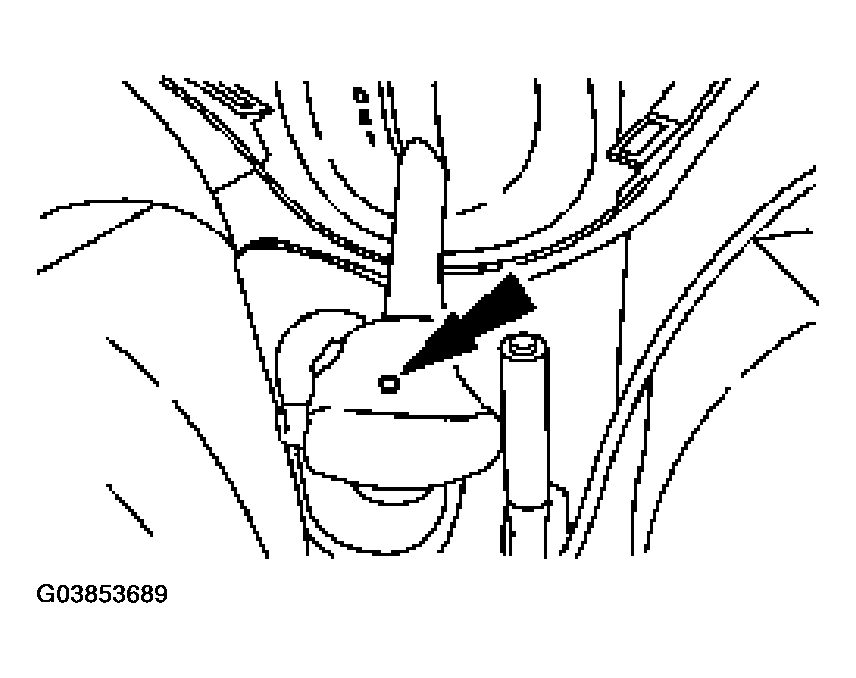

Fig 6: Removing Screw And Handle

Remove the screw and the handle.
Remove the bezel.
