Section 917 (Cruise Control System)
›
Diagnosis And Testing
›
Speed Control
›
Connector Circuit Reference
›
Powertrain Control Module (PCM) C175e
Powertrain Control Module (PCM) C175e
WARNING:
This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

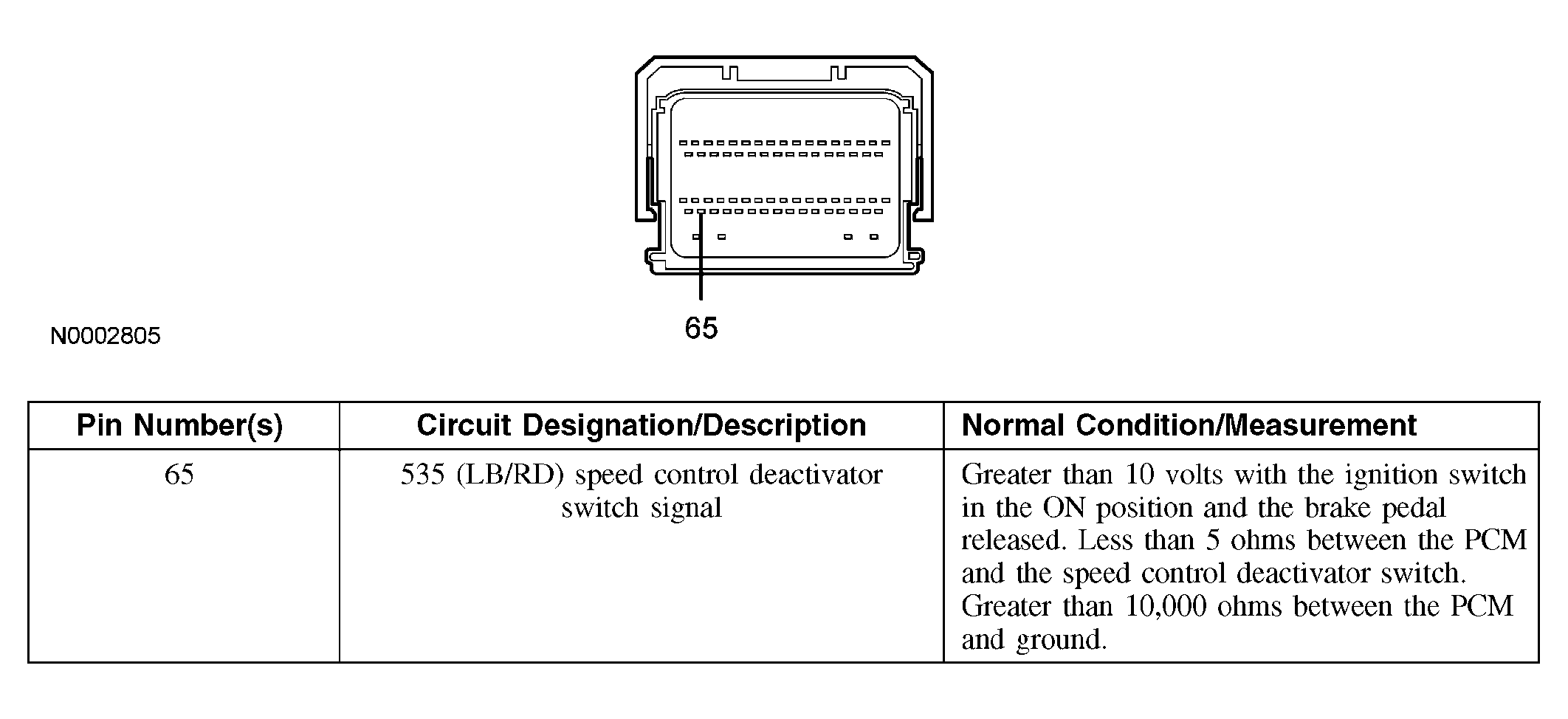

Fig 1: Identifying Powertrain Control Module (PCM) C175e
Courtesy of FORD MOTOR CO.
