Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

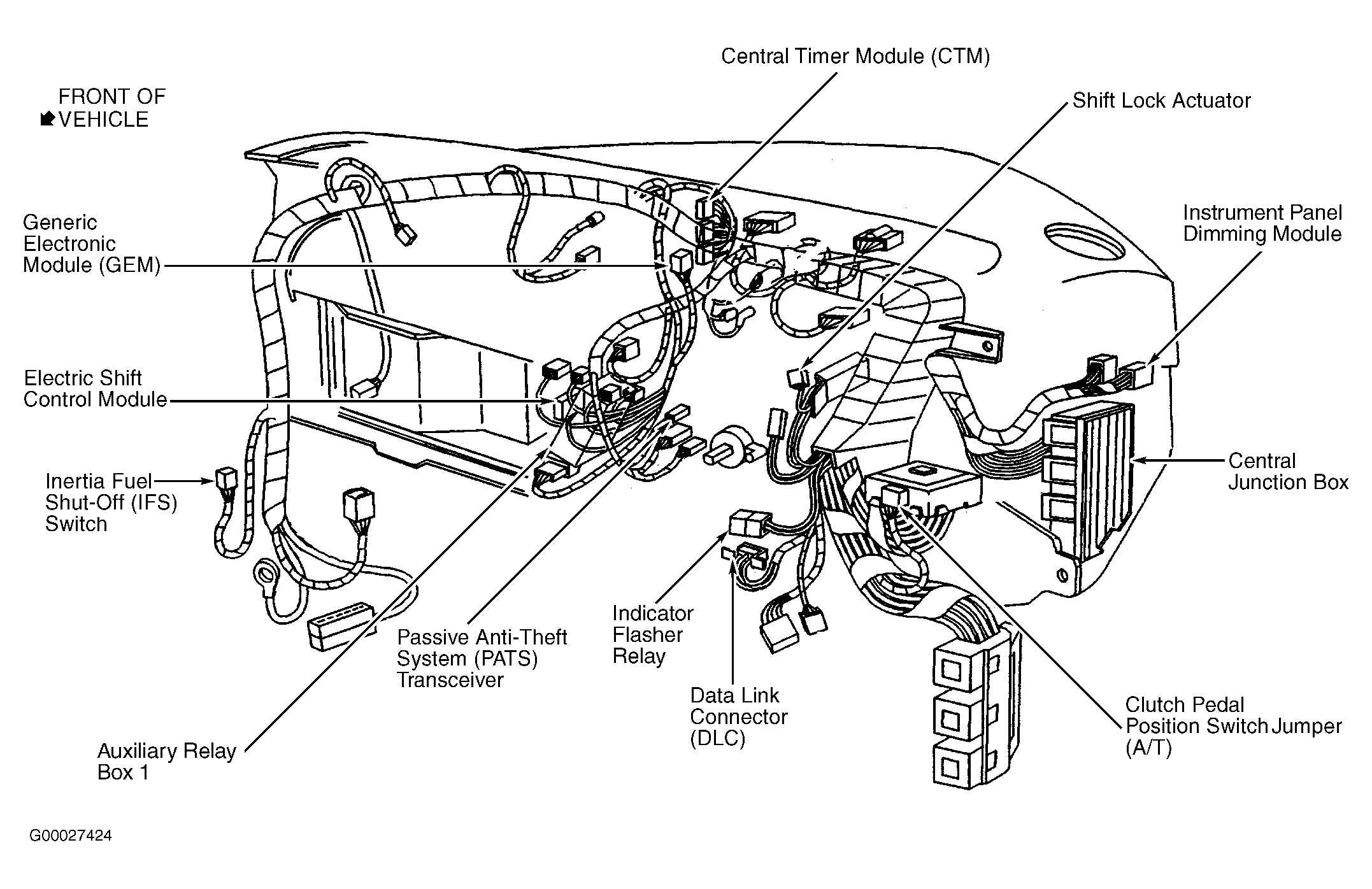

| Auxiliary Relay Box 1 | Behind dash, right of steering column. See Figure. |
| Battery Junction Box (2.3L) | Left rear of engine compartment. |

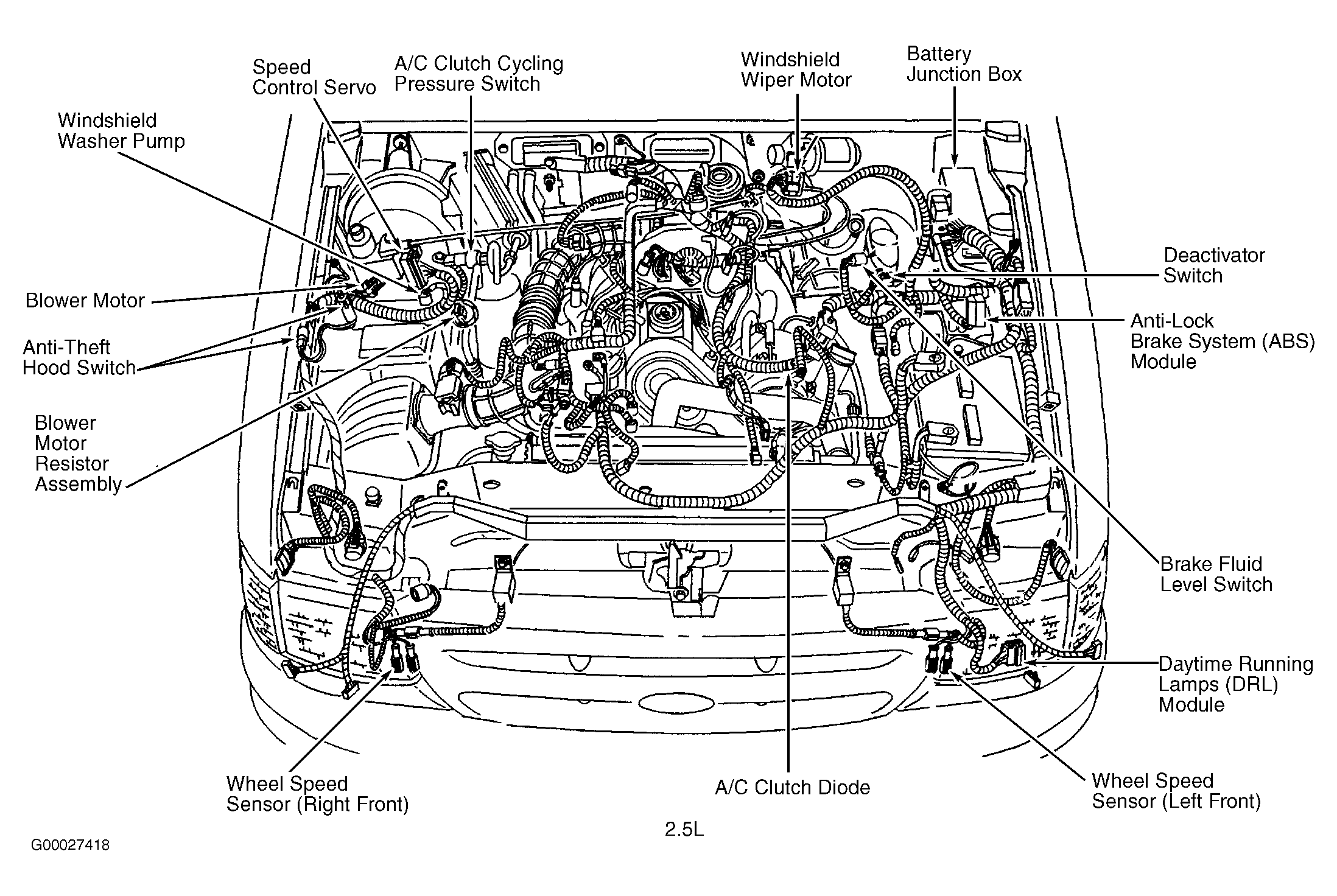

| Battery Junction Box (2.5L) | Left rear of engine compartment. See Figure. |

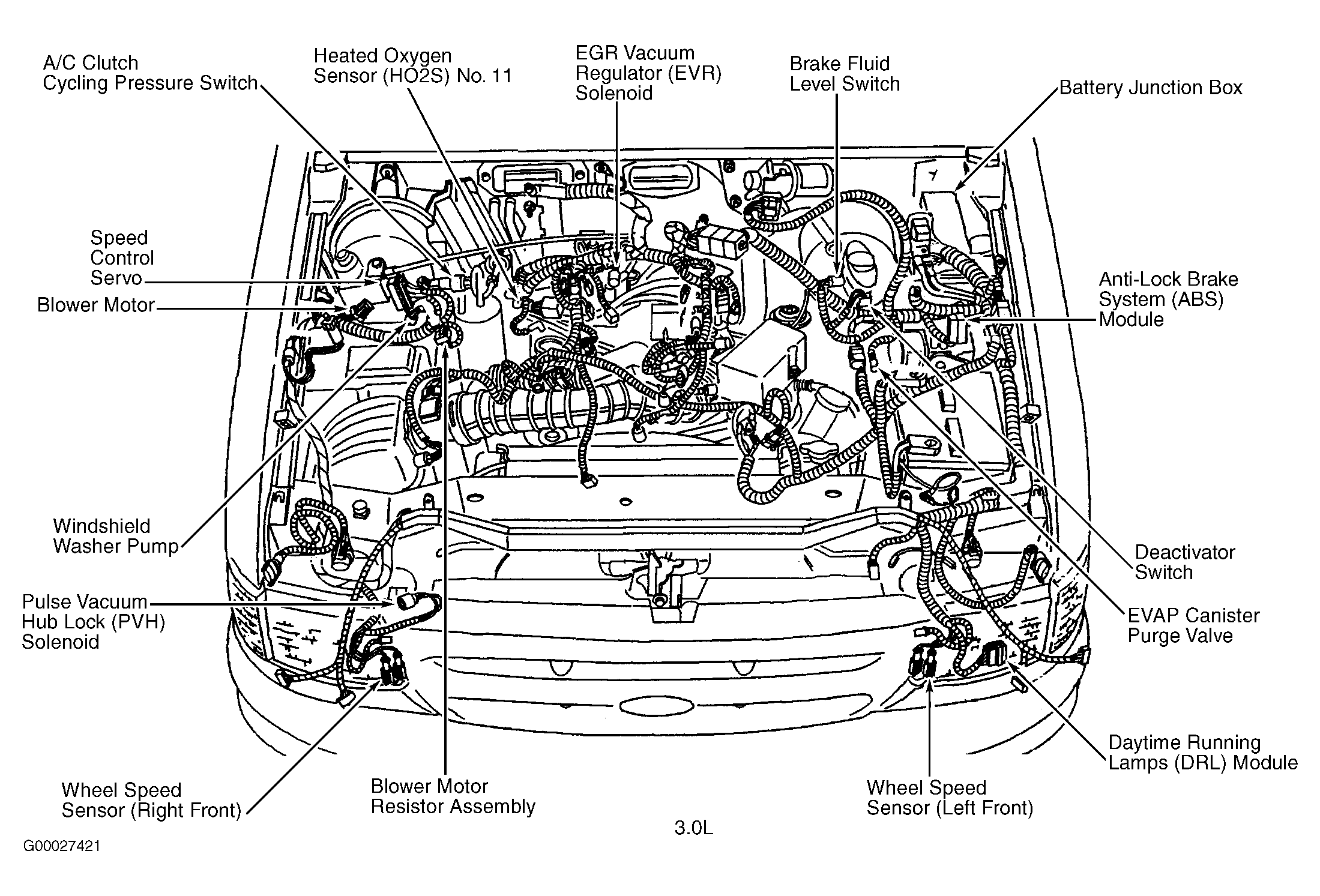

| Battery Junction Box (3.0L) | Left rear of engine compartment. See Figure. |

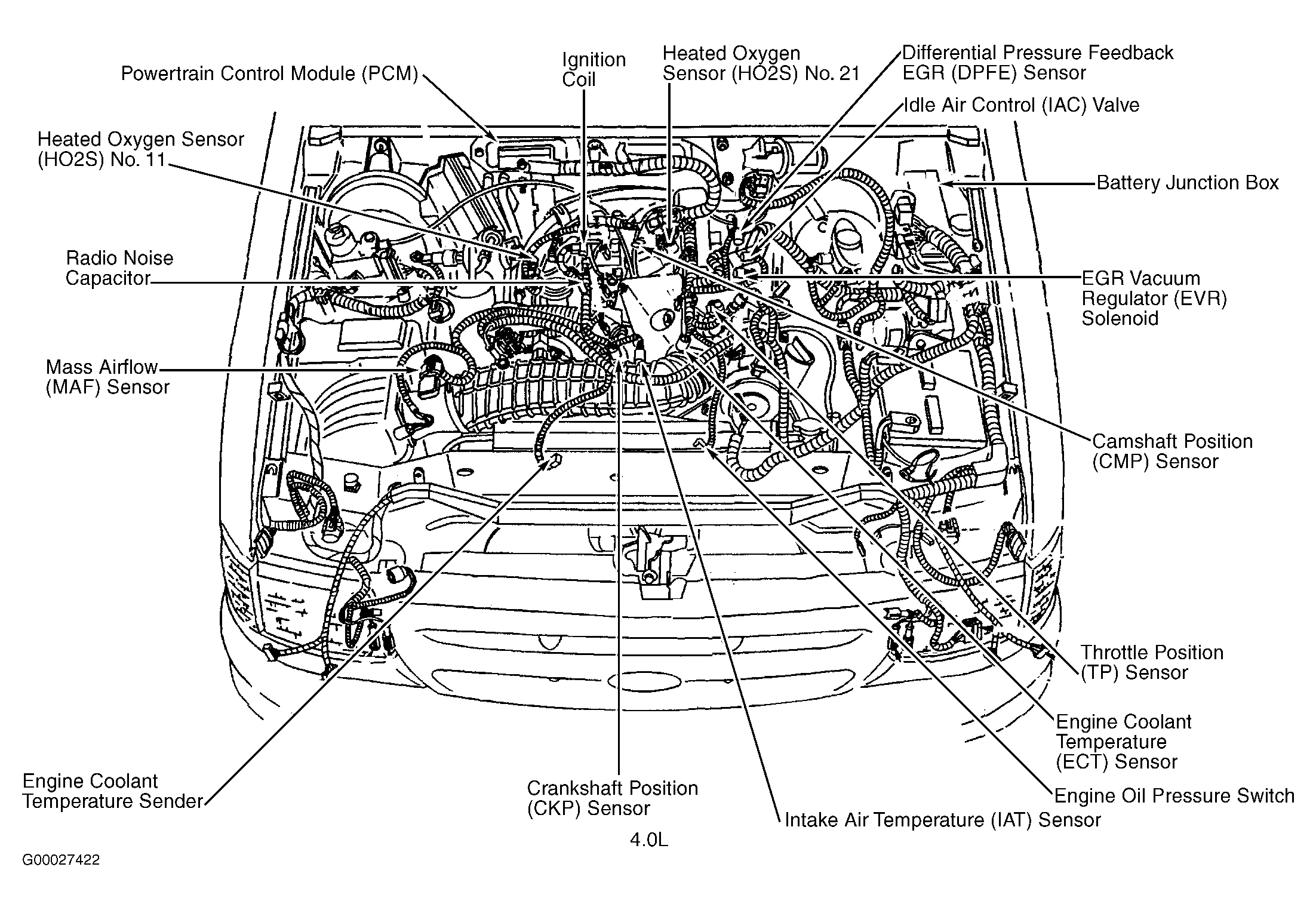

| Battery Junction Box (4.0L) | Left rear of engine compartment. See Figure. |
| Central Junction Box | Behind left side of dash. See Figure. |
| Fusible Link "A" | Attached to battery positive cable. |
| Fusible Link "B" | Attached to battery positive cable. |
