Symptom Chart

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the wiring diagrams for connector numbers stated in the pinpoint tests.

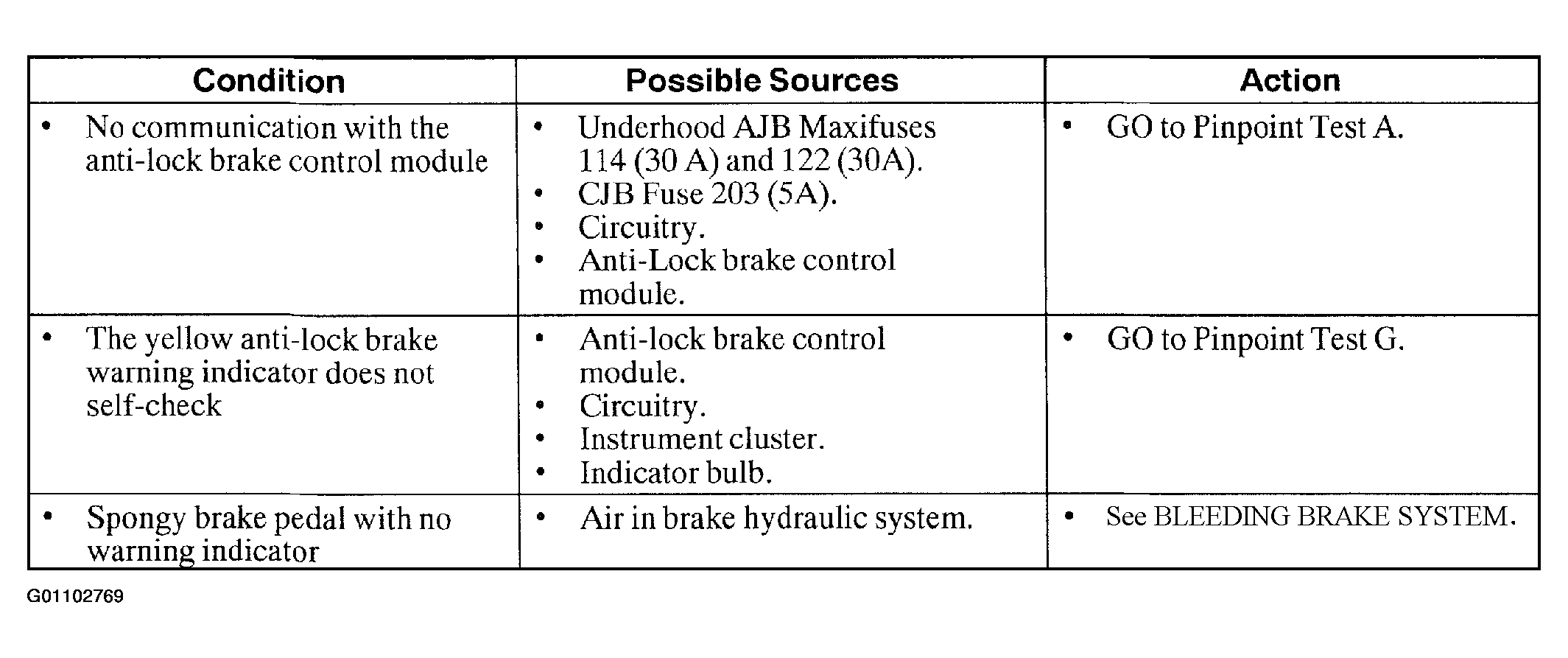

Fig 1: Symptom Chart

Courtesy of FORD MOTOR CO.
