Pinpoint Test N: The Auto-Lock Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

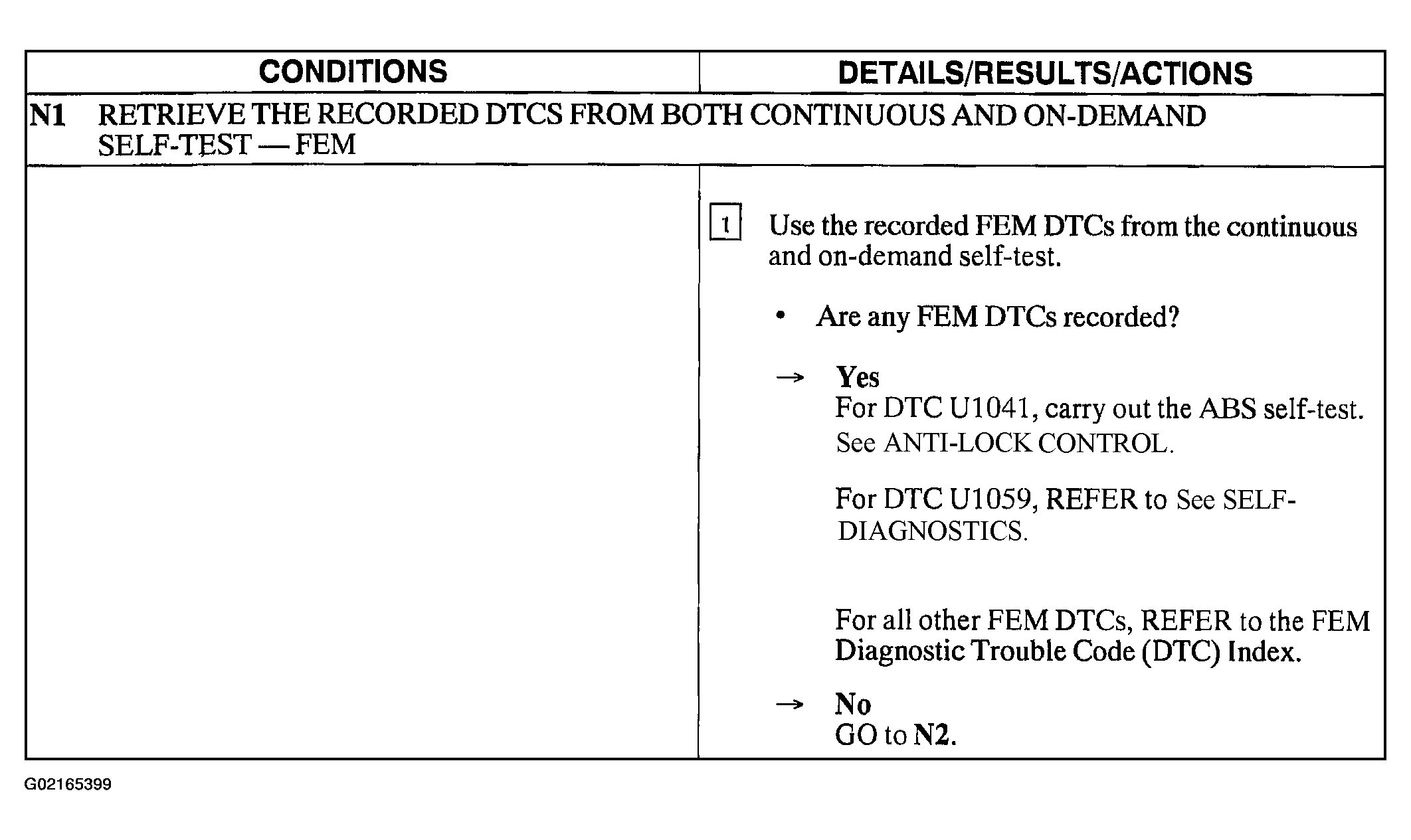

Fig 1: Pinpoint Test N: The Auto-Lock Does Not Operate Correctly (Step N1)

Courtesy of FORD MOTOR CO.

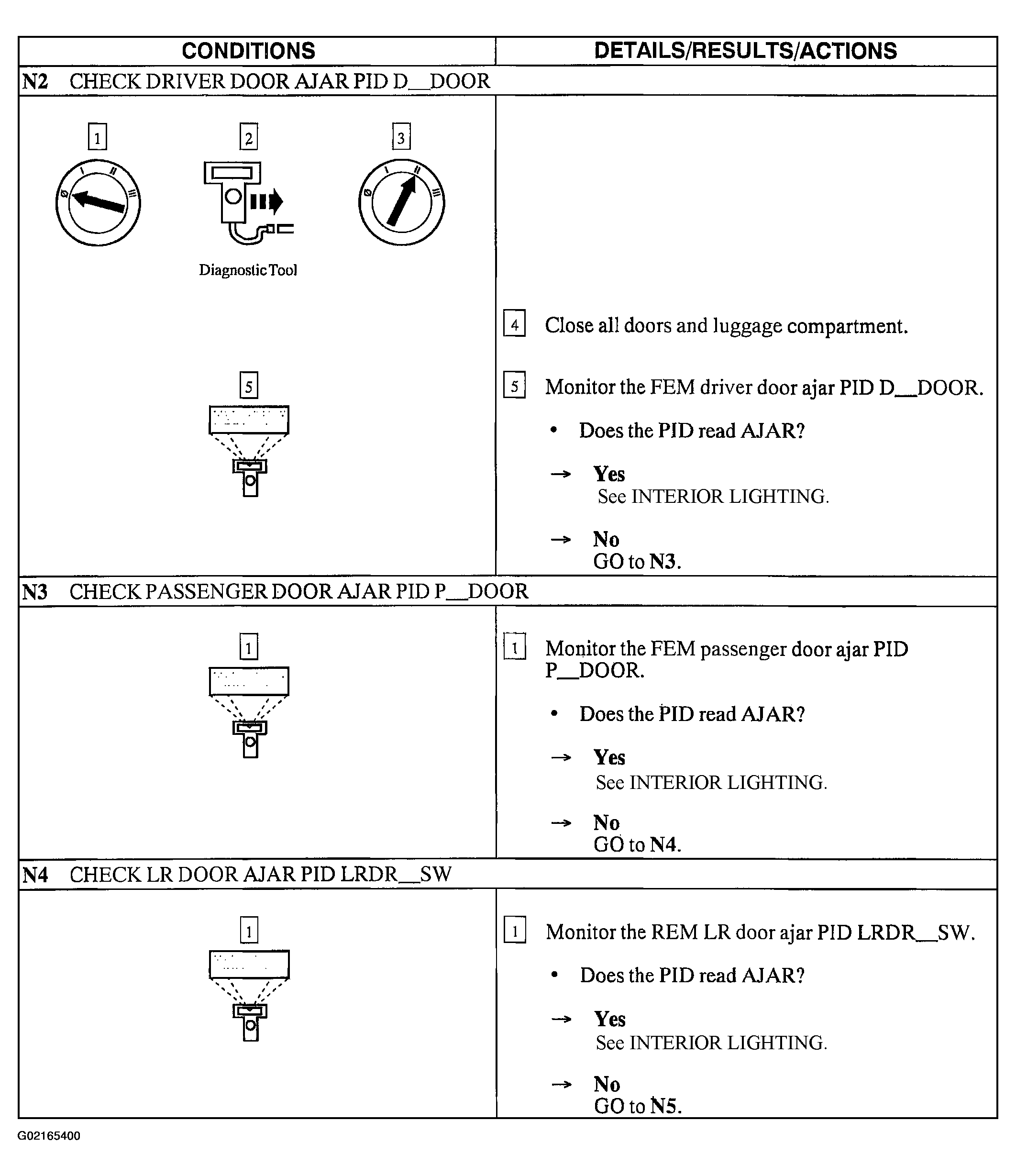

Fig 2: Pinpoint Test N: The Auto-Lock Does Not Operate Correctly (Steps N2-N4)

Courtesy of FORD MOTOR CO.

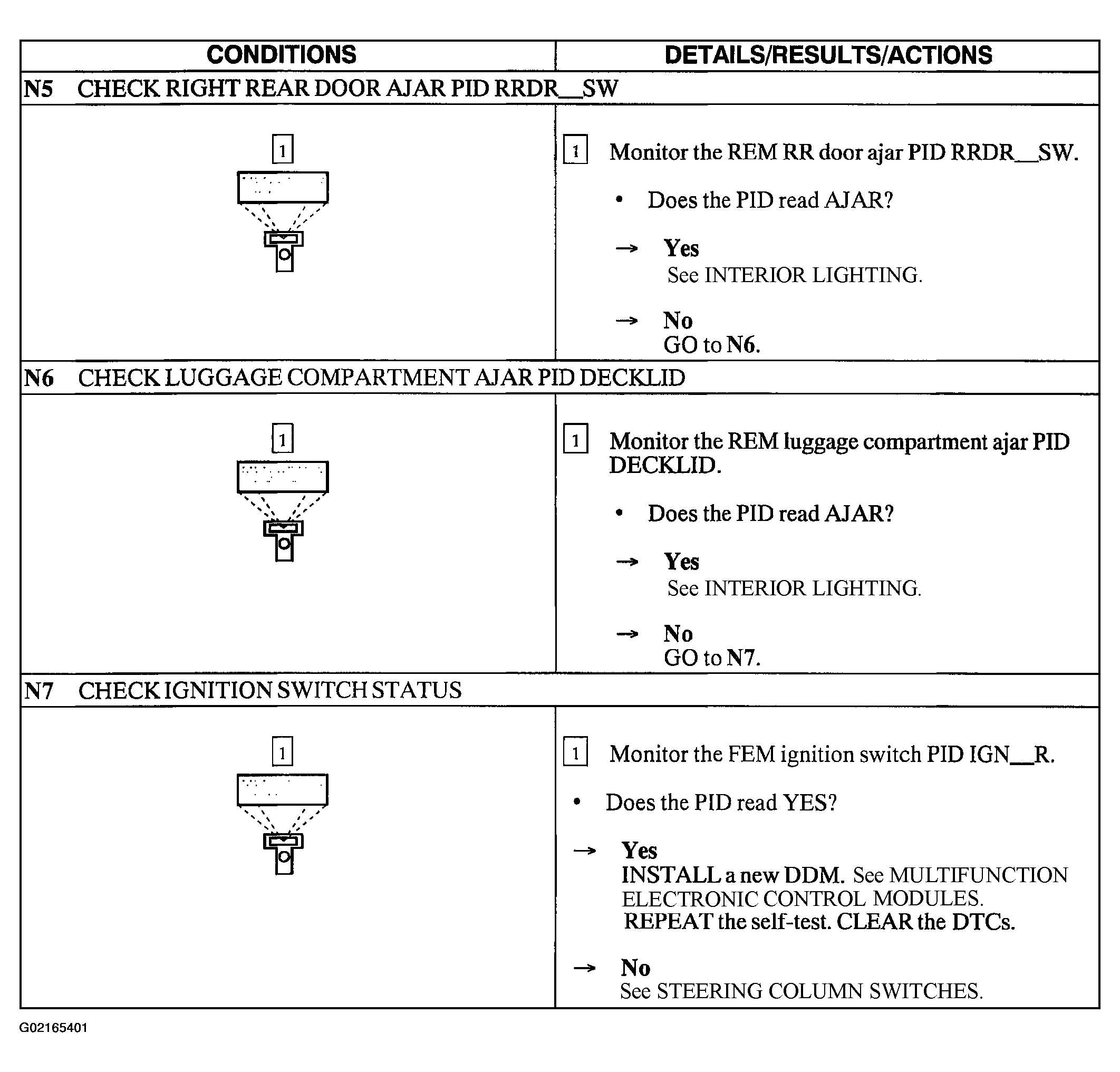

Fig 3: Pinpoint Test N: The Auto-Lock Does Not Operate Correctly (Steps N5-N7)

Courtesy of FORD MOTOR CO.
