Pinpoint Test O: The Smart Lock Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

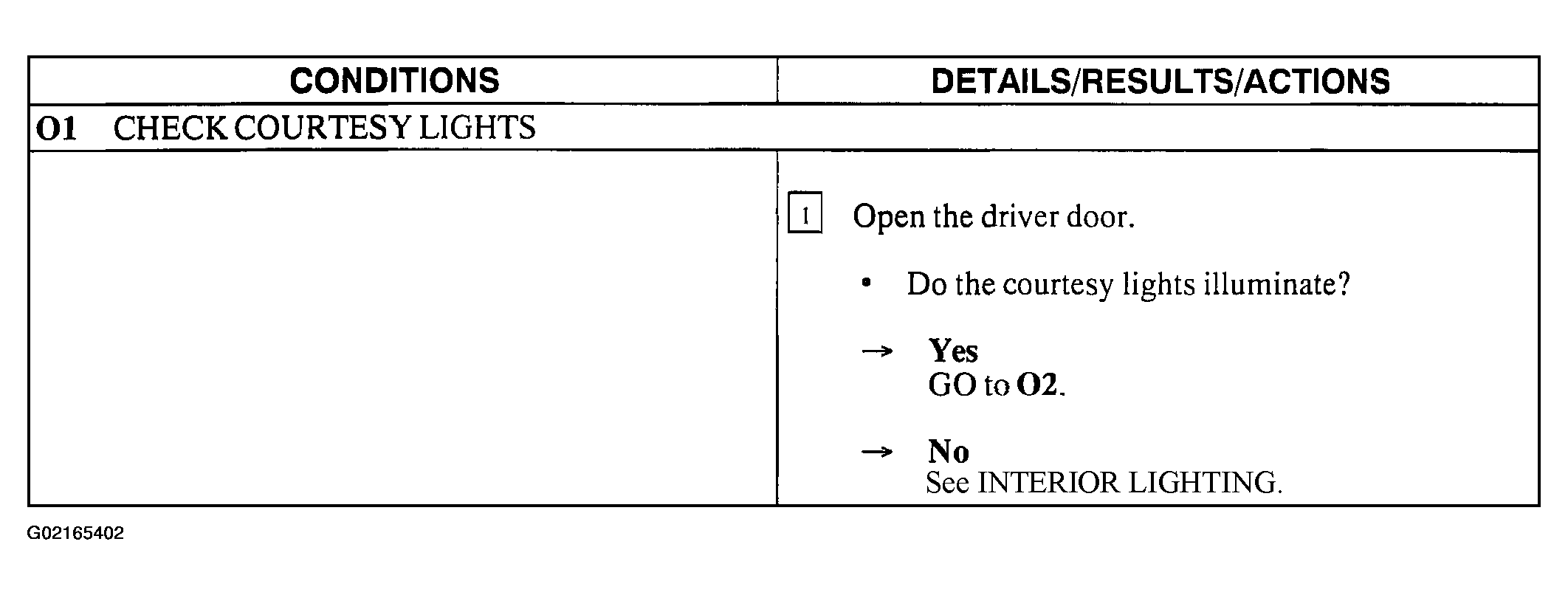

Fig 1: Pinpoint Test O: The Smart Lock Does Not Operate Correctly (Step O1)

Courtesy of FORD MOTOR CO.

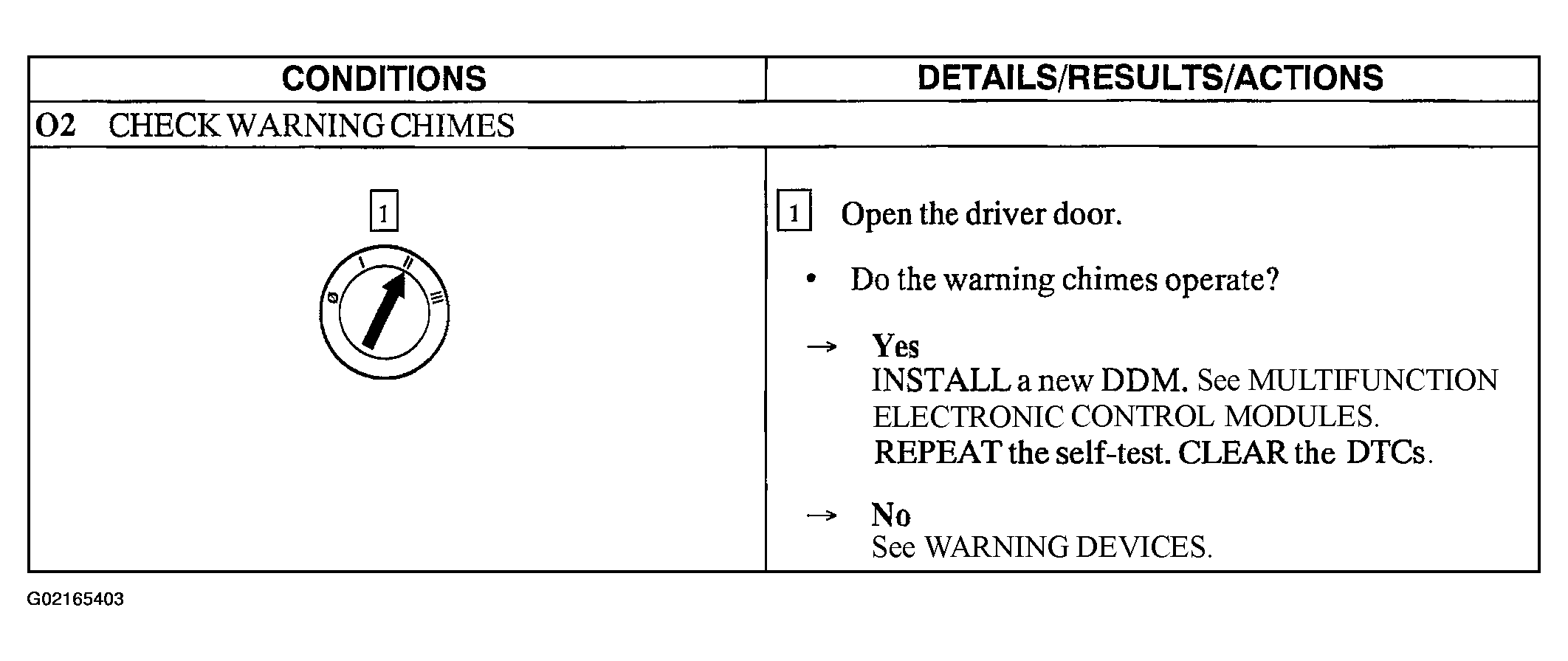

Fig 2: Pinpoint Test O: The Smart Lock Does Not Operate Correctly (Step O2)

Courtesy of FORD MOTOR CO.
