Ford
›
2001
›
Windstar Base
›
Repair and Diagnosis
›
Electrical
›
Fuses & Circuit Breakers
›
Identification
›
Central Junction Box
Central Junction Box
NOTE:
Central junction box is located under driver's side of instrument panel. See
Fig 1
.

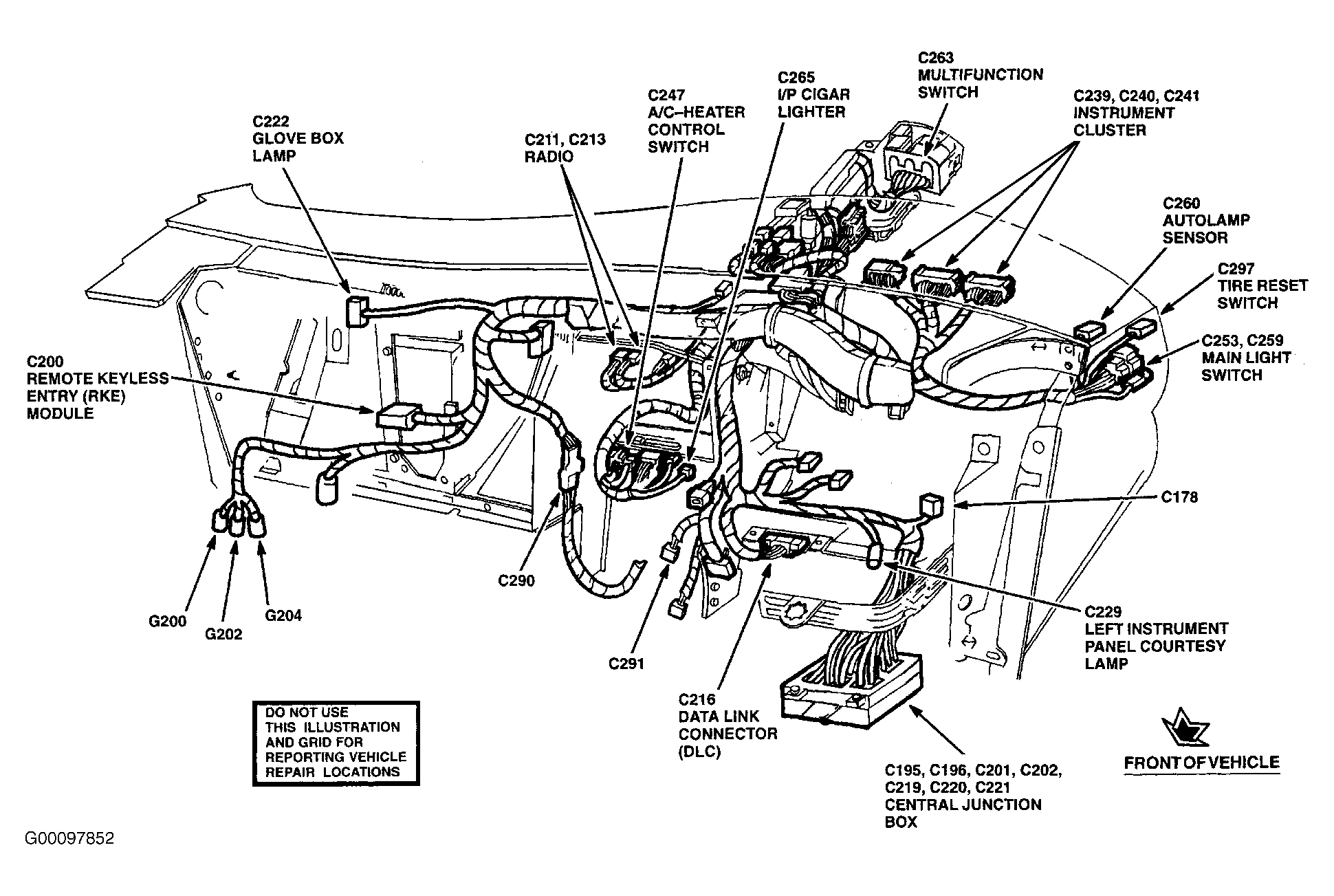

Fig 1: Locating Instrument Panel Electrical Components
Courtesy of FORD MOTOR CO.

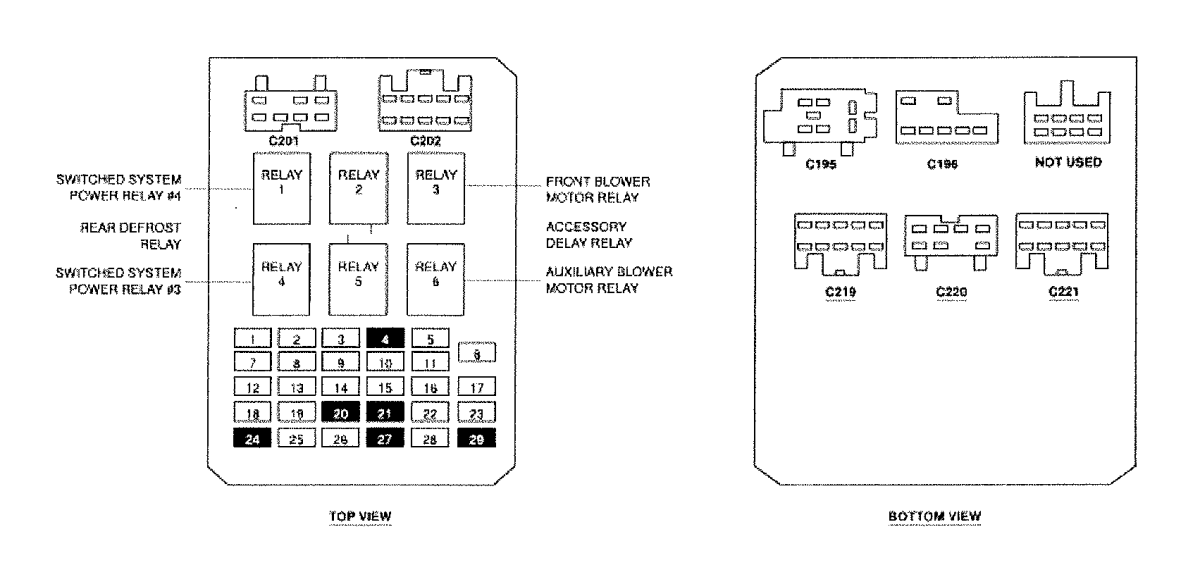

Fig 2: Identifying Central Junction Box Components
Courtesy of FORD MOTOR CO.

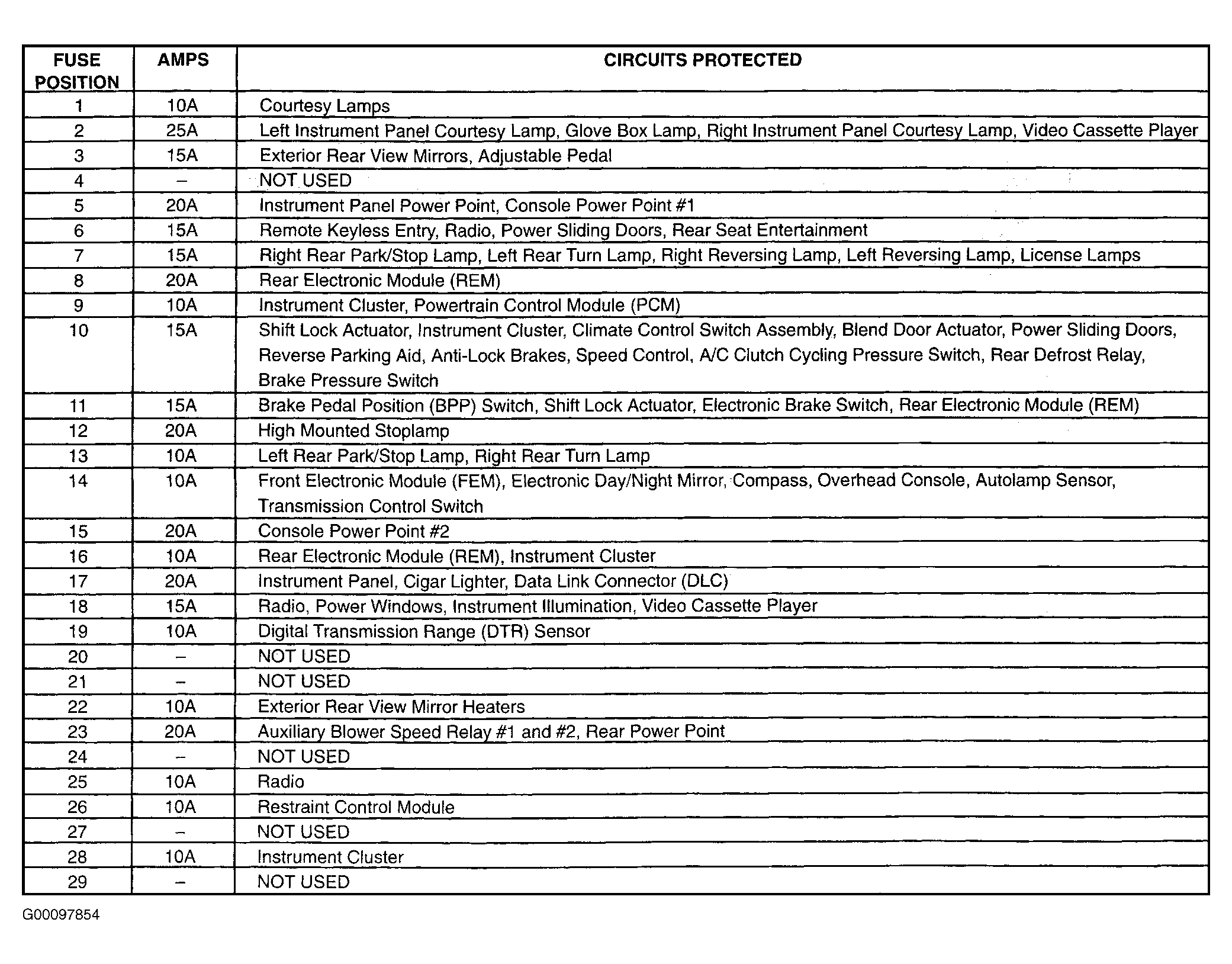

Fig 3: Central Junction Box Legend
Courtesy of FORD MOTOR CO.
