Section 2000 (OEM Connector End Views)
›
Connector Views
›
Anti-Lock Brake System Module Connector - C135
Anti-Lock Brake System Module Connector - C135
WARNING:
This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

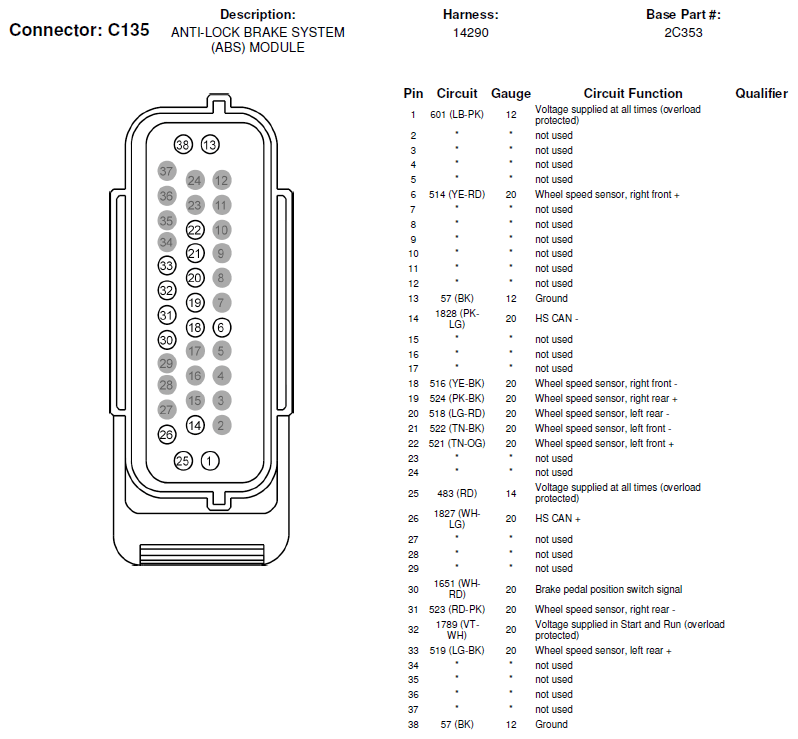

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
Courtesy of FORD MOTOR CO.
