Occupant Classification Sensor Connector - C3159

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

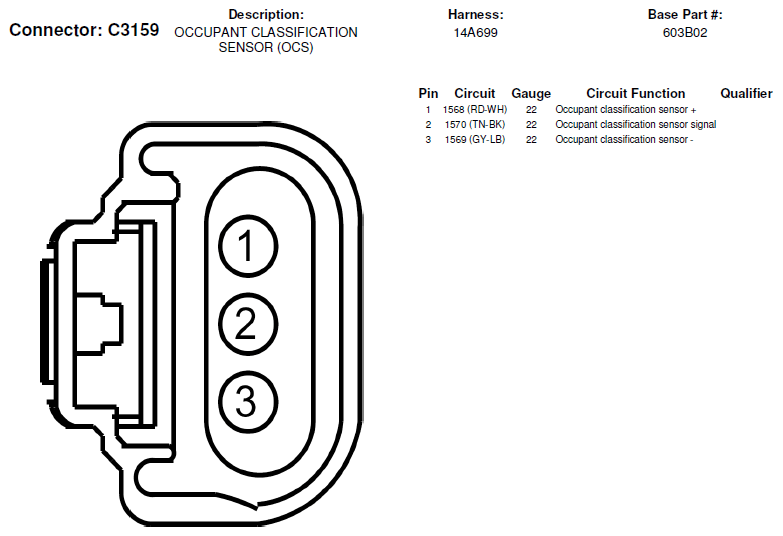

Fig 1: Occupant Classification Sensor Connector End View (C3159)
G06414372Courtesy of FORD MOTOR CO.
