Automatic Transmission
›
Diagnosis & Testing
›
Diagnostic Flow Chart
Diagnostic Flow Chart

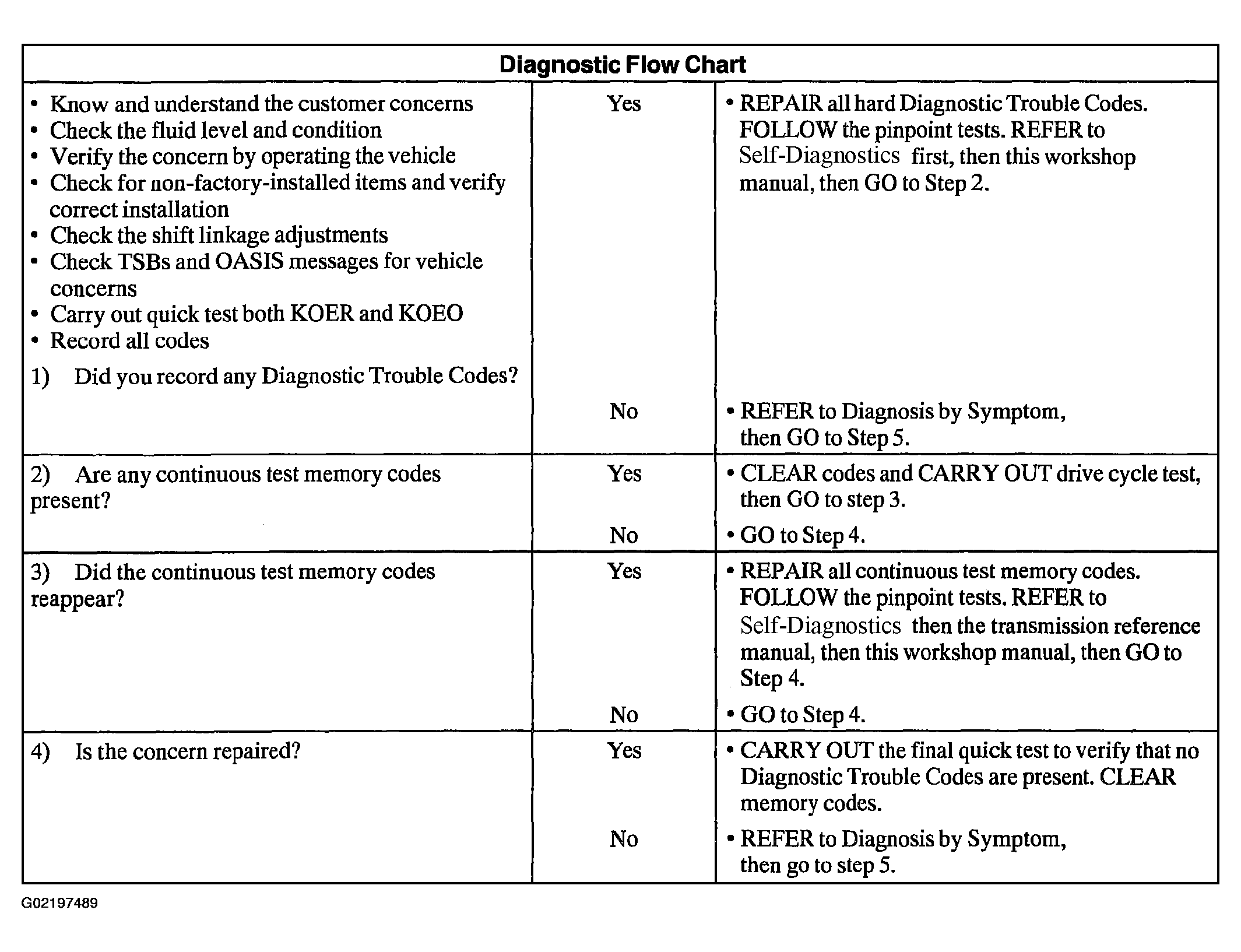

Fig 1: Diagnostic Flow Chart (1 Of 2)

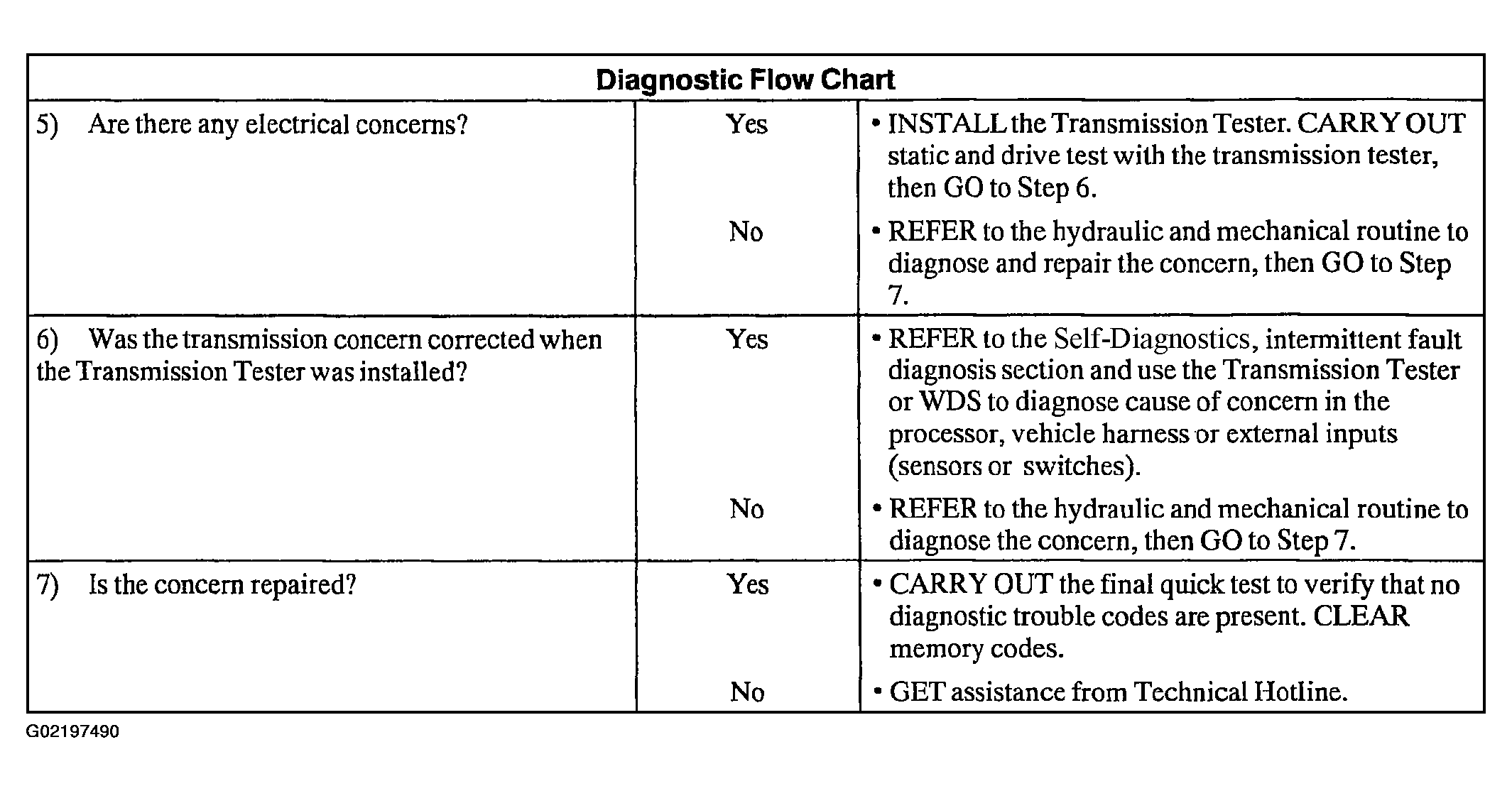

Fig 2: Diagnostic Flow Chart (2 Of 2)
