Overdrive Servo: Disassembly

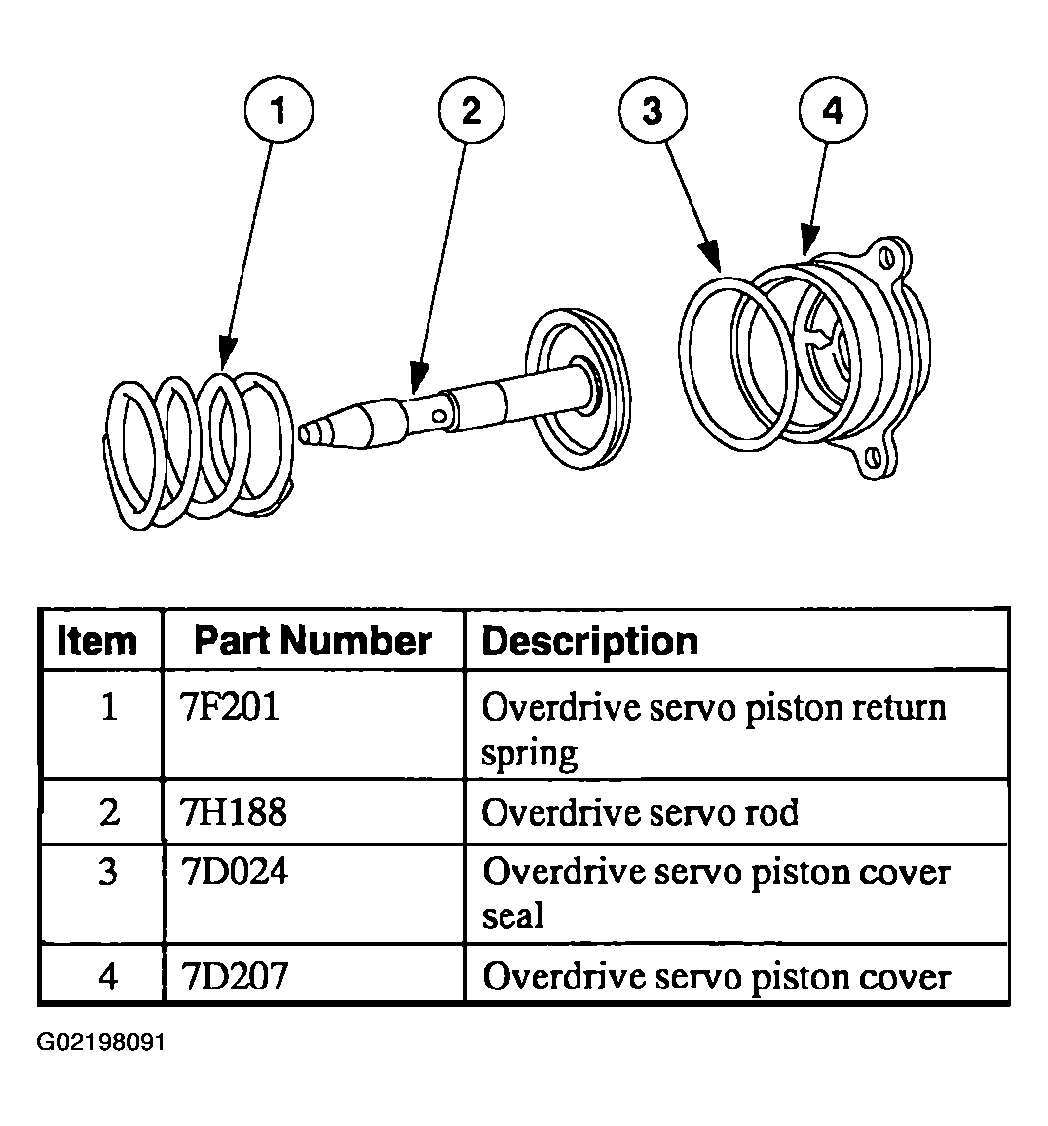

Fig 1: Exploded View Of Overdrive Servo Components

Remove the overdrive servo piston return spring.

Fig 2: Removing Overdrive Servo Piston Return Spring
Remove the overdrive servo piston and rod assembly.

Fig 3: Removing Overdrive Servo Piston & Rod Assembly
Remove the servo piston seal.

Fig 4: Removing Servo Piston Seal
